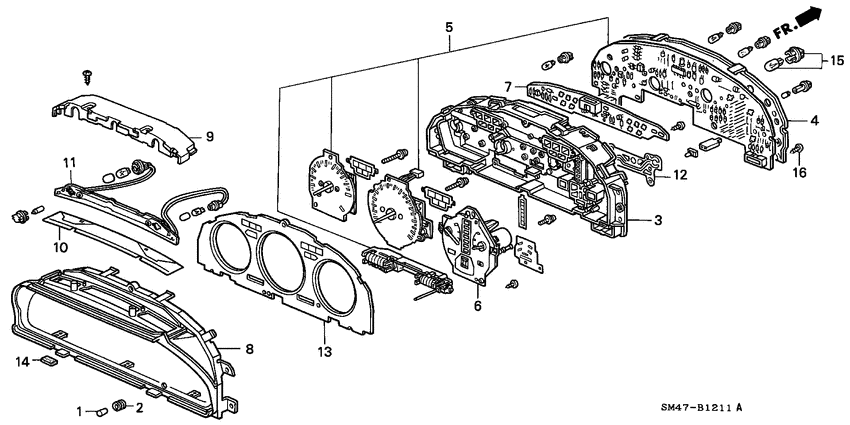

Speedometer component (DENSO) Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KG
- left-hand drive
- +
- catalyst
- +
- made in japan
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37106-SB2-004
Knob
|
37106-SB2-004 |
— | ||
|
2
|
2
37114-671-004 GrommetTRIP KNOB (DENSO) |
37114-671-004 |
US $3.01 |
||
|
3
|
3
78110-SM4-004 Case assy.METER |
78110-SM4-004 |
US $88.96 |
||
|
4
|
4
78116-SM4-004
Cover
|
78116-SM4-004 |
— | ||
|
5
|
5
78120-SM4-G02 PanelSPEEDOMETER ASSY. & TACHOMETER ASSY. & PRINT |
78120-SM4-G02 |
US $748.80 |
||
|
6
|
6
78130-SM4-004
Meter assy
|
78130-SM4-004 |
— | ||
|
7
|
7
78145-SM4-G02 PanelWARNING PRINT |
78145-SM4-G02 |
US $58.50 |
||
|
8
|
8
78155-SM4-004
Visor assy
|
78155-SM4-004 |
— | ||
|
9
|
9
78166-SM4-004
Case assy.
|
78166-SM4-004 |
— | ||
|
10
|
10
78167-SM4-004
Lens
|
78167-SM4-004 |
— | ||
|
11
|
11
78168-SM4-004
Panel
|
78168-SM4-004 |
— | ||
|
12
|
12
78169-SM4-004
Panel
|
78169-SM4-004 |
— | ||
|
13
|
13
78171-SM4-004
Visor assy
|
78171-SM4-004 |
— | ||
|
14
|
14
78175-SE3-004 GrommetDENSO |
78175-SE3-004 |
US $1.82 |
||
|
15
|
15
78180-SE3-004
Socket assy
|
78180-SE3-004 |
— | ||
|
16
|
16
90102-SB2-004 ScrewTAPPING, 4X14 (DENSO) |
90102-SB2-004 |
US $1.96 |
