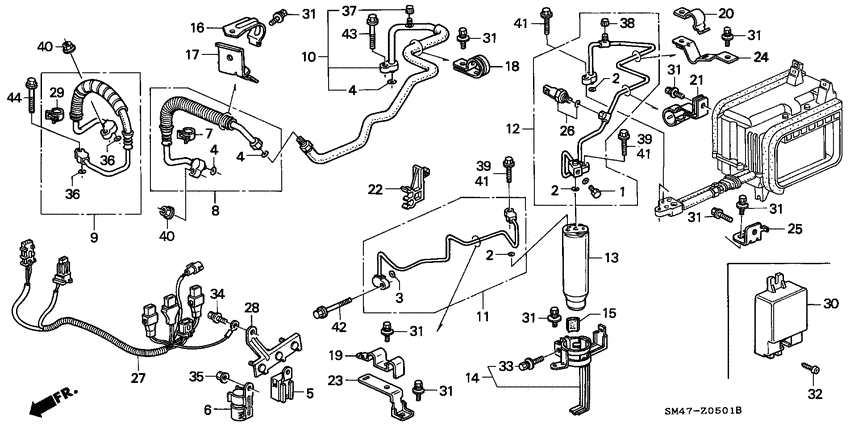

Air conditioner (HOSES/PIPES; RH) Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- abs
- +
- area code
- KE
- right-hand drive
- +
- auto cruise
- +
- made in japan
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38641-671-013
Valve
|
38641-671-013 |
— | ||
|
2
|
2
38646-SA5-003
O-ring
|
38646-SA5-003 |
— | ||
|
3
|
3
38647-692-660 O-ring1/2" |
38647-692-660 |
US $2.87 |
||
|
4
|
4
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
5
|
5
38725-SA5-003
Diode assy.
|
38725-SA5-003 |
— | ||
|
6
|
6
39798-SE0-003
Relay assy
|
39798-SE0-003 |
— | ||
| replacement | |||||
|
6
|
6
80490-SM4-A01
Relay assy
|
80490-SM4-A01 |
— | ||
|
7
|
7
53796-SF1-951
Clamp
|
53796-SF1-951 |
— | ||
|
8
|
8
80310-SM4-020 Hose comp.SUCTION |
80310-SM4-020 |
US $195.84 |
||
|
9
|
9
80315-SM4-003 Hose comp.DISCHARGE |
80315-SM4-003 |
US $209.92 |
||
|
10
|
10
80321-SM4-030 Pipe compSUCTION |
80321-SM4-030 |
US $113.92 |
||
|
11
|
11
80331-SM4-003 PipeCONDENSER 00000000 - 0C108948 |
80331-SM4-003 |
US $53.89 |
||
|
11
|
11
80331-SM4-013 PipeCONDENSER 0C108949 - |
80331-SM4-013 |
US $53.89 |
||
|
12
|
12
80341-SM4-013 Pipe compRECEIVER |
80341-SM4-013 |
US $99.84 |
||
|
13
|
13
80351-SM4-003 Receiver comp |
80351-SM4-003 |
US $134.40 |
||
|
14
|
14
80352-SM4-940
Bracket
|
80352-SM4-940 |
— | ||
|
15
|
15
80354-SM4-940
Protector
|
80354-SM4-940 |
— | ||
|
16
|
16
80361-SM4-000
Stay
|
80361-SM4-000 |
— | ||
|
17
|
17
80362-SM4-000
Clamp
|
80362-SM4-000 |
— | ||
|
18
|
18
80366-SM4-000 Clamp bSUCTION PIPE |
80366-SM4-000 |
US $2.52 |
||
|
19
|
19
80381-SM4-A00
Clamp
|
80381-SM4-A00 |
— | ||
|
20
|
20
80381-SM4-010 Clamp aRECEIVER PIPE |
80381-SM4-010 |
US $2.73 |
||
|
21
|
21
80382-SM4-000
Clamp b
|
80382-SM4-000 |
— | ||
|
22
|
22
80383-SM4-003
Clip c
|
80383-SM4-003 |
— | ||
|
23
|
23
80386-SM4-A00
Stay
|
80386-SM4-A00 |
— | ||
|
24
|
24
80386-SM4-010
Stay a
|
80386-SM4-010 |
— | ||
|
25
|
25
80388-SM4-000
Bracket
|
80388-SM4-000 |
— | ||
|
26
|
26
80440-SM4-003 SwitchDUAL PRESSURE (FUJI) |
80440-SM4-003 |
US $45.70 |
||
|
27
|
27
80460-SM4-Q03
Harness
|
80460-SM4-Q03 |
— | ||
|
28
|
28
80491-SM4-A00
Bracket
|
80491-SM4-A00 |
— | ||
|
29
|
29
80493-SM4-000
Clamp
|
80493-SM4-000 |
— | ||
|
31
|
31
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
33
|
33
90101-SM4-000 Bolt-washer6X20 |
90101-SM4-000 |
US $2.03 |
||
|
34
|
34
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
35
|
35
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
36
|
36
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
37
|
37
91639-SF1-013
Cap
|
91639-SF1-013 |
— | ||
|
38
|
38
91640-SD4-003
Cap
|
91640-SD4-003 |
— | ||
|
39
|
39
93403-060-250-8 Bolt-washer6X25 |
93403-060-250-8 |
US $0.74 |
||
|
40
|
40
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
41
|
41
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
42
|
42
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
|
43
|
43
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
44
|
44
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
