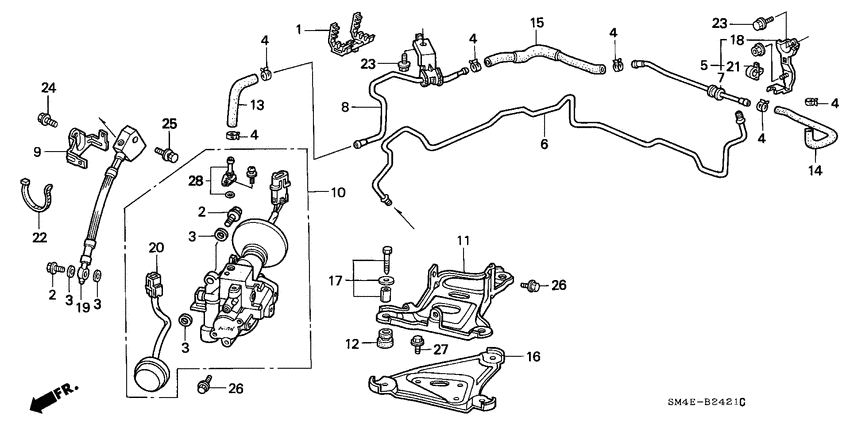

Abs accumulator (RH) Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0I
- abs
- +
- area code
- KE
- right-hand drive
- +
- catalyst
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46396-SM4-A52
Clip c
|
46396-SM4-A52 |
— | ||
|
2
|
2
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
3
|
3
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
4
|
4
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.62 |
||
|
5
|
5
57086-SM4-950
Pipe comp
|
57086-SM4-950 |
— | ||
|
6
|
6
57090-SM4-981 Pipe compACCUMULATOR |
57090-SM4-981 |
US $12.18 |
||
|
7
|
7
57091-SM4-952
Pipe a
|
57091-SM4-952 |
— | ||
|
8
|
8
57092-SM4-982
Pipe comp
|
57092-SM4-982 |
— | ||
|
9
|
9
57175-SM4-951
Bracket
|
57175-SM4-951 |
— | ||
|
10
|
10
57310-SM4-A51
Pump assy.
|
57310-SM4-A51 |
— | ||
|
11
|
11
57355-SM4-A52
Bracket
|
57355-SM4-A52 |
— | ||
|
12
|
12
57358-SB0-800 Mount aPUMP BRACKET |
57358-SB0-800 |
US $2.94 |
||
|
13
|
13
57370-SM4-A50
Hose
|
57370-SM4-A50 |
— | ||
|
14
|
14
57370-SM4-955
Hose comp.
|
57370-SM4-955 |
— | ||
|
15
|
15
57371-SM4-953
Hose comp. b
|
57371-SM4-953 |
— | ||
|
16
|
16
57375-SM4-A51
Bracket
|
57375-SM4-A51 |
— | ||
|
17
|
17
57377-SM4-950
Mount assy
|
57377-SM4-950 |
— | ||
|
18
|
18
57379-SM4-951
Bracket
|
57379-SM4-951 |
— | ||
|
19
|
19
57380-SM4-A51
Hose
|
57380-SM4-A51 |
— | ||
|
20
|
20
57390-SP0-013
Switch assy
|
57390-SP0-013 |
— | ||
|
21
|
21
90687-SD2-003 ClipWIRE HARNESS |
90687-SD2-003 |
US $4.34 |
||
|
22
|
22
91560-SE0-003 Band aHARNESS (NATURAL) |
91560-SE0-003 |
from US $2.24 |
||
|
23
|
23
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
24
|
24
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
25
|
25
93403-080-320-8 Bolt-washer8X32 |
93403-080-320-8 |
from US $0.81 |
||
|
26
|
26
95700-060-120-8
Bolt
|
95700-060-120-8 |
— | ||
| replacement | |||||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
27
|
27
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
28
|
28
57016-SL5-A50
Pump set
|
57016-SL5-A50 |
— | ||
