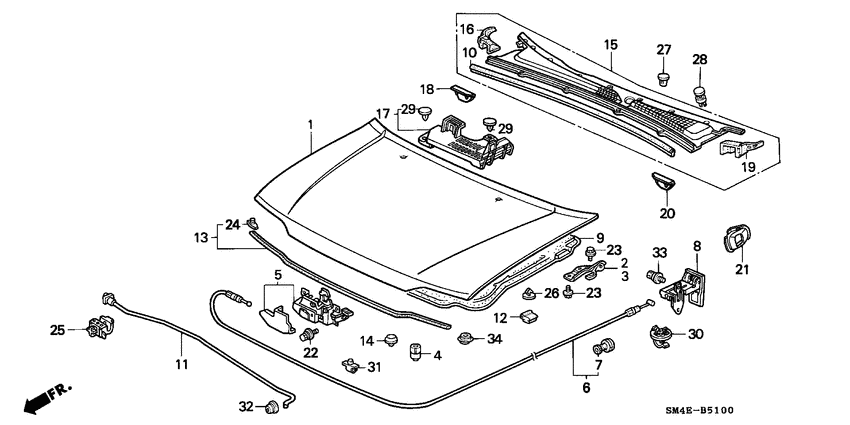

Hood Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- catalyst
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60100-SM4-020ZZ
Hood comp.
|
60100-SM4-020ZZ |
— | ||
|
2
|
2
60120-SM4-000ZZ
Hinge comp
|
60120-SM4-000ZZ |
— | ||
|
3
|
3
60170-SM4-000ZZ
Hinge comp
|
60170-SM4-000ZZ |
— | ||
|
4
|
4
63511-SF0-003
Cushion
|
63511-SF0-003 |
— | ||
| replacement | |||||
|
4
|
4
74144-SE0-000 CushionHOOD |
74144-SE0-000 |
US $3.42 |
||
|
5
|
5
74120-SM4-003
Lock assy
|
74120-SM4-003 |
— | ||
|
6
|
6
74130-SM4-010
Wire assy.
|
74130-SM4-010 |
— | ||
|
7
|
7
74134-SM4-000 GrommetHOOD WIRE |
74134-SM4-000 |
US $1.82 |
||
|
8
|
8
74135-SM4-003ZA Lever assy.HOOD WIRE *NH167L* |
74135-SM4-003ZA |
US $9.66 |
||
|
8
|
8
74135-SM4-003ZB Lever assy.HOOD WIRE *NH89L* |
74135-SM4-003ZB |
US $9.66 |
||
|
9
|
9
74141-SM4-901
Insulator
|
74141-SM4-901 |
— | ||
|
10
|
10
74143-SM4-000
Rubber
|
74143-SM4-000 |
— | ||
|
11
|
11
74145-SM4-000
Stay
|
74145-SM4-000 |
— | ||
|
12
|
12
74146-SM4-000
Cushion
|
74146-SM4-000 |
— | ||
|
13
|
13
74148-SM4-000
Rubber
|
74148-SM4-000 |
— | ||
|
14
|
14
74177-SD4-000 Cushion aHOOD |
74177-SD4-000 |
US $5.18 |
||
|
15
|
15
74200-SM4-010
Cowl top assy.
|
74200-SM4-010 |
— | ||
|
16
|
16
74211-SM4-000
Cover
|
74211-SM4-000 |
— | ||
|
17
|
17
74221-SM4-010
Screen
|
74221-SM4-010 |
— | ||
|
18
|
18
74234-SM4-E00
Valve
|
74234-SM4-E00 |
— | ||
|
19
|
19
74261-SM4-000
Cover
|
74261-SM4-000 |
— | ||
|
20
|
20
74284-SM4-E00
Valve
|
74284-SM4-E00 |
— | ||
|
21
|
21
74825-SM4-E01
Plug
|
74825-SM4-E01 |
— | ||
|
22
|
22
90103-SL4-000 Bolt-washer6X16 |
90103-SL4-000 |
US $1.75 |
||
|
23
|
23
90106-SE1-000 Bolt-washer6X15 |
90106-SE1-000 |
US $1.89 |
||
|
24
|
24
90107-SM4-003 ClipHOOD SEAL |
90107-SM4-003 |
US $1.40 |
||
|
25
|
25
90677-SE0-003 HolderROD |
90677-SE0-003 |
US $2.77 |
||
|
26
|
26
91501-SF1-003
Clip
|
91501-SF1-003 |
— | ||
| replacement | |||||
|
26
|
26
90700-SB2-003 ClipHOOD INSULATOR |
90700-SB2-003 |
US $2.60 |
||
|
27
|
27
91501-SM4-003 ClipANCHOR |
91501-SM4-003 |
from US $1.69 |
||
|
28
|
28
91508-SM4-003 ClipCOWL TOP |
91508-SM4-003 |
from US $3.01 |
||
|
29
|
29
91515-SM4-003 ClipANCHOR |
91515-SM4-003 |
US $1.40 |
||
|
30
|
30
91522-SM4-003 ClipTUBE & INSULATOR |
91522-SM4-003 |
US $1.75 |
||
|
31
|
31
91558-SE3-003 ClipHOOD WIRE |
91558-SE3-003 |
US $4 |
||
|
32
|
32
91604-SD2-013 GrommetHOOD STAY |
91604-SD2-013 |
from US $1 |
||
|
33
|
33
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
34
|
34
95550-25000 PlugBLIND, 25MM |
95550-25000 |
US $2.07 |
||
