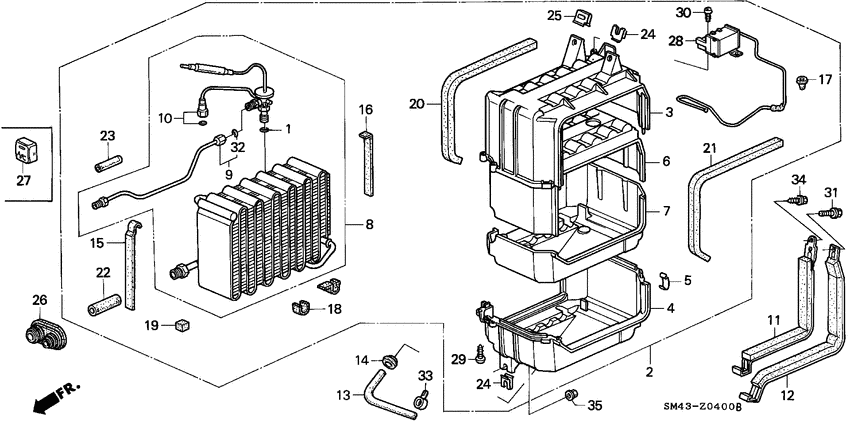

Cooling unit Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38647-692-660 O-ring1/2" |
38647-692-660 |
US $2.87 |
||
|
2
|
2
80200-SM1-A10
Cooling unit
|
80200-SM1-A10 |
— | ||
|
3
|
3
80201-SM4-A01
Case
|
80201-SM4-A01 |
— | ||
|
4
|
4
80202-SM4-A02
Case
|
80202-SM4-A02 |
— | ||
|
5
|
5
80203-SF1-010 ClampEVAPORATOR CASE |
80203-SF1-010 |
US $2.03 |
||
|
6
|
6
80205-SM4-A01
Insulator
|
80205-SM4-A01 |
— | ||
|
7
|
7
80206-SM4-A01
Insulator
|
80206-SM4-A01 |
— | ||
|
8
|
8
80210-SM1-A12
Evaporator sub assy.
|
80210-SM1-A12 |
— | ||
|
9
|
9
80212-SM1-A12
Pipe
|
80212-SM1-A12 |
— | ||
|
10
|
10
80220-SM4-A01
Valve assy.
|
80220-SM4-A01 |
— | ||
|
11
|
11
80261-SM4-000
Band
|
80261-SM4-000 |
— | ||
|
12
|
12
80265-SM4-000
Band b
|
80265-SM4-000 |
— | ||
|
13
|
13
80271-SM1-A11
Hose
|
80271-SM1-A11 |
— | ||
|
14
|
14
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
15
|
15
80281-SM1-A10
Seal a
|
80281-SM1-A10 |
— | ||
|
16
|
16
80282-SM1-A10
Seal b
|
80282-SM1-A10 |
— | ||
|
17
|
17
80282-SM4-A00
Grommet
|
80282-SM4-A00 |
— | ||
|
18
|
18
80284-SM1-A10
Seal d
|
80284-SM1-A10 |
— | ||
|
19
|
19
80286-SF1-A10
Seal c
|
80286-SF1-A10 |
— | ||
|
20
|
20
80286-SM4-A00
Seal
|
80286-SM4-A00 |
— | ||
|
21
|
21
80287-SM4-A00
Seal
|
80287-SM4-A00 |
— | ||
|
22
|
22
80288-SM1-A10
Insulator
|
80288-SM1-A10 |
— | ||
|
23
|
23
80289-SM1-A10
Insulator
|
80289-SM1-A10 |
— | ||
|
24
|
24
80293-SM4-A00
Plate
|
80293-SM4-A00 |
— | ||
|
25
|
25
80294-SM4-A00
Plate
|
80294-SM4-A00 |
— | ||
|
26
|
26
80380-SF4-000
Grommet
|
80380-SF4-000 |
— | ||
|
27
|
27
80411-SM4-901
Knob
|
80411-SM4-901 |
— | ||
|
28
|
28
80430-SM1-A11
Thermostat
|
80430-SM1-A11 |
— | ||
|
29
|
29
90102-SA4-000
Screw
|
90102-SA4-000 |
— | ||
| replacement | |||||
|
29
|
29
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
30
|
30
90130-693-000 ScrewTAPPING, 4X10 |
90130-693-000 |
from US $2.10 |
||
|
32
|
32
91301-SM4-A00 O-ring8MM |
91301-SM4-A00 |
US $1.75 |
||
|
33
|
33
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
34
|
34
93904-46280 ScrewTAPPING, 6X16 |
93904-46280 |
US $0.44 |
||
|
35
|
35
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
