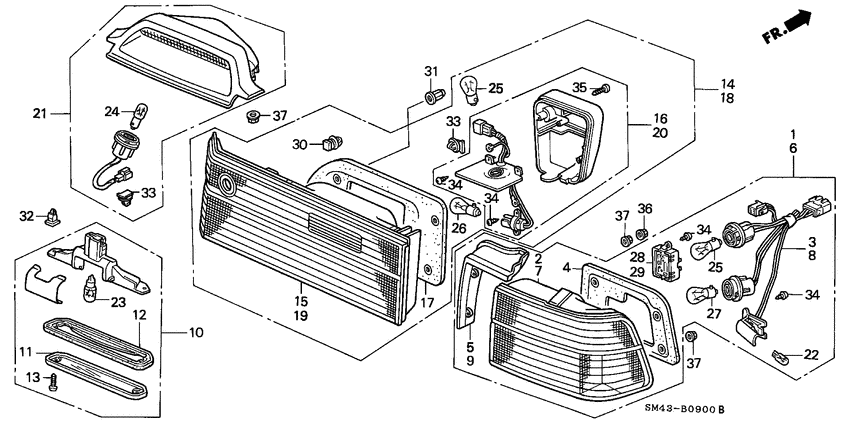

Taillight (1) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33500-SM4-A01
Taillight assy.
|
33500-SM4-A01 |
— | ||
|
2
|
2
33501-SM4-A01
Housing comp
|
33501-SM4-A01 |
— | ||
|
3
|
3
33502-SM4-A01
Cord comp
|
33502-SM4-A01 |
— | ||
|
4
|
4
33503-SM4-003
Gasket
|
33503-SM4-003 |
— | ||
|
5
|
5
33504-SM4-A01
Bezel
|
33504-SM4-A01 |
— | ||
|
6
|
6
33550-SM4-A01
Taillight assy.
|
33550-SM4-A01 |
— | ||
|
7
|
7
33551-SM4-A01
Housing comp
|
33551-SM4-A01 |
— | ||
|
8
|
8
33552-SM4-A01
Cord comp
|
33552-SM4-A01 |
— | ||
|
9
|
9
33554-SM4-A01
Bezel
|
33554-SM4-A01 |
— | ||
|
10
|
10
34100-SM4-003 Light assyLICENSE |
34100-SM4-003 |
US $32.13 |
||
|
11
|
11
34101-SM4-003 Lens |
34101-SM4-003 |
US $7.84 |
||
|
12
|
12
34103-SM4-003
Seal
|
34103-SM4-003 |
— | ||
|
13
|
13
34104-SE3-A01
Screw
|
34104-SE3-A01 |
— | ||
|
14
|
14
34150-SM4-A01 Light assyR. LID |
34150-SM4-A01 |
US $221.44 |
||
|
15
|
15
34151-SM4-A01 Housing compR. |
34151-SM4-A01 |
US $190.72 |
||
|
16
|
16
34152-SM4-003
Cover & cord comp.
|
34152-SM4-003 |
— | ||
|
17
|
17
34153-SM4-003
Gasket
|
34153-SM4-003 |
— | ||
|
18
|
18
34155-SM4-A01 Light assyL. LID |
34155-SM4-A01 |
US $221.44 |
||
|
19
|
19
34156-SM4-A01 Housing compL. |
34156-SM4-A01 |
US $190.72 |
||
|
20
|
20
34157-SM4-003
Cover & cord comp.
|
34157-SM4-003 |
— | ||
|
21
|
21
34270-SM4-A01
Light assy
|
34270-SM4-A01 |
— | ||
|
22
|
22
34901-SB0-671 Bulb12V 5W 3CP) (STANLEY |
34901-SB0-671 |
from US $1.82 |
||
|
23
|
23
34901-SE3-003 Bulb12V 8W |
34901-SE3-003 |
US $2.10 |
||
|
24
|
24
34903-SF1-A01 Bulb12V 45CP |
34903-SF1-A01 |
from US $4.66 |
||
|
25
|
25
34903-634-671 Bulb12V27W |
34903-634-671 |
US $2.17 |
||
|
26
|
26
34906-SA5-671 BulbSTOP & TAILLIGHT (12V 27/7W) |
34906-SA5-671 |
US $4.74 |
||
| replacement | |||||
|
26
|
26
34906-SA0-003 Bulb12V 27W/5W |
34906-SA0-003 |
US $3.26 |
||
|
27
|
27
34906-341-671
Bulb
|
34906-341-671 |
— | ||
| replacement | |||||
|
27
|
27
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
28
|
28
37540-SM4-A01
Sensor, Stop Lamp Failure
|
37540-SM4-A01 |
— | ||
|
29
|
29
37540-SM4-003 SensorSTOP LAMP FAILURE |
37540-SM4-003 |
US $51.71 |
||
|
30
|
30
75525-SD4-013 ClipRR. PANEL GARNISH |
75525-SD4-013 |
US $4.66 |
||
|
31
|
31
90301-SE0-902
Nut
|
90301-SE0-902 |
— | ||
|
32
|
32
90521-SE3-003 GrommetSCREW, 4MM |
90521-SE3-003 |
US $1.96 |
||
|
33
|
33
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.22 |
||
|
34
|
34
93901-24220 ScrewTAPPING, 4X10 |
93901-24220 |
from US $0.37 |
||
|
35
|
35
93901-34520 ScrewTAPPING, 4X20 |
93901-34520 |
from US $0.37 |
||
|
36
|
36
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.22 |
||
|
37
|
37
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
