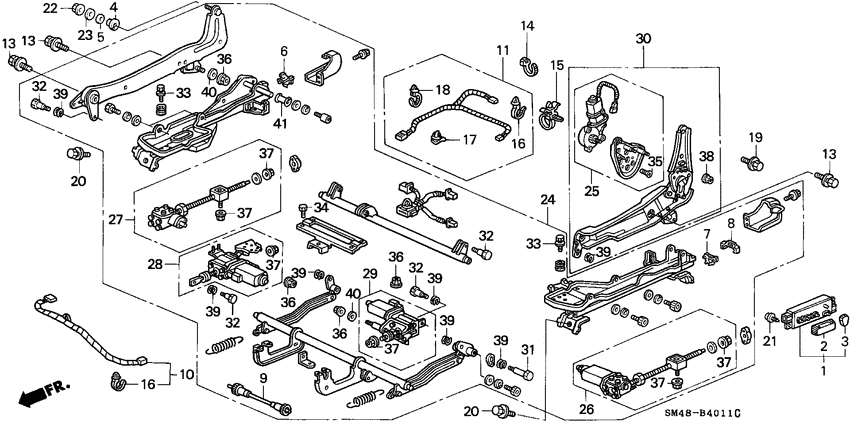

Front seat components (2) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EXI
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35950-SM4-G51ZA
Switch assy
|
35950-SM4-G51ZA |
— | ||
|
1
|
1
35950-SM4-G51ZD
Switch assy
|
35950-SM4-G51ZD |
— | ||
|
1
|
1
35950-SM4-G51ZF
Switch assy
|
35950-SM4-G51ZF |
— | ||
|
1
|
1
35950-SM4-G51ZE
Switch assy
|
35950-SM4-G51ZE |
— | ||
|
2
|
2
35951-SM4-J61ZA
Knob
|
35951-SM4-J61ZA |
— | ||
|
2
|
2
35951-SM4-J61ZD KnobSLIDE *NH89L* |
35951-SM4-J61ZD |
US $7.98 |
||
|
2
|
2
35951-SM4-J61ZF
Knob
|
35951-SM4-J61ZF |
— | ||
|
2
|
2
35951-SM4-J61ZE KnobSLIDE *B44L* |
35951-SM4-J61ZE |
US $7.98 |
||
|
3
|
3
35952-SM4-J61ZA
Knob
|
35952-SM4-J61ZA |
— | ||
|
3
|
3
35952-SM4-J61ZD KnobRECLINING *NH89L* |
35952-SM4-J61ZD |
US $4.20 |
||
|
3
|
3
35952-SM4-J61ZF
Knob
|
35952-SM4-J61ZF |
— | ||
|
3
|
3
35952-SM4-J61ZE KnobRECLINING *B44L* |
35952-SM4-J61ZE |
US $4.20 |
||
|
4
|
4
77208-SA5-003 BushNYLON (TS TECH) |
77208-SA5-003 |
US $2.80 |
||
|
5
|
5
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
6
|
6
77517-SA5-014 CapSLIDE ADJUSTER |
77517-SA5-014 |
US $4.48 |
||
|
7
|
7
81261-SM4-J32 CapRAIL END LOWER |
81261-SM4-J32 |
US $3.92 |
||
|
8
|
8
81262-SM4-J32 CapRAIL END UPPER |
81262-SM4-J32 |
US $3.92 |
||
|
9
|
9
81266-SD4-J31
Cable
|
81266-SD4-J31 |
— | ||
|
10
|
10
81311-SM4-G50
Cord a
|
81311-SM4-G50 |
— | ||
|
11
|
11
81312-SM4-S00
Cord
|
81312-SM4-S00 |
— | ||
|
13
|
13
90180-SE3-000
Bolt-washer
|
90180-SE3-000 |
— | ||
|
14
|
14
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
15
|
15
90672-SA0-003 StrapCABLE, 118MM(BLACK) |
90672-SA0-003 |
from US $3.26 |
||
|
16
|
16
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $3.40 |
||
|
17
|
17
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.22 |
||
|
18
|
18
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
19
|
19
93403-100-200-8 Bolt-washer10X20 |
93403-100-200-8 |
from US $0.81 |
||
|
20
|
20
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
21
|
21
93903-24120 ScrewTAPPING, 4X8 |
93903-24120 |
from US $0.37 |
||
|
22
|
22
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
23
|
23
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
24
|
24
81511-SM4-G52
Slide & height comp.
|
81511-SM4-G52 |
— | ||
|
25
|
25
81513-SM4-G52
Motor assy.
|
81513-SM4-G52 |
— | ||
|
26
|
26
81514-SM4-G52
Motor assy.
|
81514-SM4-G52 |
— | ||
|
27
|
27
81517-SM4-G52
Box assy
|
81517-SM4-G52 |
— | ||
|
28
|
28
81518-SM4-G52
Motor assy.
|
81518-SM4-G52 |
— | ||
|
29
|
29
81519-SM4-G52
Motor assy.
|
81519-SM4-G52 |
— | ||
|
30
|
30
81630-SM4-G52
Adjuster
|
81630-SM4-G52 |
— | ||
|
31
|
31
90125-SP0-003
Bolt b
|
90125-SP0-003 |
— | ||
|
32
|
32
90127-SP0-003 Bolt e |
90127-SP0-003 |
US $1.96 |
||
|
33
|
33
90128-SP0-003
Bolt
|
90128-SP0-003 |
— | ||
|
34
|
34
90130-SP0-003
Bolt d
|
90130-SP0-003 |
— | ||
|
35
|
35
90133-SP0-003 Screw a |
90133-SP0-003 |
US $1.68 |
||
|
36
|
36
90322-SP0-003 Nut a |
90322-SP0-003 |
US $1.54 |
||
|
37
|
37
90324-SM4-003 Nut |
90324-SM4-003 |
US $1.82 |
||
|
38
|
38
90518-SP0-003
Bush a
|
90518-SP0-003 |
— | ||
|
38
|
38
90324-SP0-003 Nut c |
90324-SP0-003 |
US $1.68 |
||
|
39
|
39
90519-SP0-003
Washer a
|
90519-SP0-003 |
— | ||
|
39
|
39
90518-SP0-003
Bush a
|
90518-SP0-003 |
— | ||
|
40
|
40
90519-SP0-003
Washer a
|
90519-SP0-003 |
— | ||
|
40
|
40
90521-SP0-003
Bush b
|
90521-SP0-003 |
— | ||
|
41
|
41
90521-SP0-003
Bush b
|
90521-SP0-003 |
— |
