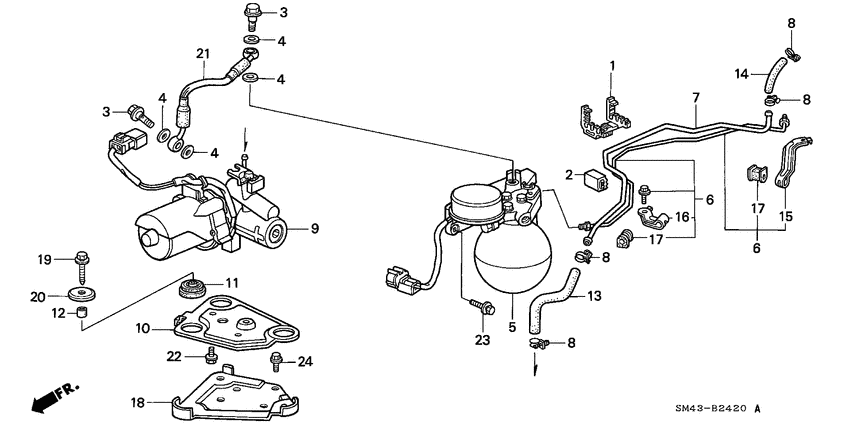

Abs accumulator (1) Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SE
- abs
- +
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46396-SM4-951
Clip c
|
46396-SM4-951 |
— | ||
|
2
|
2
46397-SM4-952
Clip A
|
46397-SM4-952 |
— | ||
|
3
|
3
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.92 |
||
|
4
|
4
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.33 |
||
|
5
|
5
57060-SM4-A00
Accumulator unit
|
57060-SM4-A00 |
— | ||
|
6
|
6
57090-SM4-G52
Pipe comp
|
57090-SM4-G52 |
— | ||
|
7
|
7
57092-SM4-G53
Pipe comp
|
57092-SM4-G53 |
— | ||
|
8
|
8
57199-SB0-801 ClampHOSE, 14MM |
57199-SB0-801 |
US $2.31 |
||
|
9
|
9
57310-SM4-E00
Pump assy.
|
57310-SM4-E00 |
— | ||
|
10
|
10
57355-SM4-950
Bracket
|
57355-SM4-950 |
— | ||
|
11
|
11
57358-SH9-800 MountPUMP |
57358-SH9-800 |
US $6.86 |
||
|
12
|
12
57359-SM4-801
Collar
|
57359-SM4-801 |
— | ||
|
13
|
13
57370-SM4-951
Hose comp.
|
57370-SM4-951 |
— | ||
|
14
|
14
57371-SM4-G51
Hose comp. b
|
57371-SM4-G51 |
— | ||
|
15
|
15
57373-SM4-G51
Clamp
|
57373-SM4-G51 |
— | ||
|
16
|
16
57373-SM4-950
Clamp
|
57373-SM4-950 |
— | ||
|
17
|
17
57374-SH9-801
Rubber
|
57374-SH9-801 |
— | ||
|
18
|
18
57375-SM4-951
Bracket
|
57375-SM4-951 |
— | ||
|
19
|
19
57376-SM4-800
Bolt
|
57376-SM4-800 |
— | ||
|
20
|
20
57377-SL4-800
Washer
|
57377-SL4-800 |
— | ||
|
21
|
21
57380-SM4-951
Hose
|
57380-SM4-951 |
— | ||
|
22
|
22
90127-SB0-801 BoltSENSOR LOCK, 6X12 |
90127-SB0-801 |
US $2.80 |
||
|
23
|
23
93403-060-250-8 Bolt-washer6X25 |
93403-060-250-8 |
US $0.74 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
