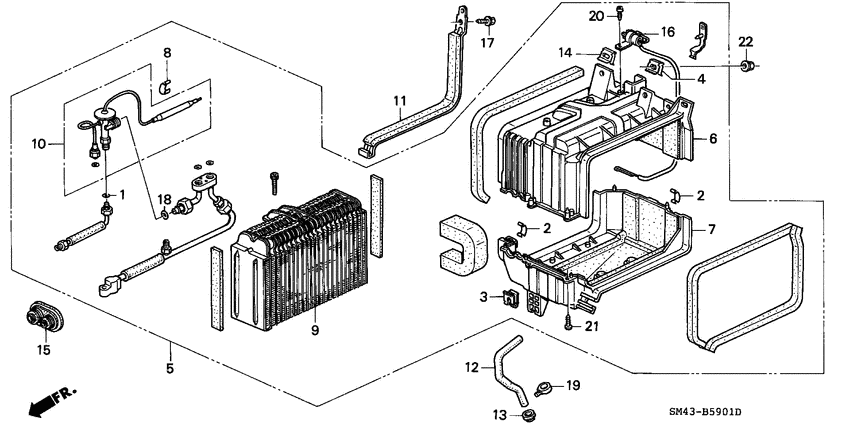

Cooling unit (2) Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SE
- abs
- +
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38646-SA5-003
O-ring
|
38646-SA5-003 |
— | ||
|
2
|
2
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
3
|
3
79192-SM4-003
Holder a
|
79192-SM4-003 |
— | ||
|
4
|
4
79193-SM4-003
Holder b
|
79193-SM4-003 |
— | ||
|
5
|
5
80200-SM4-G04 Cooling unit |
80200-SM4-G04 |
US $773.12 |
||
|
6
|
6
80201-SM4-G01
Case
|
80201-SM4-G01 |
— | ||
|
7
|
7
80202-SM4-G01
Case
|
80202-SM4-G01 |
— | ||
|
8
|
8
80206-SD4-003 Holder |
80206-SD4-003 |
US $5.88 |
||
|
9
|
9
80210-SM4-G02
Evaporator sub assy.
MC093295 - |
80210-SM4-G02 |
— | ||
|
9
|
9
80210-SM4-G01
Evaporator sub assy.
00000000 - MC093294 |
80210-SM4-G01 |
— | ||
| replacement | |||||
|
9
|
9
80210-SM4-G02
Evaporator sub assy.
00000000 - MC093294 |
80210-SM4-G02 |
— | ||
|
10
|
10
80220-SM4-G02
Valve assy.
|
80220-SM4-G02 |
— | ||
|
11
|
11
80261-SM4-000
Band
|
80261-SM4-000 |
— | ||
|
12
|
12
80271-SM4-000 HoseDRAIN |
80271-SM4-000 |
US $9.80 |
||
|
13
|
13
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
14
|
14
79193-SM4-003
Holder b
|
79193-SM4-003 |
— | ||
|
15
|
15
80380-SF4-000
Grommet
|
80380-SF4-000 |
— | ||
|
16
|
16
80430-SM4-003
Thermostat
|
80430-SM4-003 |
— | ||
|
17
|
17
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
18
|
18
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
19
|
19
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
20
|
20
93902-44420 ScrewTAPPING, 4X16 |
93902-44420 |
US $0.37 |
||
|
21
|
21
93902-44420 ScrewTAPPING, 4X16 |
93902-44420 |
US $0.37 |
||
|
22
|
22
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
