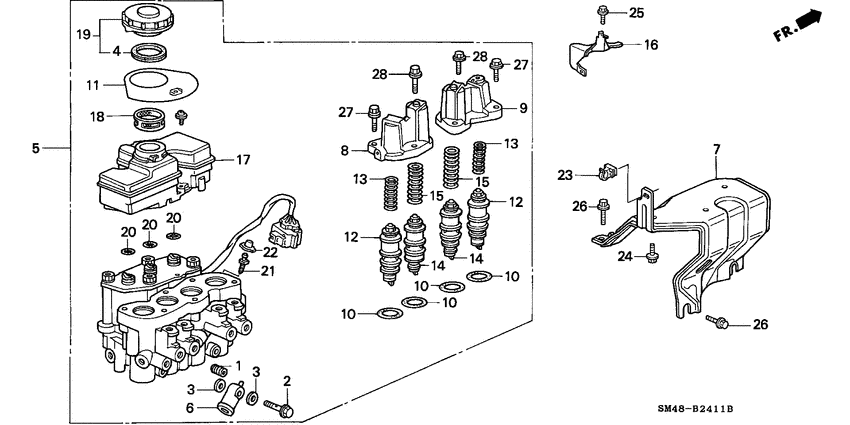

Abs modulator (2) Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EXI
- abs
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
- 4ws
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46175-671-651 ScrewSOCKET |
46175-671-651 |
from US $2.17 |
||
|
2
|
2
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.92 |
||
|
3
|
3
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.33 |
||
|
4
|
4
57198-SP0-003 SealRESERVE TANK |
57198-SP0-003 |
US $5.18 |
||
|
5
|
5
57110-SM4-Z03
Modulator assy
|
57110-SM4-Z03 |
— | ||
|
6
|
6
57113-SE0-802
Joint
|
57113-SE0-802 |
— | ||
|
7
|
7
57115-SM4-954
Bracket
|
57115-SM4-954 |
— | ||
|
8
|
8
57116-SP0-305
Head set a
|
57116-SP0-305 |
— | ||
|
9
|
9
57117-SP0-305
Head set b
|
57117-SP0-305 |
— | ||
|
10
|
10
57118-SG0-801 O-ringHEAD |
57118-SG0-801 |
US $2.15 |
||
|
11
|
11
57119-SP0-013
Mark
|
57119-SP0-013 |
— | ||
|
12
|
12
57120-SG0-805
Piston comp
|
57120-SG0-805 |
— | ||
|
13
|
13
57121-SG0-801
Spring
|
57121-SG0-801 |
— | ||
|
14
|
14
57140-SG0-805
Piston comp
|
57140-SG0-805 |
— | ||
|
15
|
15
57141-SF1-801
Spring
|
57141-SF1-801 |
— | ||
|
16
|
16
57175-SM4-951
Bracket
|
57175-SM4-951 |
— | ||
|
17
|
17
57191-SM4-Z02
Tank comp.
|
57191-SM4-Z02 |
— | ||
|
18
|
18
57193-SP0-013
Filter
|
57193-SP0-013 |
— | ||
|
19
|
19
57196-SP0-003
Cap comp.
|
57196-SP0-003 |
— | ||
|
20
|
20
57204-SP0-003 O-ring cSOLENOID |
57204-SP0-003 |
US $3.33 |
||
|
21
|
21
57348-SB0-801
Bleed
|
57348-SB0-801 |
— | ||
|
22
|
22
57349-SB0-801
Cap
|
57349-SB0-801 |
— | ||
|
23
|
23
57372-SM4-951
Clip
|
57372-SM4-951 |
— | ||
|
24
|
24
90105-SG0-003
Bolt-washer
|
90105-SG0-003 |
— | ||
|
25
|
25
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
26
|
26
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
27
|
27
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.74 |
||
|
28
|
28
95701-100-320-8 BoltFLANGE, 10X32 |
95701-100-320-8 |
from US $0.90 |
