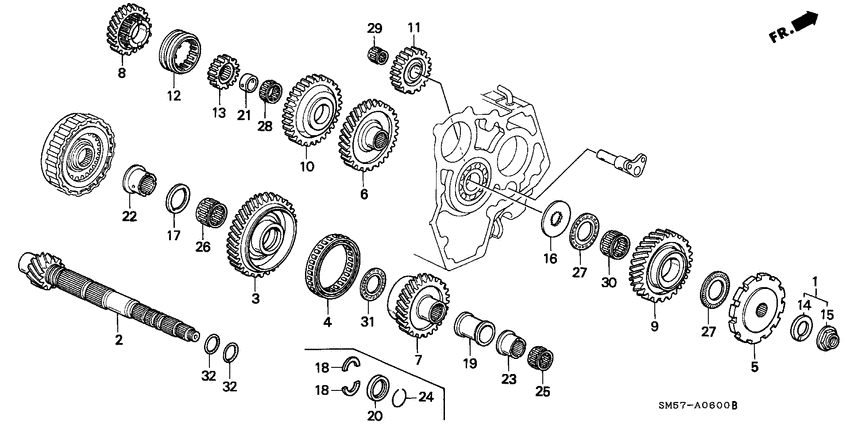

Countershaft Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.2I
- abs
- +
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
23220-PX4-700
Countershaft comp.
|
23220-PX4-700 |
— | ||
|
3
|
3
23421-PX4-700
Gear
|
23421-PX4-700 |
— | ||
|
4
|
4
23423-PX4-003 Clutch assy.ONE WAY |
23423-PX4-003 |
US $117.12 |
||
|
5
|
5
23427-PX4-700
Gear
|
23427-PX4-700 |
— | ||
|
6
|
6
23441-PX4-740
Gear
|
23441-PX4-740 |
— | ||
|
7
|
7
23451-PX0-000
Gear
|
23451-PX0-000 |
— | ||
|
8
|
8
23471-PX4-700
Gear
|
23471-PX4-700 |
— | ||
|
9
|
9
23491-PX4-700
Gear
|
23491-PX4-700 |
— | ||
|
10
|
10
23531-PX4-700
Gear
|
23531-PX4-700 |
— | ||
|
11
|
11
23541-PX4-020
Gear
|
23541-PX4-020 |
— | ||
|
12
|
12
23565-PX4-700 SelectorREVERSE GEAR |
23565-PX4-700 |
US $51.71 |
||
|
13
|
13
23566-PX4-010
Hub
|
23566-PX4-010 |
— | ||
|
14
|
14
23929-PX4-700 WasherSPRING, 24MM |
23929-PX4-700 |
US $14.96 |
||
|
15
|
15
90203-PX4-010 NutFLANGE, 24MM |
90203-PX4-010 |
US $4.59 |
||
|
16
|
16
90405-PX4-700
Washer
|
90405-PX4-700 |
— | ||
|
17
|
17
90407-PX4-000
Washer
|
90407-PX4-000 |
— | ||
|
18
|
18
90431-PX4-700 Cotter29MM |
90431-PX4-700 |
US $2.31 |
||
|
19
|
19
90441-PX4-700
Collar
|
90441-PX4-700 |
— | ||
|
20
|
20
90445-PX4-700
Collar
|
90445-PX4-700 |
— | ||
|
22
|
22
90518-PX4-000
Collar
|
90518-PX4-000 |
— | ||
|
24
|
24
90614-PX4-700
Ring
|
90614-PX4-700 |
— | ||
|
25
|
25
91028-PF4-A01
Bearing
|
91028-PF4-A01 |
— | ||
|
26
|
26
91015-PX4-003
Bearing
|
91015-PX4-003 |
— | ||
|
27
|
27
91022-PX4-003
Bearing
|
91022-PX4-003 |
— | ||
|
28
|
28
91024-PX4-003
Bearing
|
91024-PX4-003 |
— | ||
|
29
|
29
91025-PJ2-003 BearingNEEDLE, 14X18X15 (NTN) |
91025-PJ2-003 |
US $5.46 |
||
|
29
|
29
91025-639-004 BearingNEEDLE, 14X18X15 (KOYO) |
91025-639-004 |
US $7.42 |
||
|
30
|
30
91035-PX4-003
Bearing
|
91035-PX4-003 |
— | ||
|
31
|
31
91038-PX4-003
Bearing
|
91038-PX4-003 |
— | ||
|
32
|
32
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
32
|
32
91307-PA9-004 O-ring31.2X1.9 (NOK) |
91307-PA9-004 |
US $3.93 |
||
| replacement | |||||
|
32
|
32
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
