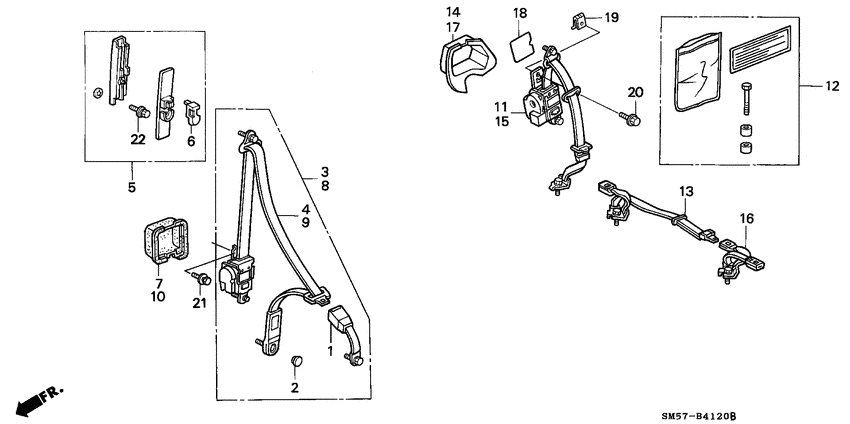

Seatbelt Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.2I
- abs
- +
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04813-SM5-G02ZA
Buckle set
|
04813-SM5-G02ZA |
— | ||
|
1
|
1
04813-SM5-G02ZB
Buckle set
|
04813-SM5-G02ZB |
— | ||
|
3
|
3
81400-SM5-G04ZB
Seatbelt assy.
|
81400-SM5-G04ZB |
— | ||
|
3
|
3
81400-SM5-G04ZA
Seatbelt assy.
|
81400-SM5-G04ZA |
— | ||
|
4
|
4
81450-SM5-G02ZB
Tongue
|
81450-SM5-G02ZB |
— | ||
|
4
|
4
81450-SM5-G02ZA
Tongue
|
81450-SM5-G02ZA |
— | ||
|
5
|
5
81460-SP0-004ZA
Adjuster
|
81460-SP0-004ZA |
— | ||
|
5
|
5
81460-SP0-004ZE
Adjuster
|
81460-SP0-004ZE |
— | ||
|
6
|
6
81461-SP0-014ZE
Cover
|
81461-SP0-014ZE |
— | ||
|
6
|
6
81461-SP0-014ZA CoverSHOULDER SLIDE ADJUSTER *NH180L* |
81461-SP0-014ZA |
US $4.34 |
||
|
7
|
7
81491-SM4-A00
Protector
|
81491-SM4-A00 |
— | ||
|
8
|
8
81800-SM5-G04ZB
Seatbelt assy.
|
81800-SM5-G04ZB |
— | ||
|
8
|
8
81800-SM5-G04ZA
Seatbelt assy.
|
81800-SM5-G04ZA |
— | ||
|
9
|
9
81850-SM5-G02ZB
Tongue
|
81850-SM5-G02ZB |
— | ||
|
9
|
9
81850-SM5-G02ZA
Tongue
|
81850-SM5-G02ZA |
— | ||
|
10
|
10
81891-SM4-A00
Protector
|
81891-SM4-A00 |
— | ||
|
11
|
11
82410-SM5-G03ZB
Seatbelt assy.
|
82410-SM5-G03ZB |
— | ||
|
11
|
11
82410-SM5-G03ZA
Seatbelt assy.
|
82410-SM5-G03ZA |
— | ||
|
13
|
13
82420-SM5-G04ZB
Seatbelt assy.
|
82420-SM5-G04ZB |
— | ||
|
13
|
13
82420-SM5-G04ZA
Seatbelt assy.
|
82420-SM5-G04ZA |
— | ||
|
14
|
14
82491-SM5-A00
Protector
|
82491-SM5-A00 |
— | ||
|
15
|
15
82810-SM5-G03ZB
Seatbelt assy.
|
82810-SM5-G03ZB |
— | ||
|
15
|
15
82810-SM5-G03ZA
Seatbelt assy.
|
82810-SM5-G03ZA |
— | ||
|
16
|
16
82820-SM5-G04ZA
Seatbelt assy.
|
82820-SM5-G04ZA |
— | ||
|
16
|
16
82820-SM5-G04ZB
Seatbelt assy.
|
82820-SM5-G04ZB |
— | ||
|
17
|
17
82891-SM5-A00
Protector
|
82891-SM5-A00 |
— | ||
|
18
|
18
84136-SM4-A00
Seal
|
84136-SM4-A00 |
— | ||
|
19
|
19
90344-692-003 NutCLIP, 6MM |
90344-692-003 |
from US $2.38 |
||
|
20
|
20
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
21
|
21
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
22
|
22
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
