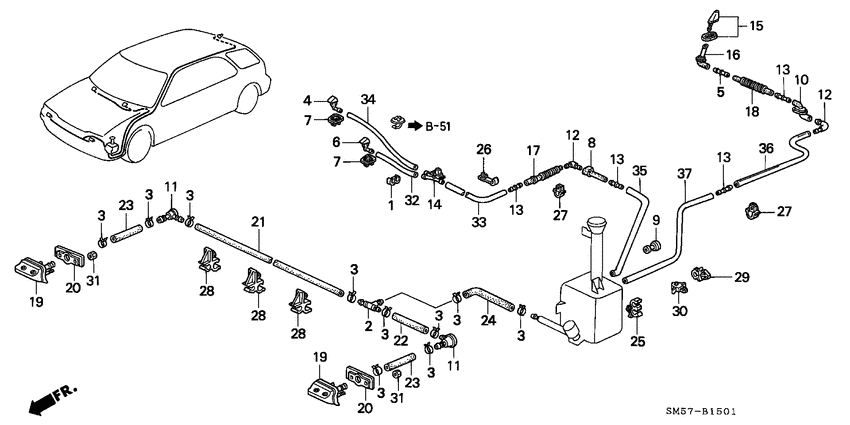

Washer nozzle/washer tube Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.2I
- abs
- +
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36062-671-000
Clamp b
|
36062-671-000 |
— | ||
|
2
|
2
38581-671-631 JointTUBE |
38581-671-631 |
US $7.28 |
||
|
3
|
3
76803-SE1-S03 ClipWASHER HOSE |
76803-SE1-S03 |
US $1.96 |
||
|
4
|
4
76810-SM1-004ZT NozzleR. WINDSHIELD WASHER *NH561P* |
76810-SM1-004ZT |
US $24.19 |
||
|
4
|
4
76810-SM1-004ZE
Nozzle
|
76810-SM1-004ZE |
— | ||
|
4
|
4
76810-SM1-004ZL NozzleR. WINDSHIELD WASHER *B54P* |
76810-SM1-004ZL |
US $24.19 |
||
|
4
|
4
76810-SM1-004ZR NozzleR. WINDSHIELD WASHER *BG30P* |
76810-SM1-004ZR |
US $24.19 |
||
|
4
|
4
76810-SM1-004ZM NozzleR. WINDSHIELD WASHER *R78P* |
76810-SM1-004ZM |
US $24.19 |
||
|
5
|
5
76826-SH0-A02
Valve
|
76826-SH0-A02 |
— | ||
|
6
|
6
76815-SM1-004ZM NozzleL. WINDSHIELD WASHER *R78P* |
76815-SM1-004ZM |
US $24.19 |
||
|
6
|
6
76815-SM1-004ZT NozzleL. WINDSHIELD WASHER *NH561P* |
76815-SM1-004ZT |
US $24.19 |
||
|
6
|
6
76815-SM1-004ZE
Nozzle
|
76815-SM1-004ZE |
— | ||
|
6
|
6
76815-SM1-004ZL NozzleL. WINDSHIELD WASHER *B54P* |
76815-SM1-004ZL |
US $24.19 |
||
|
6
|
6
76815-SM1-004ZR NozzleL. WINDSHIELD WASHER *BG30P* |
76815-SM1-004ZR |
US $24.19 |
||
|
7
|
7
76816-SE4-A02
Adapter
|
76816-SE4-A02 |
— | ||
| replacement | |||||
|
7
|
7
38511-SD2-003 AdapterNOZZLE (MITSUBA) |
38511-SD2-003 |
from US $4 |
||
|
8
|
8
76820-SM1-004 GrommetTUBE WASHER |
76820-SM1-004 |
US $6.16 |
||
|
9
|
9
76821-SE4-A02 GrommetWASHER TUBE(DENSO) |
76821-SE4-A02 |
US $2.52 |
||
|
10
|
10
76825-SM5-A02
Tube j
|
76825-SM5-A02 |
— | ||
|
11
|
11
76826-SH3-S00 ValveONE WAY |
76826-SH3-S00 |
from US $28.58 |
||
|
12
|
12
76828-SH0-A02 Joint l, WASHER TUBE (DENSO) |
76828-SH0-A02 |
US $4.07 |
||
|
13
|
13
76829-SM1-004 Joint iWASHER |
76829-SM1-004 |
US $6.16 |
||
|
14
|
14
76830-SM1-004
Joint y
|
76830-SM1-004 |
— | ||
| replacement | |||||
|
14
|
14
76830-SM4-003 Joint yWASHER |
76830-SM4-003 |
from US $2.90 |
||
|
15
|
15
76850-SM5-A02ZG
Nozzle assy.
|
76850-SM5-A02ZG |
— | ||
| replacement | |||||
|
15
|
15
76850-SM5-A02ZU
Nozzle assy.
|
76850-SM5-A02ZU |
— | ||
|
15
|
15
76850-SM5-A02ZP Nozzle assy.RR. WASHER *NH561P* |
76850-SM5-A02ZP |
US $19.58 |
||
|
15
|
15
76850-SM5-A02ZF
Nozzle assy.
|
76850-SM5-A02ZF |
— | ||
| replacement | |||||
|
15
|
15
76850-SM5-A02ZU
Nozzle assy.
|
76850-SM5-A02ZU |
— | ||
|
15
|
15
76850-SM5-A02ZJ
Nozzle assy.
|
76850-SM5-A02ZJ |
— | ||
| replacement | |||||
|
15
|
15
76850-SM5-A02ZU
Nozzle assy.
|
76850-SM5-A02ZU |
— | ||
|
15
|
15
76850-SM5-A02ZM Nozzle assy.RR. WASHER *BG30P* |
76850-SM5-A02ZM |
US $19.58 |
||
|
16
|
16
76852-SM5-A02
Tube a
|
76852-SM5-A02 |
— | ||
|
17
|
17
76875-SM1-004 BellowsFR. WASHER |
76875-SM1-004 |
US $6.86 |
||
|
18
|
18
76875-SM5-A02
Bellows
|
76875-SM5-A02 |
— | ||
|
19
|
19
76880-SM4-E04
Nozzle assy.
|
76880-SM4-E04 |
— | ||
|
20
|
20
76881-SM4-E03
Plate
|
76881-SM4-E03 |
— | ||
|
21
|
21
76891-SM4-E03
Hose a
|
76891-SM4-E03 |
— | ||
|
22
|
22
76892-SM4-E03
Hose b
|
76892-SM4-E03 |
— | ||
|
23
|
23
76893-SM5-E03
Hose c
|
76893-SM5-E03 |
— | ||
|
24
|
24
76894-SM4-E03 Hose d |
76894-SM4-E03 |
US $12.18 |
||
|
25
|
25
91511-SJ8-003 ClipWASHER TUBE |
91511-SJ8-003 |
US $1.96 |
||
|
26
|
26
91512-SE0-003 ClipWASHER TUBE |
91512-SE0-003 |
US $2.31 |
||
|
27
|
27
91523-SM4-003 ClipWASHER TUBE |
91523-SM4-003 |
US $1.78 |
||
|
28
|
28
91528-SE0-003
Clip
|
91528-SE0-003 |
— | ||
|
29
|
29
91529-SM5-A01
Clip
|
91529-SM5-A01 |
— | ||
|
30
|
30
91530-SM5-A01 ClipWASHER TUBE |
91530-SM5-A01 |
US $4.34 |
||
|
31
|
31
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
32
|
32
95003-070-217-1 TubeVINYL, 4X7X210 (95003-07001-70M) |
95003-070-217-1 |
US $0.59 |
||
|
33
|
33
95003-070-407-1 TubeVINYL, 4X7X400 (95003-07001-70M) |
95003-070-407-1 |
US $0.89 |
||
|
34
|
34
95003-070-657-1 TubeVINYL, 4X7X650 (95003-07001-70M) |
95003-070-657-1 |
US $1.41 |
||
|
35
|
35
95003-071-273-1 TubeVINYL, 4X7X1270 (95003-07003-60M) |
95003-071-273-1 |
US $2.96 |
||
|
36
|
36
95003-071-937-0 TubeVINYL, 4X7X1930 (95003-07003-70M) |
95003-071-937-0 |
US $4 |
||
|
37
|
37
95003-073-027-0 TubeVINYL, 4X7X3020 (95003-07008-70M) |
95003-073-027-0 |
US $6.36 |
||
