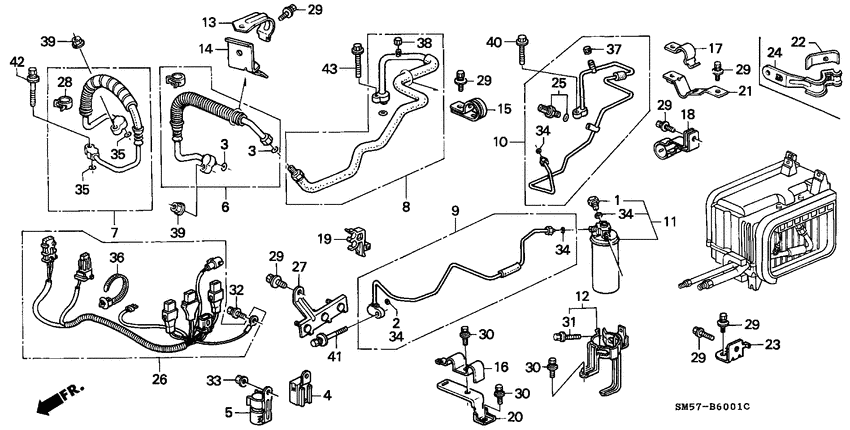

Air conditioner (HOSES/PIPES; RH) Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.2I
- area code
- KE
- right-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38642-692-013
Plug
|
38642-692-013 |
— | ||
|
3
|
3
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
4
|
4
38725-SA5-003
Diode assy.
|
38725-SA5-003 |
— | ||
|
5
|
5
39798-SE0-003
Relay assy
|
39798-SE0-003 |
— | ||
| replacement | |||||
|
5
|
5
80490-SM4-A01
Relay assy
|
80490-SM4-A01 |
— | ||
|
6
|
6
80310-SM1-J05 Hose comp.SUCTION |
80310-SM1-J05 |
US $230.40 |
||
|
7
|
7
80315-SM1-J02 Hose comp.DISCHARGE (NICHIRIN INC.) |
80315-SM1-J02 |
US $245.76 |
||
|
8
|
8
80321-SM1-J04
Pipe comp
|
80321-SM1-J04 |
— | ||
|
9
|
9
80331-SM1-A16 PipeCONDENSER (FAYETTE) |
80331-SM1-A16 |
US $65.92 |
||
|
10
|
10
80341-SM1-J05
Pipe comp
|
80341-SM1-J05 |
— | ||
|
11
|
11
80351-SM1-A11 Receiver compPARKER |
80351-SM1-A11 |
US $163.84 |
||
|
12
|
12
80352-SM4-A00
Bracket
|
80352-SM4-A00 |
— | ||
|
13
|
13
80361-SM4-000
Stay
|
80361-SM4-000 |
— | ||
|
14
|
14
80362-SM4-000
Clamp
|
80362-SM4-000 |
— | ||
|
15
|
15
80366-SM4-000 Clamp bSUCTION PIPE |
80366-SM4-000 |
US $2.52 |
||
|
16
|
16
80381-SM4-A00
Clamp
|
80381-SM4-A00 |
— | ||
|
17
|
17
80381-SM4-010 Clamp aRECEIVER PIPE |
80381-SM4-010 |
US $2.73 |
||
|
18
|
18
80382-SM4-000
Clamp b
|
80382-SM4-000 |
— | ||
|
19
|
19
80383-SM4-003
Clip c
|
80383-SM4-003 |
— | ||
|
20
|
20
80386-SM4-A00
Stay
|
80386-SM4-A00 |
— | ||
|
21
|
21
80386-SM4-010
Stay a
|
80386-SM4-010 |
— | ||
|
22
|
22
80387-SM4-910
Stay
|
80387-SM4-910 |
— | ||
|
24
|
24
80388-SM4-910
Stay
|
80388-SM4-910 |
— | ||
|
25
|
25
80440-SM4-000
Switch
|
80440-SM4-000 |
— | ||
|
26
|
26
80460-SM4-Q03
Harness
|
80460-SM4-Q03 |
— | ||
|
27
|
27
80491-SM4-A00
Bracket
|
80491-SM4-A00 |
— | ||
|
29
|
29
90003-PG7-660
Bolt-washer
|
90003-PG7-660 |
— | ||
| replacement | |||||
|
29
|
29
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
30
|
30
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
31
|
31
90101-SM4-000 Bolt-washer6X20 |
90101-SM4-000 |
US $2.03 |
||
|
32
|
32
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
33
|
33
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
34
|
34
91301-SM4-A00 O-ring8MM |
91301-SM4-A00 |
US $1.75 |
||
|
35
|
35
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
39
|
39
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
41
|
41
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
|
42
|
42
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
