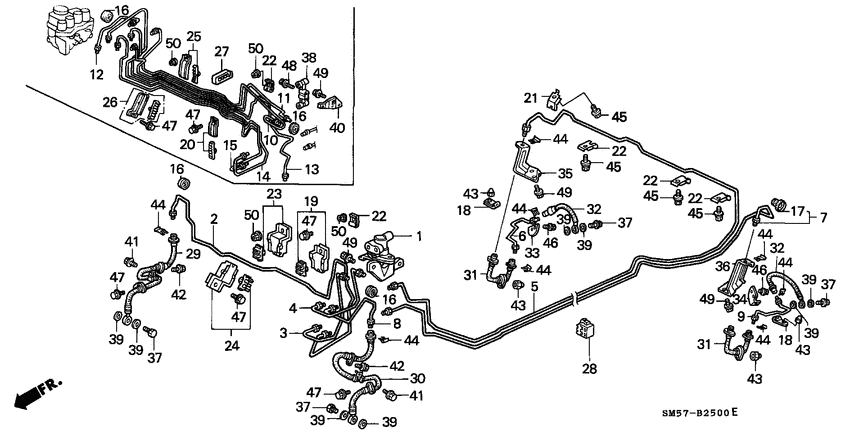

Brake line (LH) Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.2I
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46210-SM5-A01
Valve assy.
|
46210-SM5-A01 |
— | ||
|
2
|
2
46310-SM4-A03
Pipe comp. a
|
46310-SM4-A03 |
— | ||
|
3
|
3
46320-SM4-A02
Pipe comp. b
|
46320-SM4-A02 |
— | ||
|
4
|
4
46321-SM4-A02
Pipe comp. h
|
46321-SM4-A02 |
— | ||
|
5
|
5
46330-SM4-A03
Pipe comp. c
|
46330-SM4-A03 |
— | ||
|
6
|
6
46331-SM5-951
Pipe comp. e
|
46331-SM5-951 |
— | ||
|
7
|
7
46340-SM4-A02
Pipe comp. d
|
46340-SM4-A02 |
— | ||
|
8
|
8
46360-SM4-A02
Pipe comp. f
|
46360-SM4-A02 |
— | ||
|
9
|
9
46361-SM5-951
Pipe comp. e
|
46361-SM5-951 |
— | ||
|
16
|
16
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $2.03 |
||
|
17
|
17
46382-SM4-300
Grommet
|
46382-SM4-300 |
— | ||
|
18
|
18
46391-SE0-931 ClampBRAKE PIPE |
46391-SE0-931 |
US $4.06 |
||
|
19
|
19
46391-SM4-A00
Clip A
|
46391-SM4-A00 |
— | ||
|
21
|
21
46391-SM4-J01 ClampBRAKE PIPE |
46391-SM4-J01 |
US $3.92 |
||
|
22
|
22
46392-SE0-000 ClipBRAKE PIPE |
46392-SE0-000 |
US $11.23 |
||
|
23
|
23
46392-SM4-A01
Clip b
|
46392-SM4-A01 |
— | ||
|
24
|
24
46392-SM4-A50
Clip b
|
46392-SM4-A50 |
— | ||
|
29
|
29
46410-SM1-003 HoseR. FR. BRAKE (NICHIRIN INC.) |
46410-SM1-003 |
US $62.21 |
||
|
30
|
30
46411-SM1-003 HoseL. FR. BRAKE (NICHIRIN INC.) |
46411-SM1-003 |
US $62.21 |
||
|
31
|
31
46430-SM1-003 Hose aRR. BRAKE (NICHIRIN INC.) |
46430-SM1-003 |
US $32.90 |
||
|
32
|
32
46431-SM4-951
Hose b
|
46431-SM4-951 |
— | ||
|
33
|
33
46435-SM4-000 BracketR. RR. BRAKE HOSE |
46435-SM4-000 |
US $7.56 |
||
|
34
|
34
46436-SM4-000 BracketL. RR. BRAKE HOSE |
46436-SM4-000 |
US $7.56 |
||
|
35
|
35
46438-SM4-000
Bracket
|
46438-SM4-000 |
— | ||
|
36
|
36
46439-SM4-000
Bracket
|
46439-SM4-000 |
— | ||
|
37
|
37
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
39
|
39
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
41
|
41
90105-SB0-003 Bolt-washer8X16 |
90105-SB0-003 |
US $0.67 |
||
|
42
|
42
90105-SD9-003 Bolt-washer8X20 |
90105-SD9-003 |
US $0.67 |
||
|
43
|
43
90115-SB2-003
Nut
|
90115-SB2-003 |
— | ||
|
44
|
44
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
45
|
45
93402-060-100-8 Bolt-washer6X10 |
93402-060-100-8 |
from US $0.52 |
||
|
46
|
46
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
47
|
47
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
49
|
49
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
50
|
50
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
