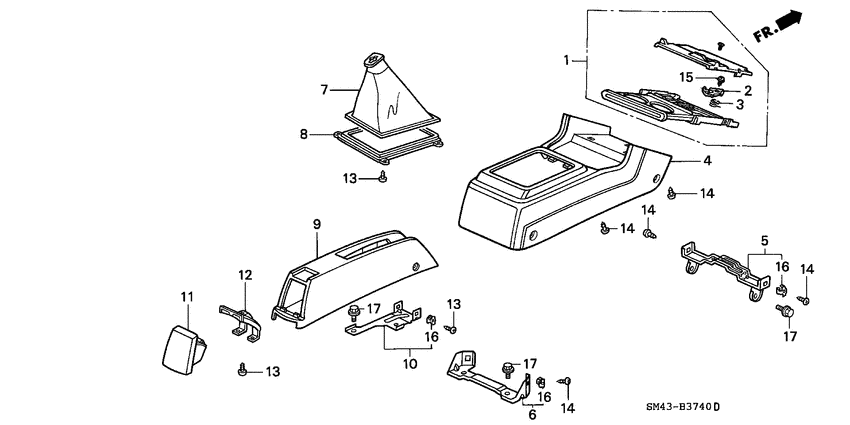

Console (1) Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KB
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77230-SM4-A01
Cup holder assy.
|
77230-SM4-A01 |
— | ||
|
2
|
2
77233-SM4-A01
Plate
|
77233-SM4-A01 |
— | ||
|
3
|
3
77234-SM4-A01
Spring
|
77234-SM4-A01 |
— | ||
|
4
|
4
77291-SM4-A51ZA
Console
|
77291-SM4-A51ZA |
— | ||
|
4
|
4
77291-SM4-A51ZC
Console
|
77291-SM4-A51ZC |
— | ||
|
4
|
4
77291-SM4-A51ZE
Console
|
77291-SM4-A51ZE |
— | ||
|
4
|
4
77291-SM4-A51ZB
Console
|
77291-SM4-A51ZB |
— | ||
|
5
|
5
77296-SM4-000
Bracket
|
77296-SM4-000 |
— | ||
|
6
|
6
77297-SM4-000
Bracket
|
77297-SM4-000 |
— | ||
|
7
|
7
83414-SM4-013ZA BootCHANGE LEVER *NH1L* |
83414-SM4-013ZA |
US $22.27 |
||
|
8
|
8
83415-SM4-J00 PlateBOOT SETTING |
83415-SM4-J00 |
US $10.22 |
||
|
9
|
9
83441-SM4-A01ZB
Cover
|
83441-SM4-A01ZB |
— | ||
|
9
|
9
83441-SM4-A01ZD
Cover
|
83441-SM4-A01ZD |
— | ||
|
9
|
9
83441-SM4-A01ZF
Cover
|
83441-SM4-A01ZF |
— | ||
|
9
|
9
83441-SM4-A01ZC
Cover
|
83441-SM4-A01ZC |
— | ||
|
10
|
10
83444-SM4-A00
Bracket a
|
83444-SM4-A00 |
— | ||
|
11
|
11
83480-SM4-A01ZB
Ashtray assy.
|
83480-SM4-A01ZB |
— | ||
|
11
|
11
83480-SM4-A01ZD
Ashtray assy.
|
83480-SM4-A01ZD |
— | ||
|
11
|
11
83480-SM4-A01ZF
Ashtray assy.
|
83480-SM4-A01ZF |
— | ||
|
11
|
11
83480-SM4-A01ZC
Ashtray assy.
|
83480-SM4-A01ZC |
— | ||
|
12
|
12
83484-SM4-A01
Cover
|
83484-SM4-A01 |
— | ||
|
13
|
13
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
13
|
13
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
14
|
14
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
14
|
14
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
15
|
15
90122-SM4-A01
Screw
|
90122-SM4-A01 |
— | ||
|
16
|
16
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
17
|
17
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
17
|
17
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
