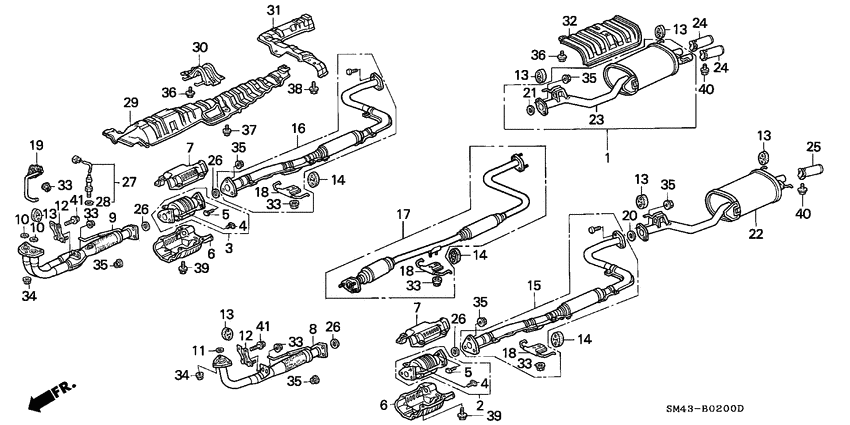

Exhaust system Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KB
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
18210-SM4-912
Pipe a
|
18210-SM4-912 |
— | ||
|
11
|
11
18212-SM4-003 GasketEX. PIPE (ISHINO) |
18212-SM4-003 |
from US $6.02 |
||
|
12
|
12
18213-SM4-A31
Stay
|
18213-SM4-A31 |
— | ||
|
13
|
13
18215-SM1-A50 RubberEX. MOUNTING (70X45X25) |
18215-SM1-A50 |
US $9.80 |
||
|
14
|
14
18215-SM1-A60 RubberEX. MOUNTING (60X50X20) |
18215-SM1-A60 |
US $7.42 |
||
|
17
|
17
18220-SM4-G32 Pipe bEX. |
18220-SM4-G32 |
US $455.68 |
||
|
18
|
18
18222-SM1-003 BracketEX. PIPE MOUNTING 00000000 - MC063739 |
18222-SM1-003 |
US $17.79 |
||
|
18
|
18
18222-SM4-003
Bracket
MC063740 - |
18222-SM4-003 |
— | ||
|
19
|
19
18282-SM4-020
Bracket b
|
18282-SM4-020 |
— | ||
|
21
|
21
18303-SM4-020 GasketSILENCER |
18303-SM4-020 |
from US $5.32 |
||
|
23
|
23
18307-SM1-934
Silencer comp
|
18307-SM1-934 |
— | ||
|
24
|
24
18310-SB0-023
Finisher
|
18310-SB0-023 |
— | ||
|
26
|
26
18393-SH3-S00 GasketPRE-CHAMBER (52.5MM-53.5MM) |
18393-SH3-S00 |
from US $7.33 |
||
|
29
|
29
74601-SM4-A00 PlateFLOOR HEAT BAFFLE |
74601-SM4-A00 |
US $93.44 |
||
|
30
|
30
74610-SM4-000
Reinforcement
|
74610-SM4-000 |
— | ||
|
31
|
31
74651-SM4-000
Plate
|
74651-SM4-000 |
— | ||
|
32
|
32
74655-SM4-000
Plate
|
74655-SM4-000 |
— | ||
|
33
|
33
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
34
|
34
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
35
|
35
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
36
|
36
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
36
|
36
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
37
|
37
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
38
|
38
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
40
|
40
95801-060-120-2 BoltFLANGE, 6X12 |
95801-060-120-2 |
from US $0.67 |
||
| replacement | |||||
|
40
|
40
95701-060-120-2 BoltFLANGE, 6X12 |
95701-060-120-2 |
from US $0.67 |
||
|
41
|
41
95801-100-200-8 BoltFLANGE, 10X20 |
95801-100-200-8 |
US $0.74 |
||
