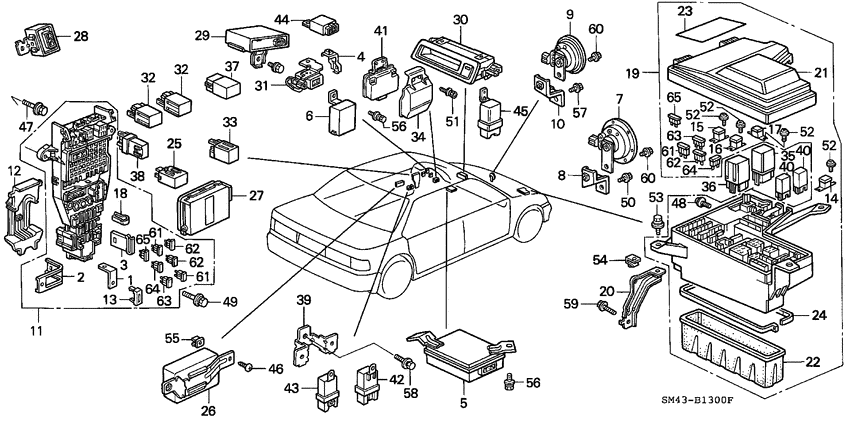

Fuse box/relay Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KB
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32121-SM4-003
Bracket a
|
32121-SM4-003 |
— | ||
|
2
|
2
32122-SM4-003 Bracket bFUSE BOX |
32122-SM4-003 |
US $3.57 |
||
|
3
|
3
32123-SM4-003
Bracket c
|
32123-SM4-003 |
— | ||
|
5
|
5
36700-SM4-A53
Controller
|
36700-SM4-A53 |
— | ||
|
7
|
7
38100-SM4-003 Horn assyLOW (MITSUBA) |
38100-SM4-003 |
US $53.63 |
||
|
8
|
8
38101-SM4-E00
Bracket
|
38101-SM4-E00 |
— | ||
|
9
|
9
38150-SM4-901 Horn assyHIGH |
38150-SM4-901 |
US $53.63 |
||
|
10
|
10
38151-SM4-A00
Bracket
|
38151-SM4-A00 |
— | ||
|
11
|
11
38200-SM4-A51
Box assy
|
38200-SM4-A51 |
— | ||
|
12
|
12
38201-SM4-003
Cover
|
38201-SM4-003 |
— | ||
|
14
|
14
38211-SM4-003 FuseBLOCK (30A) |
38211-SM4-003 |
US $6.30 |
||
|
15
|
15
38212-SM4-003 FuseBLOCK (40A) |
38212-SM4-003 |
US $5.18 |
||
|
16
|
16
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
17
|
17
38216-SM4-003 FuseBLOCK (80A) |
38216-SM4-003 |
from US $6.58 |
||
|
18
|
18
38235-SA5-003 PullerFUSE (SUMITOMO) |
38235-SA5-003 |
US $2.52 |
||
|
19
|
19
38250-SM4-B11
Box assy
|
38250-SM4-B11 |
— | ||
|
20
|
20
38251-SM4-A01
Bracket
|
38251-SM4-A01 |
— | ||
|
21
|
21
38251-SM4-003
Cover
|
38251-SM4-003 |
— | ||
|
22
|
22
38252-SM4-003
Cover
|
38252-SM4-003 |
— | ||
|
23
|
23
38253-SM4-B10
Label
|
38253-SM4-B10 |
— | ||
|
24
|
24
38255-SE0-003
Band
|
38255-SE0-003 |
— | ||
|
25
|
25
38300-SE3-004 Relay assyTURN SIGNAL & HAZARD (166500-0060) (DENSO) |
38300-SE3-004 |
US $48 |
||
|
25
|
25
38300-SE3-003 Relay assyTURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
38300-SE3-003 |
US $42.50 |
||
|
26
|
26
38380-SM4-A01 Control unitAUTO DOOR LOCK (MITSUBA) |
38380-SM4-A01 |
US $151.04 |
||
|
26
|
26
38380-SM1-A01
Control unit
|
38380-SM1-A01 |
— | ||
|
27
|
27
38600-SM1-A01
Control unit
|
38600-SM1-A01 |
— | ||
|
27
|
27
38600-SM4-A01
Control unit
|
38600-SM4-A01 |
— | ||
|
28
|
28
39400-SM4-003 Relay assyMAIN (MITSUBA) (RZ-0088) |
39400-SM4-003 |
US $55.42 |
||
|
30
|
30
39700-SM1-A01 Clock assyDIGITAL (BORG) |
39700-SM1-A01 |
US $378.88 |
||
|
32
|
32
39762-SB0-004
Relay assy
|
39762-SB0-004 |
— | ||
|
33
|
33
39762-SG0-003 Relay assyPOWER (5P) (DENSO) (056700-8160) |
39762-SG0-003 |
US $37.76 |
||
|
34
|
34
39781-SM5-A00
Cover
|
39781-SM5-A00 |
— | ||
|
35
|
35
39792-SM1-A01 Relay assyPOWER (4P) (UNITED TECHNOLOGIES) |
39792-SM1-A01 |
US $41.73 |
||
|
36
|
36
39792-SM4-003 Relay assyPOWER (4P NO.305) (DENSO) (056700-9340) |
39792-SM4-003 |
US $35.20 |
||
|
36
|
36
39792-SM4-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-49H) |
39792-SM4-004 |
US $34.18 |
||
|
38
|
38
39793-SE3-003 Relay assyPOWER (5P) (MITSUBA) |
39793-SE3-003 |
US $37.13 |
||
|
38
|
38
39793-SE3-004 Relay assyPOWER (5P) (058700-1081) (DENSO) |
39793-SE3-004 |
US $35.46 |
||
|
40
|
40
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
40
|
40
39794-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2203) |
39794-SE0-004 |
US $20.61 |
||
|
41
|
41
39794-SM1-A02
Seatbelt unit
|
39794-SM1-A02 |
— | ||
|
45
|
45
39797-SM4-003 Relay assyPOWER (4P) (MITSUBA) (RC-2223) |
39797-SM4-003 |
US $26.75 |
||
|
46
|
46
93903-45280 ScrewTAPPING, 5X12 |
93903-45280 |
from US $0.37 |
||
|
47
|
47
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
48
|
48
90122-SM4-003 Screw-washer5X12 |
90122-SM4-003 |
US $1.82 |
||
|
49
|
49
90137-SF1-000 Bolt-washer6X25 |
90137-SF1-000 |
US $2.12 |
||
|
50
|
50
90138-SM4-003 Bolt-washer8X14 |
90138-SM4-003 |
US $1.75 |
||
|
51
|
51
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
52
|
52
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
53
|
53
90182-SB6-000 Bolt-washer6X16 |
90182-SB6-000 |
from US $1.92 |
||
|
54
|
54
90301-SM4-901 NutSPRING, 6MM |
90301-SM4-901 |
from US $2.41 |
||
|
56
|
56
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
57
|
57
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
59
|
59
93405-060-160-7 Bolt-washer6X16 |
93405-060-160-7 |
from US $0.59 |
||
|
60
|
60
90138-SM4-003 Bolt-washer8X14 |
90138-SM4-003 |
US $1.75 |
||
|
61
|
61
32502-SM4-003 FuseF7.5) (LITTEL |
32502-SM4-003 |
US $1.68 |
||
