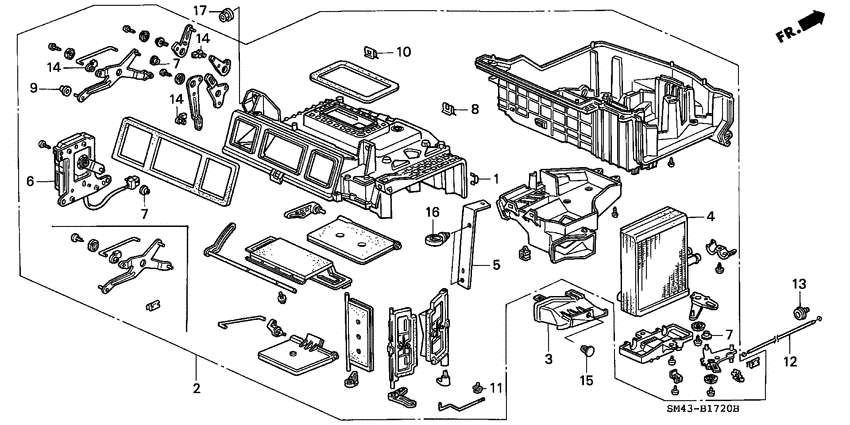

Heater unit Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KB
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
2
|
2
79100-SM5-A01 Heater unitDENSO |
79100-SM5-A01 |
US $864 |
||
|
3
|
3
79105-SM4-A01
Case
|
79105-SM4-A01 |
— | ||
|
4
|
4
79110-SM4-A01
Core comp
|
79110-SM4-A01 |
— | ||
|
6
|
6
79150-SM4-A01
Motor assy.
|
79150-SM4-A01 |
— | ||
|
7
|
7
79192-SD4-003 Bush6.7MM |
79192-SD4-003 |
US $2.45 |
||
|
8
|
8
79192-SM4-003
Holder a
|
79192-SM4-003 |
— | ||
|
9
|
9
79193-SD4-003
Bush
|
79193-SD4-003 |
— | ||
|
10
|
10
79193-SM4-003
Holder b
|
79193-SM4-003 |
— | ||
|
11
|
11
79196-SF1-003
Adjuster
|
79196-SF1-003 |
— | ||
|
12
|
12
79544-SM1-A11 CableWATER VALVE CONTROL (ACCO) |
79544-SM1-A11 |
US $11.76 |
||
|
13
|
13
79770-SE0-000 GrommetWATER VALVE CABLE |
79770-SE0-000 |
US $2.59 |
||
|
14
|
14
80789-SH3-003 HolderROD |
80789-SH3-003 |
US $2.38 |
||
|
15
|
15
90657-671-631 ClipTRIM (BLACK) |
90657-671-631 |
from US $2.24 |
||
|
17
|
17
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
