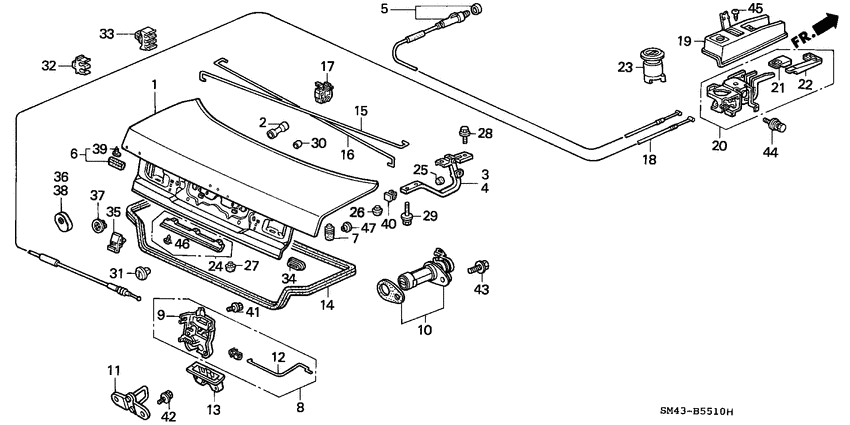

Trunk lid Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KB
- left-hand drive
- +
- made in usa
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68500-SM4-V70ZZ
Lid comp
|
68500-SM4-V70ZZ |
— | ||
|
3
|
3
68610-SM4-A00ZZ
Hinge comp
|
68610-SM4-A00ZZ |
— | ||
|
4
|
4
68660-SM4-A00ZZ
Hinge comp
|
68660-SM4-A00ZZ |
— | ||
|
5
|
5
74411-SM1-A00
Cable
|
74411-SM1-A00 |
— | ||
|
6
|
6
74826-SM4-000
Protector
|
74826-SM4-000 |
— | ||
|
7
|
7
74827-SM4-003
Stopper
|
74827-SM4-003 |
— | ||
|
8
|
8
74850-SM4-G01
Lock assy
|
74850-SM4-G01 |
— | ||
|
10
|
10
74861-SM4-003
Cylinder
|
74861-SM4-003 |
— | ||
|
11
|
11
74862-SE3-003
Striker
|
74862-SE3-003 |
— | ||
|
12
|
12
74863-SM4-G00
Rod
|
74863-SM4-G00 |
— | ||
|
13
|
13
74864-SM4-003
Cover
|
74864-SM4-003 |
— | ||
|
14
|
14
74865-SM4-000
Weatherstrip
|
74865-SM4-000 |
— | ||
|
15
|
15
74871-SM4-000
Spring
|
74871-SM4-000 |
— | ||
|
16
|
16
74872-SM4-000
Spring
|
74872-SM4-000 |
— | ||
|
17
|
17
74873-SM4-003 ClipTRUNK OPENER SPRING |
74873-SM4-003 |
from US $2.95 |
||
|
18
|
18
74880-SM1-A01 CableTRUNK OPENER |
74880-SM1-A01 |
US $45.57 |
||
|
19
|
19
74881-SM4-A01ZF
Cover
|
74881-SM4-A01ZF |
— | ||
|
19
|
19
74881-SM4-A01ZC
Cover
|
74881-SM4-A01ZC |
— | ||
|
19
|
19
74881-SM4-A01ZB
Cover
|
74881-SM4-A01ZB |
— | ||
|
19
|
19
74881-SM4-A01ZD
Cover
|
74881-SM4-A01ZD |
— | ||
|
20
|
20
74882-SM4-A01ZB
Opener assy
|
74882-SM4-A01ZB |
— | ||
|
20
|
20
74882-SM4-A01ZD
Opener assy
|
74882-SM4-A01ZD |
— | ||
|
20
|
20
74882-SM4-A01ZF
Opener assy
|
74882-SM4-A01ZF |
— | ||
|
20
|
20
74882-SM4-A01ZC
Opener assy
|
74882-SM4-A01ZC |
— | ||
|
21
|
21
74883-SM4-003ZF
Knob assy
|
74883-SM4-003ZF |
— | ||
|
21
|
21
74883-SM4-003ZC
Knob assy
|
74883-SM4-003ZC |
— | ||
|
21
|
21
74883-SM4-003ZE
Knob assy
|
74883-SM4-003ZE |
— | ||
|
21
|
21
74883-SM4-003ZB
Knob assy
|
74883-SM4-003ZB |
— | ||
|
22
|
22
74884-SM4-A01ZB
Knob assy
|
74884-SM4-A01ZB |
— | ||
|
22
|
22
74884-SM4-A01ZD
Knob assy
|
74884-SM4-A01ZD |
— | ||
|
22
|
22
74884-SM4-A01ZF
Knob assy
|
74884-SM4-A01ZF |
— | ||
|
22
|
22
74884-SM4-A01ZC
Knob assy
|
74884-SM4-A01ZC |
— | ||
|
23
|
23
74886-SH4-A03 CylinderTRUNK REMOTE CONTROL |
74886-SH4-A03 |
US $41.73 |
||
|
25
|
25
83418-SG3-003
Cushion
|
83418-SG3-003 |
— | ||
|
26
|
26
83431-SA4-000 CushionFR. TRUNK |
83431-SA4-000 |
US $2.86 |
||
|
27
|
27
85267-671-000 CushionTAILGATE |
85267-671-000 |
US $4.06 |
||
|
28
|
28
90106-SE3-000
Bolt-washer
|
90106-SE3-000 |
— | ||
|
29
|
29
90109-SM4-000 BoltSPECIAL, 6X35 |
90109-SM4-000 |
US $1.40 |
||
|
31
|
31
90661-SC7-003 GrommetSCREW, 5MM |
90661-SC7-003 |
from US $1.31 |
||
|
32
|
32
90691-SC5-003
Clip A
|
90691-SC5-003 |
— | ||
|
33
|
33
90691-SF1-003 Clip cOPENER CABLE |
90691-SF1-003 |
US $3.15 |
||
|
34
|
34
90851-SK7-003
Plug
|
90851-SK7-003 |
— | ||
|
35
|
35
91503-SM4-003
Clip
|
91503-SM4-003 |
— | ||
|
39
|
39
91516-SM4-013 ClipRR. COMBINATION PROTECTOR |
91516-SM4-013 |
US $1.12 |
||
|
40
|
40
91517-SM4-003
Cap
|
91517-SM4-003 |
— | ||
|
41
|
41
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
42
|
42
90101-SM3-003 Screw-washer6X14 |
90101-SM3-003 |
US $1.26 |
||
|
43
|
43
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
44
|
44
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
44
|
44
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
45
|
45
93903-44180 ScrewTAPPING, 4X8 |
93903-44180 |
US $0.37 |
||
|
47
|
47
95550-15000 PlugBLIND, 15MM |
95550-15000 |
US $1.55 |
||
