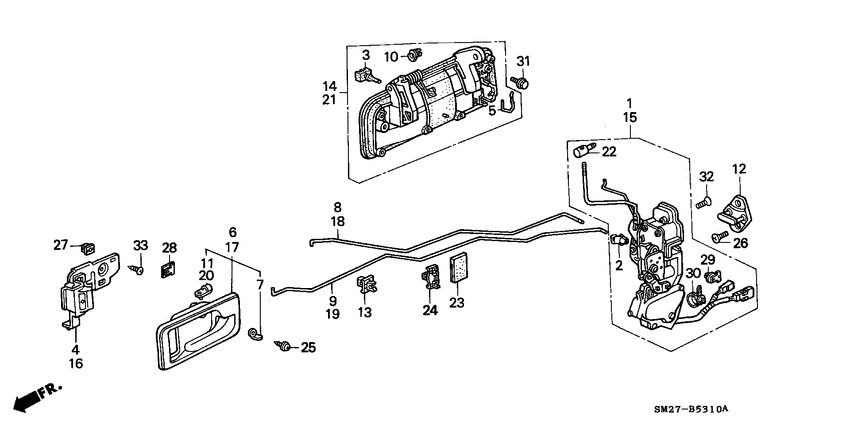

Front door locks Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I
- area code
- KG
- left-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72110-SM2-C12
Lock assy
|
72110-SM2-C12 |
— | ||
|
2
|
2
72116-SM4-003
Snap d
|
72116-SM4-003 |
— | ||
|
3
|
3
72119-SM1-003
Stopper a
|
72119-SM1-003 |
— | ||
|
4
|
4
72120-SM2-003ZB
Knob assy
|
72120-SM2-003ZB |
— | ||
|
5
|
5
72123-SR0-003 RingOUTSIDE HANDLE |
72123-SR0-003 |
US $1.40 |
||
|
6
|
6
72125-SM2-A01ZB CaseR. FR. INSIDE *NH89L* |
72125-SM2-A01ZB |
US $35.33 |
||
|
7
|
7
72126-SM4-003ZB
Cap
|
72126-SM4-003ZB |
— | ||
|
8
|
8
72131-SM2-003
Rod
|
72131-SM2-003 |
— | ||
|
9
|
9
72132-SM2-A01
Rod
|
72132-SM2-A01 |
— | ||
|
10
|
10
72134-SM1-003 BushOUTSIDE HANDLE JOINT |
72134-SM1-003 |
from US $1.30 |
||
|
11
|
11
72134-SM4-003
Snap
|
72134-SM4-003 |
— | ||
|
12
|
12
72135-SM4-003
Striker assy
|
72135-SM4-003 |
— | ||
|
13
|
13
72136-SM4-003 HolderROD, 4MM |
72136-SM4-003 |
from US $1.66 |
||
|
14
|
14
72140-SM4-J01
Handle assy
|
72140-SM4-J01 |
— | ||
|
15
|
15
72150-SM2-G01
Lock assy
|
72150-SM2-G01 |
— | ||
|
16
|
16
72160-SM2-003ZB
Knob assy
|
72160-SM2-003ZB |
— | ||
|
17
|
17
72165-SM2-A01ZB CaseL. FR. INSIDE *NH89L* |
72165-SM2-A01ZB |
US $35.33 |
||
|
18
|
18
72171-SM2-003
Rod
|
72171-SM2-003 |
— | ||
|
19
|
19
72172-SM2-A01
Rod
|
72172-SM2-A01 |
— | ||
|
20
|
20
72174-SM4-003
Snap
|
72174-SM4-003 |
— | ||
|
21
|
21
72180-SM4-J01
Handle assy
|
72180-SM4-J01 |
— | ||
|
22
|
22
75411-634-000 Joint |
75411-634-000 |
US $2.52 |
||
|
23
|
23
75513-SB2-000 CushionLOCK ROD (35MMX58MM) |
75513-SB2-000 |
US $2.24 |
||
|
24
|
24
75551-SF1-003
Holder
|
75551-SF1-003 |
— | ||
|
25
|
25
90111-SA0-000 ScrewTAPPING, 4X8 |
90111-SA0-000 |
US $3.40 |
||
|
26
|
26
90130-SM4-000 BoltLOCK STRIKER |
90130-SM4-000 |
US $1.68 |
||
|
27
|
27
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
28
|
28
91554-SM4-003 HolderBRACKET (RED) |
91554-SM4-003 |
from US $2.52 |
||
|
29
|
29
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
30
|
30
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
31
|
31
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
32
|
32
93600-060-350-H ScrewFLAT, 6X35 |
93600-060-350-H |
US $0.52 |
||
|
33
|
33
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
