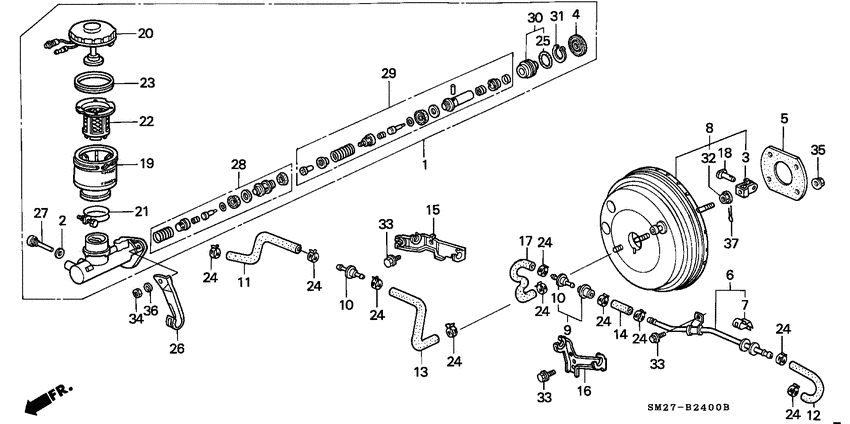

Brake master cylinder/ master power Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
46100-SM4-G52 Cylinder assy.MASTER |
46100-SM4-G52 |
US $334.08 |
||
2
|
2
46138-SM4-003 Packing |
46138-SM4-003 |
from US $2.66 |
||
3
|
3
46151-SE0-003 YokePUSH ROD(NISSIN) |
46151-SE0-003 |
US $14.03 |
||
4
|
4
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.26 |
||
5
|
5
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $4.13 |
||
8
|
8
46400-SM4-951
Power assy.
|
46400-SM4-951 |
— | ||
10
|
10
46403-SE0-003 Valve comp.CHECK (NISSIN) |
46403-SE0-003 |
US $21.38 |
||
11
|
11
46404-SM1-A01
Tube a
|
46404-SM1-A01 |
— | ||
13
|
13
46405-SM1-A01
Tube b
|
46405-SM1-A01 |
— | ||
15
|
15
46407-SM4-A80
Clamp
|
46407-SM4-A80 |
— | ||
18
|
18
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $3.36 |
||
19
|
19
46660-SM4-003
Tank
|
46660-SM4-003 |
— | ||
20
|
20
46662-SM4-003 Cap comp.RESERVE TANK |
46662-SM4-003 |
US $47.74 |
||
21
|
21
46665-671-651 BandRESERVE TANK |
46665-671-651 |
US $6.30 |
||
22
|
22
46666-SE3-013
Filter
|
46666-SE3-013 |
— | ||
23
|
23
46669-SE3-003 SealRESERVE TANK |
46669-SE3-003 |
US $7.98 |
||
24
|
24
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $2.94 |
||
25
|
25
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
27
|
27
57515-SM4-013 Bolt compSTOPPER |
57515-SM4-013 |
US $4.13 |
||
28
|
28
57520-SD4-013 Piston assy.PRIMARY |
57520-SD4-013 |
US $42.75 |
||
29
|
29
57540-SD4-013 Piston assy.SECONDARY |
57540-SD4-013 |
US $42.75 |
||
30
|
30
57560-SD4-003 Guide assyPISTON |
57560-SD4-003 |
US $17.28 |
||
31
|
31
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
32
|
32
90201-SM4-950 NutFLANGE, 8MM |
90201-SM4-950 |
US $2.75 |
||
33
|
33
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.65 |
||
34
|
34
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
replacement | |||||
34
|
34
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.41 |
||
35
|
35
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
36
|
36
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.36 |
||
37
|
37
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
