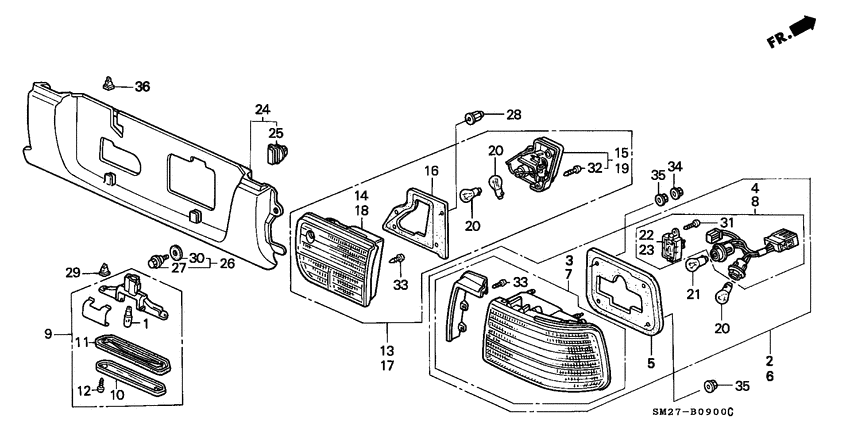

Taillight Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
2
|
2
33500-SM4-E03
Taillight assy.
|
33500-SM4-E03 |
— | ||
|
2
|
2
33500-SM4-G03
Taillight assy.
|
33500-SM4-G03 |
— | ||
|
3
|
3
33501-SM4-G01
Lamp unit
|
33501-SM4-G01 |
— | ||
|
4
|
4
33502-SM4-E02
Cord comp
|
33502-SM4-E02 |
— | ||
|
4
|
4
33502-SM4-G02
Cord comp
|
33502-SM4-G02 |
— | ||
|
5
|
5
33503-SM4-013
Gasket
|
33503-SM4-013 |
— | ||
|
6
|
6
33550-SM4-E03
Taillight assy.
|
33550-SM4-E03 |
— | ||
|
6
|
6
33550-SM4-G03
Taillight assy.
|
33550-SM4-G03 |
— | ||
|
7
|
7
33551-SM4-G01
Lamp unit
|
33551-SM4-G01 |
— | ||
|
8
|
8
33552-SM4-G02
Cord comp
|
33552-SM4-G02 |
— | ||
|
8
|
8
33552-SM4-E02
Cord comp
|
33552-SM4-E02 |
— | ||
|
9
|
9
34100-SM4-G02
Light assy
|
34100-SM4-G02 |
— | ||
|
10
|
10
34101-SM4-013
Lens
|
34101-SM4-013 |
— | ||
|
11
|
11
34103-SM4-003
Seal
|
34103-SM4-003 |
— | ||
|
12
|
12
34104-SE3-A01
Screw
|
34104-SE3-A01 |
— | ||
|
13
|
13
34150-SM4-G03
Light assy
|
34150-SM4-G03 |
— | ||
|
14
|
14
34151-SM4-G03
Housing comp
|
34151-SM4-G03 |
— | ||
|
15
|
15
34152-SM4-G02
Cover & cord comp.
|
34152-SM4-G02 |
— | ||
|
16
|
16
34153-SM4-013
Gasket
|
34153-SM4-013 |
— | ||
|
17
|
17
34155-SM4-G03
Light assy
|
34155-SM4-G03 |
— | ||
|
18
|
18
34156-SM4-G03
Housing comp
|
34156-SM4-G03 |
— | ||
|
19
|
19
34157-SM4-G02
Cover & cord comp.
|
34157-SM4-G02 |
— | ||
|
20
|
20
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
21
|
21
34911-634-611 Bulb12V 21/5W) (ECE) (STANLEY |
34911-634-611 |
from US $2.96 |
||
|
22
|
22
37540-SM4-E01
Sensor
|
37540-SM4-E01 |
— | ||
|
23
|
23
37540-SM4-G02
Sensor, Stop lamp failure
|
37540-SM4-G02 |
— | ||
|
24
|
24
74890-SM4-G00ZG
Garnish
|
74890-SM4-G00ZG |
— | ||
|
24
|
24
74890-SM4-G00ZL
Garnish
|
74890-SM4-G00ZL |
— | ||
|
24
|
24
74890-SM4-G00ZB
Garnish
|
74890-SM4-G00ZB |
— | ||
|
24
|
24
74890-SM4-G00ZH
Garnish
|
74890-SM4-G00ZH |
— | ||
|
24
|
24
74890-SM4-G00ZD
Garnish
|
74890-SM4-G00ZD |
— | ||
|
25
|
25
75525-SD4-013 ClipRR. PANEL GARNISH |
75525-SD4-013 |
US $4.66 |
||
|
26
|
26
90102-SM4-000
Bolt
|
90102-SM4-000 |
— | ||
|
27
|
27
90141-SA7-003 BoltBUMPER |
90141-SA7-003 |
from US $2.38 |
||
|
28
|
28
90301-SE0-902
Nut
|
90301-SE0-902 |
— | ||
|
29
|
29
90521-SE3-003 GrommetSCREW, 4MM |
90521-SE3-003 |
US $1.96 |
||
|
30
|
30
90540-SA7-000 WasherBUMPER |
90540-SA7-000 |
from US $1.47 |
||
|
31
|
31
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
32
|
32
93901-34520 ScrewTAPPING, 4X20 |
93901-34520 |
from US $0.37 |
||
|
33
|
33
93911-14220 ScrewTAPPING, 4X12 |
93911-14220 |
US $0.37 |
||
|
34
|
34
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
|
35
|
35
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
36
|
36
90521-SE3-003 GrommetSCREW, 4MM |
90521-SE3-003 |
US $1.96 |
