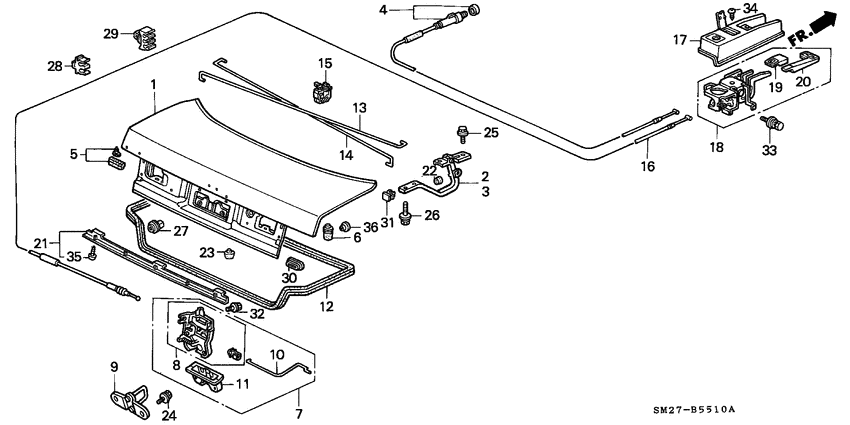

Trunk lid Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68500-SM4-V71ZZ
Lid comp
|
68500-SM4-V71ZZ |
— | ||
|
2
|
2
68610-SM4-A00ZZ
Hinge comp
|
68610-SM4-A00ZZ |
— | ||
|
3
|
3
68660-SM4-A01ZZ
Hinge comp
|
68660-SM4-A01ZZ |
— | ||
|
4
|
4
74411-SM1-A01 CableFUEL LID OPENER |
74411-SM1-A01 |
US $44.67 |
||
|
5
|
5
74826-SM4-J00
Stopper
|
74826-SM4-J00 |
— | ||
|
6
|
6
74827-SM4-003
Stopper
|
74827-SM4-003 |
— | ||
|
7
|
7
74850-SM4-G01
Lock assy
|
74850-SM4-G01 |
— | ||
|
9
|
9
74862-SE3-003
Striker
|
74862-SE3-003 |
— | ||
|
10
|
10
74863-SM4-G00
Rod
|
74863-SM4-G00 |
— | ||
|
11
|
11
74864-SM4-003
Cover
|
74864-SM4-003 |
— | ||
|
12
|
12
74865-SM4-000
Weatherstrip
|
74865-SM4-000 |
— | ||
|
13
|
13
74871-SM4-V50
Spring
|
74871-SM4-V50 |
— | ||
|
14
|
14
74872-SM4-V50
Spring
|
74872-SM4-V50 |
— | ||
|
15
|
15
74873-SM4-003 ClipTRUNK OPENER SPRING |
74873-SM4-003 |
from US $2.95 |
||
|
16
|
16
74880-SM1-A01 CableTRUNK OPENER |
74880-SM1-A01 |
US $45.57 |
||
|
17
|
17
74881-SM4-A01ZB
Cover
|
74881-SM4-A01ZB |
— | ||
|
18
|
18
74882-SM4-A01ZB
Opener assy
|
74882-SM4-A01ZB |
— | ||
|
19
|
19
74883-SM4-003ZB
Knob assy
|
74883-SM4-003ZB |
— | ||
|
20
|
20
74884-SM4-A01ZB
Knob assy
|
74884-SM4-A01ZB |
— | ||
|
21
|
21
74895-SM4-G01
Molding
|
74895-SM4-G01 |
— | ||
|
22
|
22
83418-SG3-003
Cushion
|
83418-SG3-003 |
— | ||
|
23
|
23
85267-671-000 CushionTAILGATE |
85267-671-000 |
US $4.06 |
||
|
24
|
24
90101-SM3-003 Screw-washer6X14 |
90101-SM3-003 |
US $1.26 |
||
|
25
|
25
90106-SE3-000
Bolt-washer
|
90106-SE3-000 |
— | ||
|
26
|
26
90109-SM4-000 BoltSPECIAL, 6X35 |
90109-SM4-000 |
US $1.40 |
||
|
27
|
27
90661-SC7-003 GrommetSCREW, 5MM |
90661-SC7-003 |
from US $1.31 |
||
|
28
|
28
90691-SC5-003
Clip A
|
90691-SC5-003 |
— | ||
|
29
|
29
90691-SF1-003 Clip cOPENER CABLE |
90691-SF1-003 |
US $3.15 |
||
|
30
|
30
90851-SK7-003
Plug
|
90851-SK7-003 |
— | ||
|
31
|
31
91517-SM4-003
Cap
|
91517-SM4-003 |
— | ||
|
32
|
32
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
33
|
33
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
34
|
34
93903-44180 ScrewTAPPING, 4X8 |
93903-44180 |
US $0.37 |
||
|
35
|
35
93903-444J0 ScrewTAPPING, 4X16 |
93903-444J0 |
US $0.67 |
||
|
36
|
36
95550-15000 PlugBLIND, 15MM |
95550-15000 |
US $1.55 |
