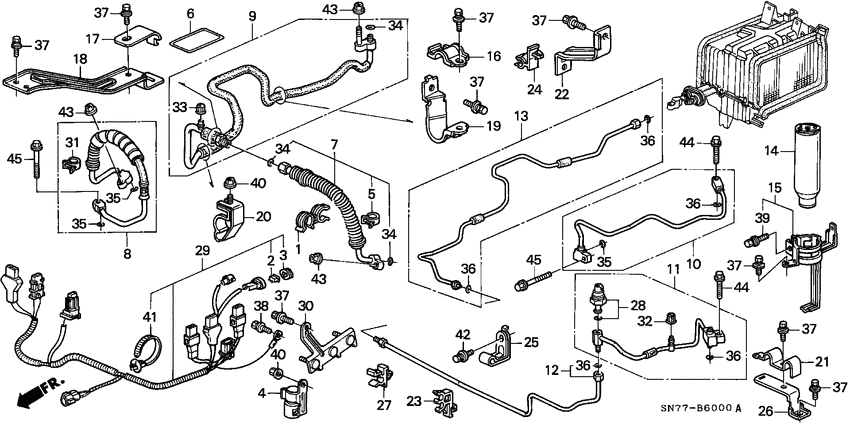

Air conditioner (HOSES/PIPES; LH; '93) Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0IES
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (manual)
- +
- srs driver
- +
- color bumper
- +
- headlight washer
- +
- plip remote
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17304-PT0-004 Clamp aHOT AIR PIPE |
17304-PT0-004 |
US $4.06 |
||
|
2
|
2
32147-SF1-003 ConnectorDIODE(3P) |
32147-SF1-003 |
from US $11.62 |
||
|
3
|
3
32148-SF1-003 RubberSEAL |
32148-SF1-003 |
US $2.17 |
||
|
4
|
4
39798-SE0-003
Relay assy
|
39798-SE0-003 |
— | ||
| replacement | |||||
|
4
|
4
80490-SM4-A01
Relay assy
|
80490-SM4-A01 |
— | ||
|
5
|
5
53796-SF1-951
Clamp
|
53796-SF1-951 |
— | ||
|
6
|
6
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.39 |
||
|
7
|
7
80311-SN7-G01
Hose comp.
|
80311-SN7-G01 |
— | ||
|
8
|
8
80315-SN7-E01
Hose comp.
|
80315-SN7-E01 |
— | ||
|
9
|
9
80321-SN7-G11
Pipe comp
|
80321-SN7-G11 |
— | ||
|
10
|
10
80331-SN7-E02
Pipe
|
80331-SN7-E02 |
— | ||
|
11
|
11
80341-SN7-G01
Pipe comp
|
80341-SN7-G01 |
— | ||
|
12
|
12
80342-SN7-G02
Pipe b
|
80342-SN7-G02 |
— | ||
|
13
|
13
80343-SN7-G11
Pipe comp
|
80343-SN7-G11 |
— | ||
|
14
|
14
80351-SN7-003 Receiver comp |
80351-SN7-003 |
US $135.68 |
||
|
15
|
15
80352-SM4-941
Bracket
|
80352-SM4-941 |
— | ||
|
16
|
16
80361-SM4-A00
Clamp
|
80361-SM4-A00 |
— | ||
|
17
|
17
80362-SM4-A00
Clamp
|
80362-SM4-A00 |
— | ||
|
18
|
18
80363-SM4-A00
Stay
|
80363-SM4-A00 |
— | ||
|
19
|
19
80364-SM4-A00
Stay
|
80364-SM4-A00 |
— | ||
|
20
|
20
80365-SM4-A00
Clamp
|
80365-SM4-A00 |
— | ||
|
21
|
21
80381-SM4-A00
Clamp
|
80381-SM4-A00 |
— | ||
|
22
|
22
80382-SM4-A00
Stay
|
80382-SM4-A00 |
— | ||
|
23
|
23
80383-SM4-003
Clip c
|
80383-SM4-003 |
— | ||
|
24
|
24
80384-SM4-A01 ClipRECEIVER PIPE(B) |
80384-SM4-A01 |
US $1.33 |
||
|
25
|
25
80385-SM4-A00
Clamp
|
80385-SM4-A00 |
— | ||
|
26
|
26
80386-SM4-A00
Stay
|
80386-SM4-A00 |
— | ||
|
27
|
27
80387-SM4-A01 ClipRECEIVER PIPE |
80387-SM4-A01 |
US $2.19 |
||
|
28
|
28
80440-SN7-901
Switch
|
80440-SN7-901 |
— | ||
|
29
|
29
80460-SM4-A05
Harness
|
80460-SM4-A05 |
— | ||
|
30
|
30
80491-SM4-A00
Bracket
|
80491-SM4-A00 |
— | ||
|
31
|
31
80493-SM4-000
Clamp
|
80493-SM4-000 |
— | ||
|
32
|
32
80865-SN7-003 Cap hVALVE |
80865-SN7-003 |
US $1.47 |
||
|
33
|
33
80866-SN7-003 Cap lVALVE |
80866-SN7-003 |
US $1.47 |
||
|
34
|
34
80871-SN7-003 O-ring5/8" |
80871-SN7-003 |
from US $2.28 |
||
|
35
|
35
80872-SN7-003 O-ring1/2" |
80872-SN7-003 |
from US $2.28 |
||
|
36
|
36
80873-SN7-003 O-ring8MM |
80873-SN7-003 |
from US $1.96 |
||
|
37
|
37
90003-PG7-660
Bolt-washer
|
90003-PG7-660 |
— | ||
| replacement | |||||
|
37
|
37
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.65 |
||
|
38
|
38
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $0.70 |
||
|
39
|
39
90199-SM4-000
Screw-washer
|
90199-SM4-000 |
— | ||
|
40
|
40
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
from US $2.03 |
||
|
41
|
41
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
42
|
42
93403-060-160-7 Bolt-washer6X16 |
93403-060-160-7 |
from US $0.59 |
||
|
43
|
43
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
44
|
44
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
45
|
45
95701-060-450-7 BoltFLANGE, 6X45 |
95701-060-450-7 |
from US $0.78 |
||
