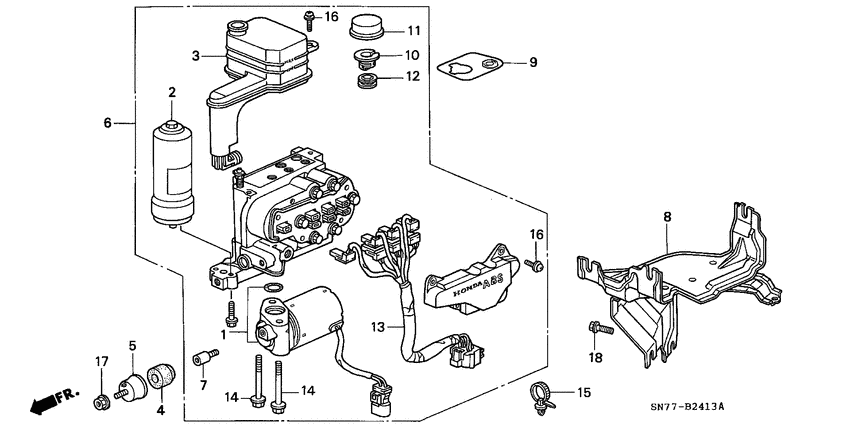

Abs modulator (RH; '94) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0IES
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
- leather seat
- +
- air conditioner (manual)
- +
- color bumper
- +
- headlight washer
- +
- plip remote
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57017-SN7-E01 Motor setABS |
57017-SN7-E01 |
US $320 |
||
|
2
|
2
57018-ST5-000
Accumulator set
|
57018-ST5-000 |
— | ||
|
3
|
3
57019-SN7-000
Tank set
|
57019-SN7-000 |
— | ||
|
4
|
4
57101-ST7-000
Rubber
|
57101-ST7-000 |
— | ||
|
5
|
5
57102-ST7-000
Holder
|
57102-ST7-000 |
— | ||
|
6
|
6
57110-SN7-Z01 Modulator assy |
57110-SN7-Z01 |
US $1,753.60 |
||
|
7
|
7
57112-ST5-010
Bolt
|
57112-ST5-010 |
— | ||
|
8
|
8
57115-SN7-950
Bracket
|
57115-SN7-950 |
— | ||
|
9
|
9
57119-SN7-003
Mark
|
57119-SN7-003 |
— | ||
|
10
|
10
57195-ST5-003
Cap
|
57195-ST5-003 |
— | ||
|
11
|
11
57196-ST5-003
Cap
|
57196-ST5-003 |
— | ||
|
12
|
12
57198-ST5-003
X-ring
|
57198-ST5-003 |
— | ||
|
13
|
13
57205-ST5-013
Cord comp
|
57205-ST5-013 |
— | ||
|
14
|
14
57365-ST5-003
Bolt
|
57365-ST5-003 |
— | ||
|
15
|
15
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
16
|
16
93891-050-141-8 Screw-washer5X14 |
93891-050-141-8 |
from US $0.44 |
||
| replacement | |||||
|
16
|
16
93891-050-140-8 Screw-washer5X14 |
93891-050-140-8 |
from US $0.44 |
||
|
17
|
17
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
18
|
18
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
