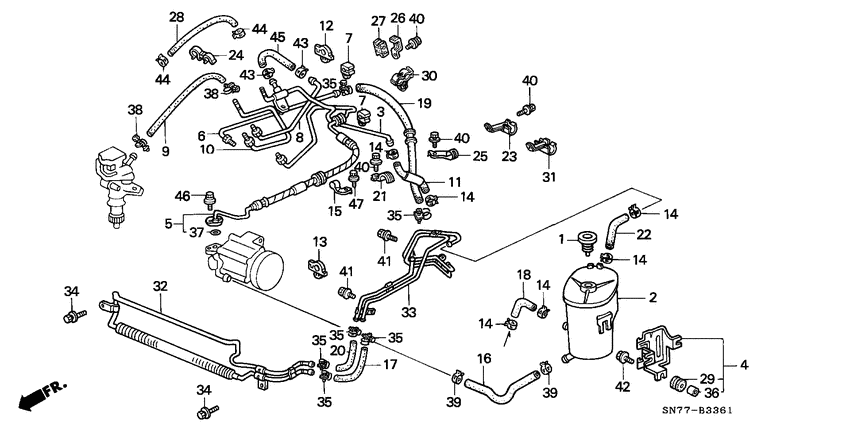

P.s. line (RH; -'94) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0IES
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
- leather seat
- +
- air conditioner (manual)
- +
- color bumper
- +
- headlight washer
- +
- plip remote
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53697-SK3-E01
Cap
|
53697-SK3-E01 |
— | ||
|
2
|
2
53701-SN7-003
Tank comp.
|
53701-SN7-003 |
— | ||
|
3
|
3
53703-SN7-000
Pipe comp. a
|
53703-SN7-000 |
— | ||
|
4
|
4
53711-SM4-010
Bracket assy
|
53711-SM4-010 |
— | ||
|
5
|
5
53713-SN7-003
Hose comp.
|
53713-SN7-003 |
— | ||
|
6
|
6
53720-SM4-060
Pipe
|
53720-SM4-060 |
— | ||
|
7
|
7
53723-SM4-013 ClipRETURN, 6MM |
53723-SM4-013 |
US $2.44 |
||
|
8
|
8
53724-SM4-010
Pipe comp
|
53724-SM4-010 |
— | ||
|
9
|
9
53725-SM4-030
Hose
|
53725-SM4-030 |
— | ||
|
10
|
10
53726-SM4-010
Pipe comp
|
53726-SM4-010 |
— | ||
|
11
|
11
53727-SM4-030
Tube a
|
53727-SM4-030 |
— | ||
|
12
|
12
53728-SM4-013 ClipRETURN PIPE, 10MM |
53728-SM4-013 |
US $2.66 |
||
|
13
|
13
53729-SE0-951
Clip
|
53729-SE0-951 |
— | ||
|
14
|
14
53729-SN7-000
Clamp
|
53729-SN7-000 |
— | ||
|
15
|
15
53730-SM4-J00
Clamp
|
53730-SM4-J00 |
— | ||
|
16
|
16
53731-SM4-030
Tube
|
53731-SM4-030 |
— | ||
|
17
|
17
53732-SM4-050
Hose
|
53732-SM4-050 |
— | ||
|
18
|
18
53733-SM4-000
Tube
|
53733-SM4-000 |
— | ||
|
19
|
19
53734-SM4-080
Hose
|
53734-SM4-080 |
— | ||
|
20
|
20
53735-SM4-050
Tube
|
53735-SM4-050 |
— | ||
|
21
|
21
53736-SM4-010
Holder b
|
53736-SM4-010 |
— | ||
|
22
|
22
53737-SM4-010
Tube
|
53737-SM4-010 |
— | ||
|
23
|
23
53739-SN7-000
Clamp b
|
53739-SN7-000 |
— | ||
|
24
|
24
53740-SE0-953 ClipSENSOR HOSE |
53740-SE0-953 |
from US $1.63 |
||
|
25
|
25
53740-SM4-000
Clamp
|
53740-SM4-000 |
— | ||
|
26
|
26
53741-SM4-010
Holder c
|
53741-SM4-010 |
— | ||
|
27
|
27
53742-SM4-010
Rubber
|
53742-SM4-010 |
— | ||
|
28
|
28
53745-SM4-000
Tube b
|
53745-SM4-000 |
— | ||
|
30
|
30
53753-SM4-013
Clip
|
53753-SM4-013 |
— | ||
|
31
|
31
53759-SN7-000
Clamp b
|
53759-SN7-000 |
— | ||
|
32
|
32
53765-SM4-070
Cooler comp
|
53765-SM4-070 |
— | ||
|
33
|
33
53779-SM4-904
Pipe comp
|
53779-SM4-904 |
— | ||
|
34
|
34
90188-SM4-000 BoltFLANGE, 6X12 (BLACK) |
90188-SM4-000 |
US $1.54 |
||
|
35
|
35
90635-SM4-A01
Clip
|
90635-SM4-A01 |
— | ||
| replacement | |||||
|
35
|
35
90635-SM4-A02 ClipOIL HOSE (MEIJI) |
90635-SM4-A02 |
from US $4.12 |
||
|
37
|
37
91370-SM4-003 O-ring11X1.9 (NOK) |
91370-SM4-003 |
US $2.66 |
||
|
37
|
37
91370-SM4-004 O-ring11X1.9 (ARAI) |
91370-SM4-004 |
from US $3.58 |
||
|
38
|
38
91410-SA1-950 ClipSENSOR HOSE |
91410-SA1-950 |
US $3.43 |
||
|
39
|
39
91462-SN7-000
Clamp d
|
91462-SN7-000 |
— | ||
|
40
|
40
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
41
|
41
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
42
|
42
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
43
|
43
95002-410-000-4 ClampTUBE (D10) |
95002-410-000-4 |
from US $0.74 |
||
|
44
|
44
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
45
|
45
95005-551-382-0
Tube
|
95005-551-382-0 |
— | ||
|
46
|
46
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
47
|
47
95801-060-120-8 BoltFLANGE, 6X12 |
95801-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
47
|
47
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
