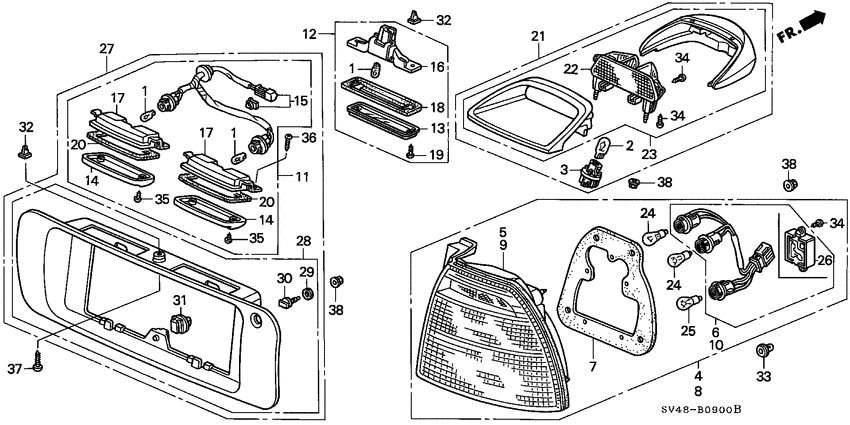

Taillight (1) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- area code
- KW
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
2
|
2
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.38 |
||
|
3
|
3
33304-SV4-A01
Socket comp.
|
33304-SV4-A01 |
— | ||
|
4
|
4
33500-SV4-Y01
Taillight assy.
|
33500-SV4-Y01 |
— | ||
|
5
|
5
33501-SV4-Q01
Lamp unit
|
33501-SV4-Q01 |
— | ||
|
6
|
6
33502-SV4-Y01
Socket comp.
|
33502-SV4-Y01 |
— | ||
|
7
|
7
33503-SV4-A01
Gasket
|
33503-SV4-A01 |
— | ||
|
8
|
8
33550-SV4-Y01
Taillight assy.
00000000 - 0C007327 |
33550-SV4-Y01 |
— | ||
|
8
|
8
33550-SV4-Y02
Taillight assy.
0C007328 - |
33550-SV4-Y02 |
— | ||
|
9
|
9
33551-SV4-Q01
Lamp unit
|
33551-SV4-Q01 |
— | ||
|
10
|
10
33552-SV4-Y02
Socket comp.
0C007328 - |
33552-SV4-Y02 |
— | ||
|
10
|
10
33552-SV4-Y01
Socket comp.
00000000 - 0C007327 |
33552-SV4-Y01 |
— | ||
|
12
|
12
34100-SS0-Q01
Light assy
|
34100-SS0-Q01 |
— | ||
|
13
|
13
34101-SS0-003
Lens
|
34101-SS0-003 |
— | ||
|
16
|
16
34102-SS0-003
Housing comp
|
34102-SS0-003 |
— | ||
|
18
|
18
34103-SS0-003
Seal
|
34103-SS0-003 |
— | ||
|
19
|
19
34104-SE3-A01
Screw
|
34104-SE3-A01 |
— | ||
|
21
|
21
34270-SV4-A01ZD
Light assy
|
34270-SV4-A01ZD |
— | ||
|
21
|
21
34270-SV4-A01ZB
Light assy
|
34270-SV4-A01ZB |
— | ||
|
22
|
22
34271-SV4-A01
Reflector comp.
|
34271-SV4-A01 |
— | ||
|
23
|
23
34274-SV4-A01ZB Lamp unit *nh178l* |
34274-SV4-A01ZB |
US $123.52 |
||
|
23
|
23
34274-SV4-A01ZD Lamp unit *y18l* |
34274-SV4-A01ZD |
US $123.52 |
||
|
24
|
24
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
25
|
25
34911-634-611 Bulb12V 21/5W) (ECE) (STANLEY |
34911-634-611 |
from US $2.96 |
||
|
26
|
26
37540-SM4-003 SensorSTOP LAMP FAILURE 0C007328 - |
37540-SM4-003 |
US $51.71 |
||
|
26
|
26
37540-SV4-A01
Sensor
00000000 - 0C007327 |
37540-SV4-A01 |
— | ||
|
28
|
28
74890-SV4-A00ZG
Garnish assy
|
74890-SV4-A00ZG |
— | ||
|
28
|
28
74890-SV4-A00ZJ
Garnish assy
|
74890-SV4-A00ZJ |
— | ||
|
28
|
28
74890-SV4-A00ZD
Garnish assy
|
74890-SV4-A00ZD |
— | ||
|
28
|
28
74890-SV4-A00ZF
Garnish assy
|
74890-SV4-A00ZF |
— | ||
|
28
|
28
74890-SV4-A00ZH
Garnish assy
|
74890-SV4-A00ZH |
— | ||
|
29
|
29
75523-SS0-000 PackingSEAL |
75523-SS0-000 |
US $0.98 |
||
|
30
|
30
75524-SS0-000 BoltSPECIAL, 5MM |
75524-SS0-000 |
US $2.60 |
||
|
31
|
31
75525-SD4-013 ClipRR. PANEL GARNISH |
75525-SD4-013 |
US $4.66 |
||
|
32
|
32
90521-SS0-003 GrommetSPECIAL SCREW (M4) (YELLOW) |
90521-SS0-003 |
US $1.82 |
||
|
33
|
33
90665-SS0-003 GrommetRR. COMBINATION |
90665-SS0-003 |
US $1.54 |
||
|
34
|
34
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
37
|
37
93903-444J0 ScrewTAPPING, 4X16 |
93903-444J0 |
US $0.67 |
||
|
38
|
38
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
