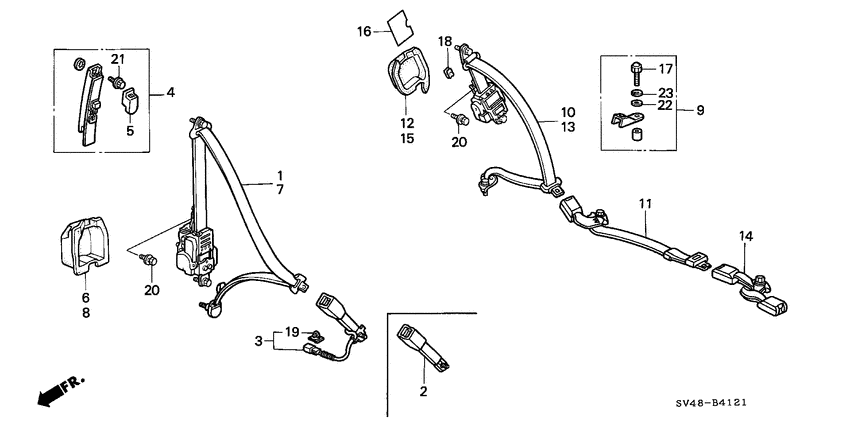

Seatbelts (2) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- abs
- +
- area code
- KR
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81450-SV4-Q02ZA
Tongue
|
81450-SV4-Q02ZA |
— | ||
|
2
|
2
81455-SM4-G01ZA BuckleFR. SEATBELT INNER (NIPPON SEIKO) *NH178L* |
81455-SM4-G01ZA |
US $65.28 |
||
|
3
|
3
81455-SV4-Q02ZA
Buckle
|
81455-SV4-Q02ZA |
— | ||
|
4
|
4
81460-SM4-J02ZJ AdjusterSHOULDER SLIDE *NH220L* |
81460-SM4-J02ZJ |
US $43.39 |
||
|
5
|
5
81461-SM4-J01ZP
Cover
|
81461-SM4-J01ZP |
— | ||
|
6
|
6
81491-SV4-000
Protector
|
81491-SV4-000 |
— | ||
|
7
|
7
81850-SV4-Q02ZA
Tongue
|
81850-SV4-Q02ZA |
— | ||
|
8
|
8
81891-SV4-000
Protector
|
81891-SV4-000 |
— | ||
|
10
|
10
82450-SV4-Q02ZA
Outer assy
|
82450-SV4-Q02ZA |
— | ||
|
11
|
11
82455-SV4-Q02ZA
Seatbelt assy.
|
82455-SV4-Q02ZA |
— | ||
|
12
|
12
82491-SV4-000
Protector
|
82491-SV4-000 |
— | ||
|
13
|
13
82850-SV4-Q02ZA
Outer assy
|
82850-SV4-Q02ZA |
— | ||
|
14
|
14
82855-SV4-Q02ZA
Seatbelt assy.
|
82855-SV4-Q02ZA |
— | ||
|
15
|
15
82891-SV4-000
Protector
|
82891-SV4-000 |
— | ||
|
16
|
16
84136-SM4-A00
Seal
|
84136-SM4-A00 |
— | ||
|
18
|
18
90301-SS0-000 NutCLIP, 6MM |
90301-SS0-000 |
US $2.10 |
||
|
19
|
19
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
20
|
20
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
21
|
21
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
