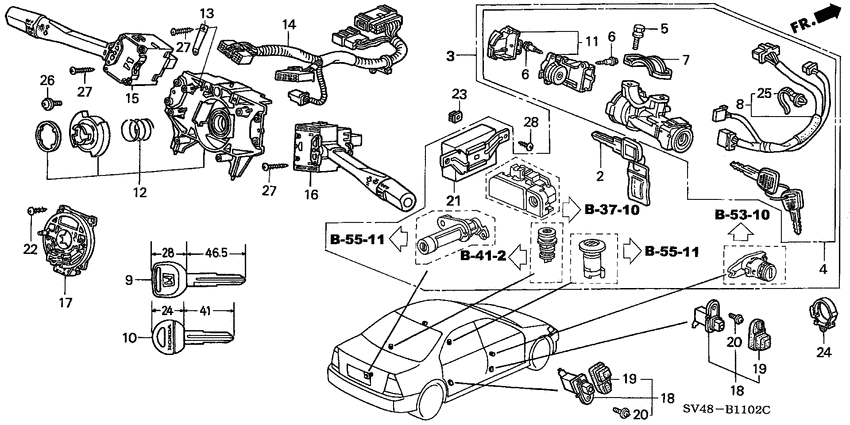

Combination switch (3) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX-R
- abs
- +
- area code
- KR
- left-hand drive
- +
- sunroof
- +
- auto cruise
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
06350-SV4-R01ZA
Cylinder set
|
06350-SV4-R01ZA |
— | ||
|
4
|
4
35100-SV4-P13
Lock assy
|
35100-SV4-P13 |
— | ||
|
5
|
5
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
6
|
6
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
7
|
7
35108-SV4-A01
Holder
|
35108-SV4-A01 |
— | ||
|
8
|
8
35110-SV4-P11 Harness comp.IGNITION WIRE |
35110-SV4-P11 |
US $54.27 |
||
|
9
|
9
35113-SM4-901 KeyBLANK (MAIN) |
35113-SM4-901 |
US $8.58 |
||
|
10
|
10
35114-SL0-901
Key
|
35114-SL0-901 |
— | ||
|
11
|
11
35130-SV4-003
Switch comp
|
35130-SV4-003 |
— | ||
|
12
|
12
35251-SW5-003
Body
|
35251-SW5-003 |
— | ||
|
14
|
14
35254-SV4-A52 Cord assyCOMBINATION SWITCH |
35254-SV4-A52 |
US $53.50 |
||
|
15
|
15
35255-SX0-G01
Switch assy
|
35255-SX0-G01 |
— | ||
|
16
|
16
35256-SM4-G81
Switch assy
|
35256-SM4-G81 |
— | ||
|
18
|
18
35400-SL4-013 Switch assyDOOR 0C206357 - |
35400-SL4-013 |
US $30.29 |
||
|
18
|
18
35400-SL4-003
Switch assy
00000000 - 0C206356 |
35400-SL4-003 |
— | ||
|
19
|
19
35401-SL4-003 CoverDOOR SWITCH |
35401-SL4-003 |
from US $4.62 |
||
|
20
|
20
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
24
|
24
90690-SA0-003 StrapWIRE HARNESS, 25MM (BLACK) |
90690-SA0-003 |
from US $9.60 |
||
|
25
|
25
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
26
|
26
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
27
|
27
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
