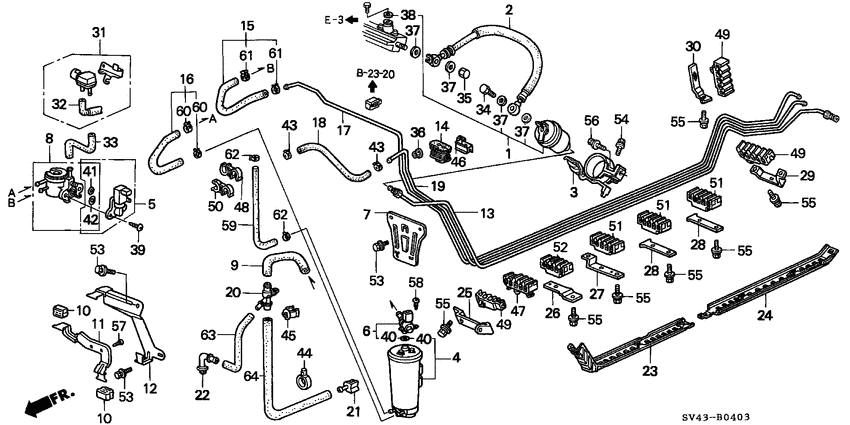

Fuel pipe (4) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-932
Strainer set
|
16010-ST5-932 |
— | ||
|
2
|
2
16720-P0A-A02
Hose comp.
TA053232 - |
16720-P0A-A02 |
— | ||
|
2
|
2
16720-P0A-A01
Hose comp.
00000000 - TA053231 |
16720-P0A-A01 |
— | ||
| replacement | |||||
|
2
|
2
16720-P0A-A02
Hose comp.
00000000 - TA053231 |
16720-P0A-A02 |
— | ||
|
3
|
3
16918-SV4-A30
Stay
|
16918-SV4-A30 |
— | ||
|
4
|
4
17011-SV1-L31
Canister assy
|
17011-SV1-L31 |
— | ||
|
5
|
5
17012-SV4-L30
Valve set
|
17012-SV4-L30 |
— | ||
|
6
|
6
17310-SV4-L32
Valve
|
17310-SV4-L32 |
— | ||
|
7
|
7
17358-SV1-L01
Bracket
|
17358-SV1-L01 |
— | ||
|
8
|
8
17371-SV4-L31
Valve
|
17371-SV4-L31 |
— | ||
|
9
|
9
17372-SV1-L30
Tube
|
17372-SV1-L30 |
— | ||
|
10
|
10
17381-SV4-L30 MountBYPASS SOLENOID RUBBER |
17381-SV4-L30 |
US $2.94 |
||
|
11
|
11
17382-SV4-L30 BracketBYPASS SOLENOID |
17382-SV4-L30 |
US $7.98 |
||
|
12
|
12
17383-SV4-L30
Bracket
|
17383-SV4-L30 |
— | ||
|
13
|
13
17700-SV4-931
Pipe comp
|
17700-SV4-931 |
— | ||
|
14
|
14
17701-SV4-000
Rubber
|
17701-SV4-000 |
— | ||
|
15
|
15
17716-SV4-L30
Tube
|
17716-SV4-L30 |
— | ||
|
16
|
16
17717-SV4-L30
Tube
|
17717-SV4-L30 |
— | ||
|
17
|
17
17720-SV4-000
Pipe comp
|
17720-SV4-000 |
— | ||
|
18
|
18
17723-SV4-930
Hose
|
17723-SV4-930 |
— | ||
|
18
|
18
17723-SV1-A02
Hose
TA018118 - |
17723-SV1-A02 |
— | ||
|
19
|
19
17740-SV4-930
Pipe comp
|
17740-SV4-930 |
— | ||
|
20
|
20
17742-SV4-L31
Joint
|
17742-SV4-L31 |
— | ||
|
21
|
21
17743-SM4-003 CapDRAIN TUBE |
17743-SM4-003 |
US $3.26 |
||
|
22
|
22
17743-SV4-003
Joint
|
17743-SV4-003 |
— | ||
|
23
|
23
17752-SV4-000 CoverFR. FUEL PIPE |
17752-SV4-000 |
US $13.82 |
||
|
24
|
24
17753-SV4-000
Cover
|
17753-SV4-000 |
— | ||
|
25
|
25
17761-SV4-000
Stay a
|
17761-SV4-000 |
— | ||
|
26
|
26
17763-SV4-000
Stay c
|
17763-SV4-000 |
— | ||
|
27
|
27
17764-SV4-000
Stay d
|
17764-SV4-000 |
— | ||
|
28
|
28
17765-SV4-000
Stay e
|
17765-SV4-000 |
— | ||
|
29
|
29
17766-SV4-000
Stay f
|
17766-SV4-000 |
— | ||
|
30
|
30
17767-SV4-000
Stay g
|
17767-SV4-000 |
— | ||
|
31
|
31
37942-P0H-L01 Sensor compVENT PRESSURE |
37942-P0H-L01 |
US $134.40 |
||
|
32
|
32
37943-P0H-L01 CoverVENT PRESSURE SENSOR |
37943-P0H-L01 |
US $2.94 |
||
|
33
|
33
37945-P0H-L00
Tube
|
37945-P0H-L00 |
— | ||
|
34
|
34
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
35
|
35
90201-PD1-000 Nut aSEALING, 12MM |
90201-PD1-000 |
from US $2.15 |
||
|
36
|
36
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
37
|
37
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.59 |
||
|
38
|
38
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
39
|
39
90890-SV4-000 Screw-washer5X16 |
90890-SV4-000 |
from US $1.54 |
||
|
40
|
40
91391-SV4-000 O-ring11.0X2.4 |
91391-SV4-000 |
US $4.20 |
||
|
41
|
41
91392-SV4-000
O-ring
|
91392-SV4-000 |
— | ||
| replacement | |||||
|
41
|
41
91392-S02-000 O-ring |
91392-S02-000 |
US $8.47 |
||
|
42
|
42
91393-SV4-000
O-ring
|
91393-SV4-000 |
— | ||
| replacement | |||||
|
42
|
42
91393-S02-000 O-ring |
91393-S02-000 |
US $8.47 |
||
|
43
|
43
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
44
|
44
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
45
|
45
91549-SV1-L01 HolderDRAIN TUBE |
91549-SV1-L01 |
from US $4.44 |
||
|
46
|
46
91591-SV4-000
Bracket
|
91591-SV4-000 |
— | ||
|
47
|
47
91592-SR3-J32 Clamp hFUEL PIPE (SANOU) |
91592-SR3-J32 |
US $3.50 |
||
|
48
|
48
91593-SV1-L01
Clip
|
91593-SV1-L01 |
— | ||
|
49
|
49
91594-SR3-J31 Clamp fFUEL PIPE (NIFCO) |
91594-SR3-J31 |
US $3.22 |
||
|
50
|
50
91595-ST7-003 ClipFUEL SUB TUBE |
91595-ST7-003 |
US $2.31 |
||
|
51
|
51
91598-SR3-J31
Clamp d
|
91598-SR3-J31 |
— | ||
| replacement | |||||
|
51
|
51
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) |
91598-SR3-J32 |
US $5.54 |
||
|
52
|
52
91599-SV4-003 Clamp aFUEL PIPE |
91599-SV4-003 |
US $5.60 |
||
|
53
|
53
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
54
|
54
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
55
|
55
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
56
|
56
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
57
|
57
93893-050-080-8 Screw-washer5X8 |
93893-050-080-8 |
from US $0.52 |
||
|
58
|
58
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
59
|
59
95001-753-906-0
Tube
|
95001-753-906-0 |
— | ||
|
60
|
60
95002-410-000-4 ClampTUBE (D10) |
95002-410-000-4 |
from US $0.74 |
||
|
61
|
61
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
62
|
62
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
63
|
63
95003-230-156-0 TubeVINYL, 8X12X150 (95003-23001-60M) |
95003-230-156-0 |
US $0.81 |
||
|
64
|
64
95003-400-456-0 TubeVINYL, 12X16X450 (95003-40001-60M) |
95003-400-456-0 |
US $4.37 |
||
