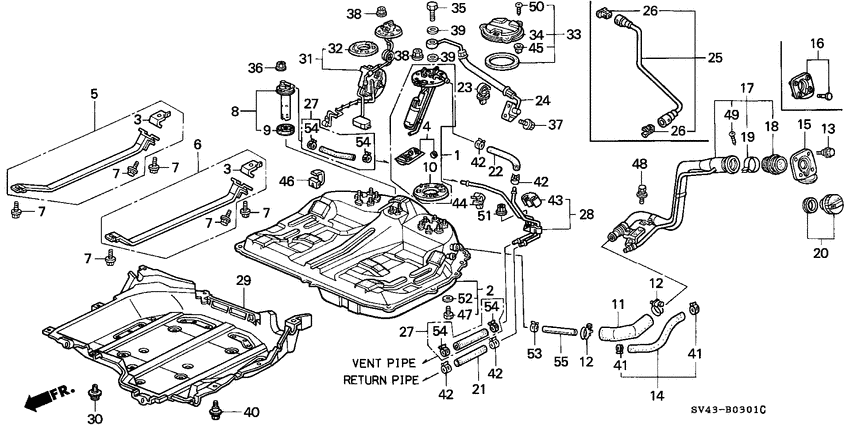

Fuel tank (2) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17040-SV1-L01
Pump set
|
17040-SV1-L01 |
— | ||
|
2
|
2
17500-SV4-931
Tank comp.
|
17500-SV4-931 |
— | ||
|
3
|
3
17511-SM4-000 BracketFUEL TANK BAND |
17511-SM4-000 |
US $7.33 |
||
|
5
|
5
17521-SV1-L00
Band assy.
|
17521-SV1-L00 |
— | ||
|
6
|
6
17522-SV1-L00
Band assy.
|
17522-SV1-L00 |
— | ||
|
7
|
7
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $2.15 |
||
|
8
|
8
17570-SV1-L01
Valve
|
17570-SV1-L01 |
— | ||
|
9
|
9
17571-SV1-000 Packing |
17571-SV1-000 |
US $4.62 |
||
|
10
|
10
17574-SV1-L01 PackingBASE |
17574-SV1-L01 |
US $14.16 |
||
|
11
|
11
17651-SV1-L00
Tube
|
17651-SV1-L00 |
— | ||
|
12
|
12
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
13
|
13
17656-SM4-000
Bolt
|
17656-SM4-000 |
— | ||
|
14
|
14
17658-SV1-L00
Tube assy
|
17658-SV1-L00 |
— | ||
|
15
|
15
17659-SM5-A00
Holder
|
17659-SM5-A00 |
— | ||
|
17
|
17
17660-SV4-A00 Pipe compFUEL FILLER |
17660-SV4-A00 |
US $120.32 |
||
|
18
|
18
17662-SL5-000
Packing
|
17662-SL5-000 |
— | ||
|
19
|
19
17663-SL5-A00
Band
|
17663-SL5-A00 |
— | ||
|
20
|
20
17670-SM4-A04 Cap comp.FUEL FILLER (TOYODA) |
17670-SM4-A04 |
US $37.26 |
||
|
21
|
21
17702-SV1-A02
Hose
|
17702-SV1-A02 |
— | ||
|
22
|
22
17704-SV1-A02 HoseFUEL TANK RETURN (100MM) (PLUMLEY) |
17704-SV1-A02 |
US $10.22 |
||
|
25
|
25
17707-SV4-A31
Tube comp
|
17707-SV4-A31 |
— | ||
|
26
|
26
17711-ST0-003 RetainerYELLOW) (TOKAI |
17711-ST0-003 |
US $6.19 |
||
|
27
|
27
17727-SV1-L00
Tube
|
17727-SV1-L00 |
— | ||
|
28
|
28
17731-SV4-A30
Pipe comp
|
17731-SV4-A30 |
— | ||
|
29
|
29
17733-SV1-L01
Cover
|
17733-SV1-L01 |
— | ||
|
30
|
30
17734-SV1-L01 Clip AFUEL TANK COVER |
17734-SV1-L01 |
US $1.61 |
||
|
31
|
31
37800-SV4-L04
Fuel Meter Unit
|
37800-SV4-L04 |
— | ||
| replacement | |||||
|
31
|
31
37800-SV4-C01
Fuel Meter Unit
|
37800-SV4-C01 |
— | ||
|
32
|
32
37801-SV4-L01 PackingBASE |
37801-SV4-L01 |
US $24.83 |
||
|
33
|
33
74660-SV4-000 Cap assy.FLOOR MAINTENANCE HOLE |
74660-SV4-000 |
US $12.04 |
||
|
34
|
34
74661-SH5-013 CapFLOOR MAINTENANCE HOLE |
74661-SH5-013 |
US $5.32 |
||
|
36
|
36
90103-SB0-010 NutFLANGE, 5MM |
90103-SB0-010 |
US $1.33 |
||
|
38
|
38
90301-SE0-J00 NutFLANGE, 6MM |
90301-SE0-J00 |
US $4.23 |
||
|
40
|
40
90671-SB2-000 BoltFR. FENDER (DACRO COATING) |
90671-SB2-000 |
US $3.29 |
||
|
41
|
41
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
from US $3.18 |
||
|
42
|
42
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
43
|
43
91593-SV4-003 ClipFUEL PIPE (C) |
91593-SV4-003 |
US $1.68 |
||
|
44
|
44
91594-SV4-003 ClampFUEL VENT PIPE |
91594-SV4-003 |
from US $1.93 |
||
|
45
|
45
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
US $1.55 |
||
|
46
|
46
91691-SE0-003
Clip
|
91691-SE0-003 |
— | ||
|
47
|
47
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.26 |
||
|
48
|
48
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
49
|
49
93901-24120 ScrewTAPPING, 4X8 |
93901-24120 |
from US $0.37 |
||
|
50
|
50
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
51
|
51
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
52
|
52
94109-12000 Washer, DRAIN PLUG, 12MM |
94109-12000 |
from US $0.98 |
||
|
53
|
53
95002-410-000-8 ClampTUBE (D10) |
95002-410-000-8 |
from US $0.74 |
||
|
54
|
54
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
55
|
55
95003-190-206-0 TubeVINYL, 7X11X200 (95003-19001-60M) |
95003-190-206-0 |
US $1.04 |
||
