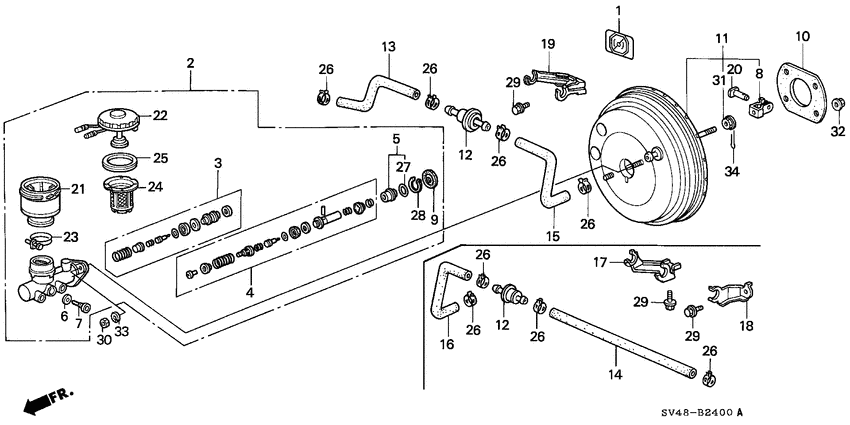

Brake master cylinder/ master power Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
46100-SM4-954
Cylinder assy.
|
46100-SM4-954 |
— | ||
|
3
|
3
57520-SD4-023 Piston assy.PRIMARY |
57520-SD4-023 |
from US $46.34 |
||
|
4
|
4
57540-SD4-023 Piston assy.SECONDARY |
57540-SD4-023 |
US $46.34 |
||
|
5
|
5
57560-SD4-003 Guide assyPISTON |
57560-SD4-003 |
US $17.28 |
||
|
6
|
6
46138-SM4-003 Packing |
46138-SM4-003 |
from US $2.66 |
||
|
7
|
7
57515-SM4-013 Bolt compSTOPPER |
57515-SM4-013 |
US $4.13 |
||
|
8
|
8
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
9
|
9
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
10
|
10
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
11
|
11
46400-SV4-A51
Power assy.
|
46400-SV4-A51 |
— | ||
|
12
|
12
46403-SE0-003
Valve comp.
|
46403-SE0-003 |
— | ||
|
14
|
14
46404-SV4-000
Tube a
|
46404-SV4-000 |
— | ||
|
16
|
16
46405-SV4-E00
Tube b
|
46405-SV4-E00 |
— | ||
|
17
|
17
46407-SM4-010
Clamp
|
46407-SM4-010 |
— | ||
|
18
|
18
46407-SR3-J30
Stay
|
46407-SR3-J30 |
— | ||
|
20
|
20
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
21
|
21
46660-SM4-013
Tank
|
46660-SM4-013 |
— | ||
|
22
|
22
46662-SM4-003 Cap comp.RESERVE TANK |
46662-SM4-003 |
US $47.74 |
||
|
23
|
23
46665-ST5-003 BandRESERVE TANK |
46665-ST5-003 |
US $5.88 |
||
|
24
|
24
46666-SE3-013
Filter
|
46666-SE3-013 |
— | ||
|
25
|
25
46669-SE3-003 SealRESERVE TANK |
46669-SE3-003 |
US $7.98 |
||
|
26
|
26
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
27
|
27
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
28
|
28
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
29
|
29
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
30
|
30
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
32
|
32
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
33
|
33
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
34
|
34
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
