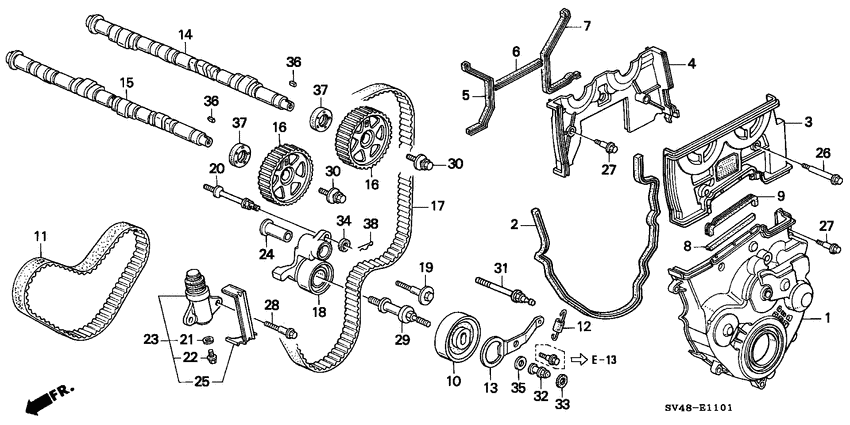

Camshaft/timing belt (DOHC VTEC) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11810-P13-020
Cover
|
11810-P13-020 |
— | ||
|
2
|
2
11811-P13-000 SealTIMING BELT LOWER RUBBER |
11811-P13-000 |
US $25.09 |
||
|
3
|
3
11820-P13-010
Cover
|
11820-P13-010 |
— | ||
|
4
|
4
11830-P13-020
Cover
|
11830-P13-020 |
— | ||
|
5
|
5
11831-P13-000 Rubber aTIMING BELT BACK SEAL |
11831-P13-000 |
US $7.56 |
||
|
6
|
6
11832-P13-000 Rubber bTIMING BELT BACK SEAL |
11832-P13-000 |
US $5.60 |
||
|
7
|
7
11833-P13-000
Rubber c
|
11833-P13-000 |
— | ||
|
8
|
8
11925-PT0-000 Rubber aENGINE MOUNTING BRACKET SEAL |
11925-PT0-000 |
US $4.32 |
||
|
9
|
9
11926-PT0-000 Rubber bENGINE MOUNTING BRACKET SEAL |
11926-PT0-000 |
US $2.94 |
||
|
10
|
10
13404-P13-003 Adjuster compBALANCER BELT |
13404-P13-003 |
US $66.56 |
||
|
11
|
11
13405-PT0-004 BeltBALANCER TIMING (UNITTA) |
13405-PT0-004 |
from US $95.88 |
||
|
12
|
12
13407-P13-000
Spring b comp.
|
13407-P13-000 |
— | ||
|
13
|
13
13415-P0A-000 BracketBALANCER BELT ADJUSTER |
13415-P0A-000 |
US $9.44 |
||
|
14
|
14
14111-P5M-000 CamshaftINTAKE |
14111-P5M-000 |
US $480 |
||
|
15
|
15
14121-P5M-000 CamshaftEX. |
14121-P5M-000 |
US $476.16 |
||
|
16
|
16
14210-P13-003
Pulley
|
14210-P13-003 |
— | ||
|
17
|
17
14400-P13-004
Belt
|
14400-P13-004 |
— | ||
|
18
|
18
14510-P13-003 Adjuster compTIMING BELT |
14510-P13-003 |
US $118.40 |
||
|
19
|
19
14513-P13-003 Bolt8X1.25 |
14513-P13-003 |
US $7 |
||
|
20
|
20
14514-P13-003
Bolt
|
14514-P13-003 |
— | ||
|
21
|
21
14517-P13-003 Gasket |
14517-P13-003 |
US $1.61 |
||
|
22
|
22
14518-P8A-A01 Bolt7X0.75 |
14518-P8A-A01 |
US $1.96 |
||
|
23
|
23
14520-P13-003
Adjuster comp
|
14520-P13-003 |
— | ||
|
24
|
24
14530-P13-000 CollarAUTO ADJUSTER |
14530-P13-000 |
from US $15.64 |
||
|
25
|
25
14540-P13-003
Stopper
|
14540-P13-003 |
— | ||
|
26
|
26
90002-PT0-000
Bolt b
|
90002-PT0-000 |
— | ||
|
27
|
27
90007-679-000 Bolt aTIMING BELT COVER |
90007-679-000 |
from US $2.22 |
||
|
28
|
28
90014-P13-003
Bolt
|
90014-P13-003 |
— | ||
|
29
|
29
90016-P13-003
Bolt
|
90016-P13-003 |
— | ||
|
30
|
30
90031-PV0-003 Bolt-washer10X30 |
90031-PV0-003 |
US $9.25 |
||
| replacement | |||||
|
30
|
30
90031-PV0-305 Bolt-washer (10x30) |
90031-PV0-305 |
from US $4.29 |
||
|
31
|
31
90051-PT0-000 BoltSUB BELT ADJUSTER SPRING |
90051-PT0-000 |
US $3.85 |
||
|
32
|
32
90216-P0A-000 Nut10MM |
90216-P0A-000 |
US $4.88 |
||
|
33
|
33
90401-PT0-000 RubberTIMING BELT ADJUSTER |
90401-PT0-000 |
US $6.35 |
||
|
34
|
34
90401-P13-000
Rubber
|
90401-P13-000 |
— | ||
|
35
|
35
90501-MB7-610 Washer10.3X25 |
90501-MB7-610 |
from US $3.67 |
||
|
36
|
36
90741-657-000 Key25.4X13 |
90741-657-000 |
from US $5.20 |
||
|
37
|
37
91213-PR3-004 Oil seal29X43X8 (ARAI) |
91213-PR3-004 |
from US $8.14 |
||
|
38
|
38
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
