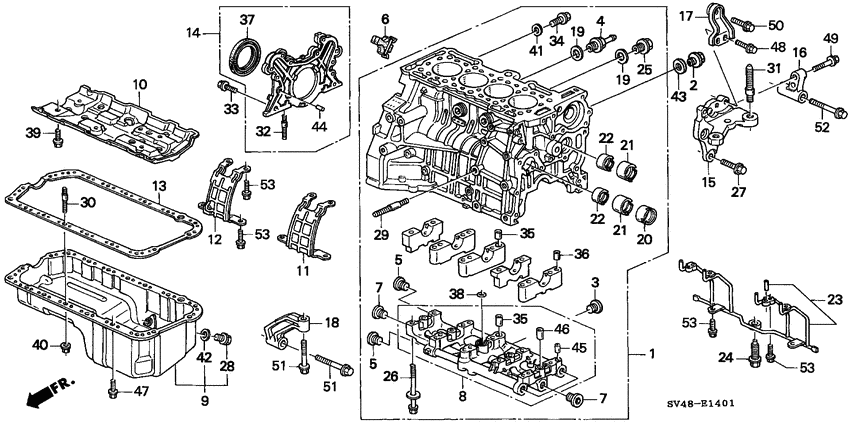

Cylinder block/oil pan (DOHC VTEC) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-P13-010
Block assy
|
11000-P13-010 |
— | ||
|
2
|
2
11103-P13-300
Bolt
|
11103-P13-300 |
— | ||
|
3
|
3
11106-PT0-300 BoltSEALING, 16MM |
11106-PT0-300 |
US $3.42 |
||
|
4
|
4
11107-PK2-003 JointOIL COOLER |
11107-PK2-003 |
from US $10.31 |
||
|
5
|
5
11107-PT0-000 BoltSEALING, 16MM |
11107-PT0-000 |
US $3.36 |
||
|
6
|
6
11109-PK2-010 SealTIMING RUBBER |
11109-PK2-010 |
from US $3.50 |
||
|
7
|
7
11126-PK1-003 BoltSEALING, 22MM |
11126-PK1-003 |
US $3.58 |
||
|
8
|
8
11130-PT0-010 Bridge compBEARING CAP |
11130-PT0-010 |
US $95.36 |
||
|
9
|
9
11200-PT0-010 Pan compOIL |
11200-PT0-010 |
US $197.12 |
||
|
10
|
10
11221-PT2-000 PlateBAFFLE |
11221-PT2-000 |
US $34.56 |
||
|
11
|
11
11222-P13-000 CoverL. BREATHER |
11222-P13-000 |
US $8.68 |
||
|
12
|
12
11223-P13-000 CoverR. BREATHER |
11223-P13-000 |
US $8.68 |
||
|
13
|
13
11251-P0A-000 Packing comp.OIL PAN |
11251-P0A-000 |
US $54.45 |
||
|
14
|
14
11300-PT0-000
Cover assy.
|
11300-PT0-000 |
— | ||
|
15
|
15
11910-P13-000
Bracket
|
11910-P13-000 |
— | ||
|
16
|
16
11912-PT0-000
Stay a
|
11912-PT0-000 |
— | ||
|
17
|
17
11913-P13-010
Stay b comp.
|
11913-P13-010 |
— | ||
|
18
|
18
11951-P13-000
Stiffener
|
11951-P13-000 |
— | ||
|
19
|
19
12207-634-300
Washer
|
12207-634-300 |
— | ||
|
20
|
20
13421-PT0-003 MetalBALANCER SHAFT (NO.1) (DAIDO) |
13421-PT0-003 |
from US $23.28 |
||
|
21
|
21
13422-PT0-013 MetalBALANCER SHAFT (NO.2) (DAIDO) |
13422-PT0-013 |
from US $28.56 |
||
|
22
|
22
13423-PT0-003 MetalBALANCER SHAFT (NO.3) (DAIDO) |
13423-PT0-003 |
from US $23.28 |
||
|
23
|
23
15280-P13-000 Body compOIL JET |
15280-P13-000 |
US $121.60 |
||
|
24
|
24
15290-P13-000
Bolt comp
|
15290-P13-000 |
— | ||
|
25
|
25
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
26
|
26
90007-PAA-T01 Bolt-washer11X121 |
90007-PAA-T01 |
US $7.93 |
||
|
27
|
27
90008-PM3-000 BoltMOUNTING BRACKET, 10X32.5 |
90008-PM3-000 |
US $4.32 |
||
|
28
|
28
90009-PH1-000 BoltDRAIN PLUG, 14MM |
90009-PH1-000 |
from US $4.44 |
||
|
29
|
29
90030-PT0-000 BoltSTUD, 10X35 |
90030-PT0-000 |
US $3.92 |
||
|
30
|
30
90041-PA5-000 BoltSTUD, 6X28 |
90041-PA5-000 |
from US $2.52 |
||
|
31
|
31
90041-PT0-000 BoltSTUD, 12X60 |
90041-PT0-000 |
US $3.99 |
||
|
32
|
32
90042-PR3-000 BoltSTUD, 6X28 |
90042-PR3-000 |
US $2.28 |
||
|
33
|
33
90051-PH7-000 BoltFLANGE, 6X18 |
90051-PH7-000 |
US $2.10 |
||
|
34
|
34
90061-PT0-000 BoltDRAIN PLUG, 12MM |
90061-PT0-000 |
from US $2.66 |
||
|
35
|
35
90705-PT0-000 Dowel pin16X22 |
90705-PT0-000 |
from US $1.48 |
||
|
36
|
36
90715-PC6-000 Dowel pin13X20 |
90715-PC6-000 |
from US $2.25 |
||
|
37
|
37
91214-PT0-004
Oil seal
|
91214-PT0-004 |
— | ||
|
37
|
37
91214-PC6-013
Oil seal
|
91214-PC6-013 |
— | ||
|
38
|
38
91323-PH7-003 PackingBEARING CAP BRIDGE (ARAI) |
91323-PH7-003 |
from US $1.76 |
||
|
39
|
39
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
40
|
40
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
41
|
41
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
42
|
42
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
43
|
43
94109-20000 WasherDRAIN PLUG, 20MM |
94109-20000 |
from US $0.52 |
||
|
44
|
44
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
45
|
45
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
46
|
46
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
47
|
47
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
48
|
48
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
49
|
49
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
50
|
50
95701-100-220-8 BoltFLANGE, 10X22 |
95701-100-220-8 |
from US $0.81 |
||
|
51
|
51
95701-100-450-8 BoltFLANGE, 10X45 |
95701-100-450-8 |
from US $0.89 |
||
|
52
|
52
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
|
53
|
53
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
