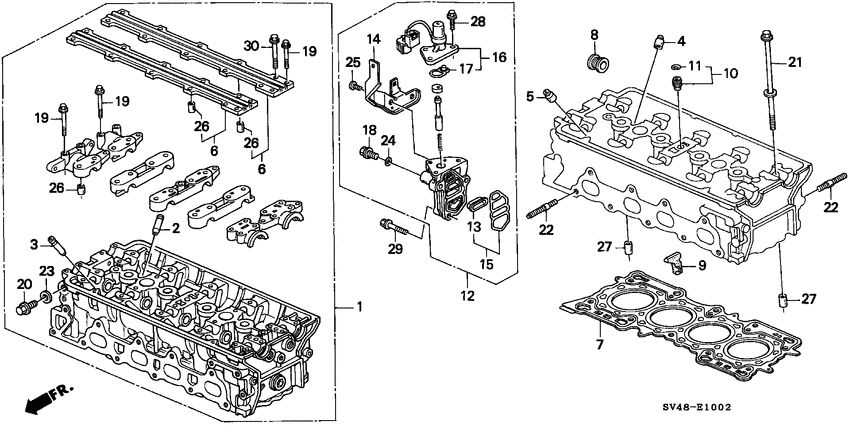

Cylinder head (DOHC VTEC) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-P13-000
Head assy
|
12100-P13-000 |
— | ||
|
2
|
2
12204-P13-305
Guide
|
12204-P13-305 |
— | ||
|
3
|
3
12205-P13-305 GuideEX. VALVE (OS) |
12205-P13-305 |
US $9.80 |
||
|
4
|
4
12210-PZ1-004 SEAL A, VALVE STEM (NOK) |
12210-PZ1-004 |
from US $3.64 |
||
|
4
|
4
12210-PZ1-003 Seal aVALVE STEM(ARAI) |
12210-PZ1-003 |
from US $4.23 |
||
| replacement | |||||
|
4
|
4
12210-PZ1-004 SEAL A, VALVE STEM (NOK) |
12210-PZ1-004 |
from US $3.64 |
||
|
5
|
5
12211-PZ1-003 Seal bVALVE STEM(ARAI) |
12211-PZ1-003 |
from US $3.13 |
||
|
5
|
5
12211-PZ1-004 Seal bVALVE STEM(NOK) |
12211-PZ1-004 |
from US $3.47 |
||
|
6
|
6
12237-P13-000
Pipe comp
|
12237-P13-000 |
— | ||
|
7
|
7
12251-P13-004 Gasket compCYLINDER HEAD |
12251-P13-004 |
from US $80.24 |
||
|
8
|
8
12513-P30-000 Rubber compCYLINDER HEAD SEAL |
12513-P30-000 |
from US $10.89 |
||
|
9
|
9
12831-P13-000
Seal
|
12831-P13-000 |
— | ||
|
10
|
10
15140-P13-000
Orifice assy
|
15140-P13-000 |
— | ||
|
11
|
11
15142-PH3-003 O-ring10.8X2.4 (ARAI) |
15142-PH3-003 |
from US $2.96 |
||
|
12
|
12
15810-P0F-005
Valve assy.
|
15810-P0F-005 |
— | ||
|
13
|
13
15815-PR3-004 Filter compSPOOL VALVE |
15815-PR3-004 |
US $22.59 |
||
|
14
|
14
15816-P13-005
Stay
|
15816-P13-005 |
— | ||
|
15
|
15
15825-P13-005 Filter assySPOOL VALVE |
15825-P13-005 |
from US $20.45 |
||
|
16
|
16
36171-P0F-005
Solenoid assy.
|
36171-P0F-005 |
— | ||
|
17
|
17
36172-P08-015 Packing, SOLENOID BASE |
36172-P08-015 |
from US $7.70 |
||
|
18
|
18
90001-P70-000 BoltFLANGE, 10X10.5 |
90001-P70-000 |
US $2.07 |
||
|
19
|
19
90002-PJ7-010 BoltFLANGE, 6X45 |
90002-PJ7-010 |
US $4.07 |
||
|
20
|
20
90004-PE2-005 BoltSEALING, 10MM |
90004-PE2-005 |
from US $2.22 |
||
|
21
|
21
90005-P13-003 Bolt-washer12X185 |
90005-P13-003 |
US $9.38 |
||
|
22
|
22
90026-PT0-000 BoltSTUD, 8X38 |
90026-PT0-000 |
US $2.69 |
||
|
23
|
23
90401-PE2-003 WasherSEALING, 10MM |
90401-PE2-003 |
from US $2.15 |
||
|
24
|
24
91319-PR3-000
O-ring
|
91319-PR3-000 |
— | ||
| replacement | |||||
|
24
|
24
91319-PR3-003 O-ring13X1.5 (ARAI) |
91319-PR3-003 |
from US $2.44 |
||
|
25
|
25
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
26
|
26
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
27
|
27
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
28
|
28
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
29
|
29
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
30
|
30
95701-080-500-9
Bolt
|
95701-080-500-9 |
— | ||
| replacement | |||||
|
30
|
30
95701-080-500-0 BoltFLANGE, 8X50 |
95701-080-500-0 |
from US $0.81 |
||
