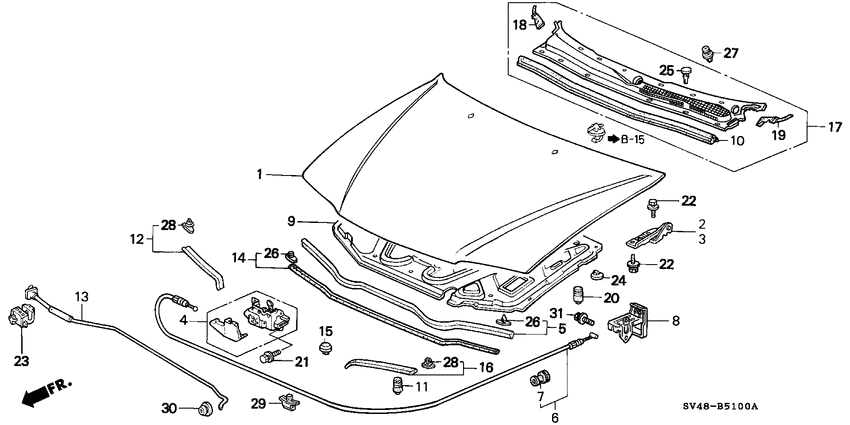

Engine hood Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60100-SV4-900ZZ Hood comp.ENGINE |
60100-SV4-900ZZ |
US $705.28 |
||
|
2
|
2
60120-SS0-000ZZ Hinge compR. HOOD |
60120-SS0-000ZZ |
US $29.44 |
||
|
3
|
3
60170-SS0-000ZZ Hinge compL. HOOD |
60170-SS0-000ZZ |
US $29.44 |
||
|
4
|
4
74120-SV4-J01 Lock assyHOOD |
74120-SV4-J01 |
US $39.55 |
||
|
5
|
5
74121-SM4-000
Rubber
|
74121-SM4-000 |
— | ||
|
6
|
6
74130-SM4-010
Wire assy.
|
74130-SM4-010 |
— | ||
|
7
|
7
74134-SM4-000 GrommetHOOD WIRE |
74134-SM4-000 |
US $1.82 |
||
|
8
|
8
74135-SM4-003ZN Lever assy.HOOD WIRE *YR169L* |
74135-SM4-003ZN |
US $9.66 |
||
|
8
|
8
74135-SM4-003ZH Lever assy.HOOD WIRE *NH178L* |
74135-SM4-003ZH |
US $9.66 |
||
|
9
|
9
74141-SV4-940
Insulator
|
74141-SV4-940 |
— | ||
|
10
|
10
74143-SV4-000
Rubber
|
74143-SV4-000 |
— | ||
|
11
|
11
74144-SE0-000 CushionHOOD |
74144-SE0-000 |
US $3.42 |
||
|
13
|
13
74145-SV4-000
Stay
|
74145-SV4-000 |
— | ||
|
14
|
14
74148-SV4-000
Rubber
|
74148-SV4-000 |
— | ||
|
15
|
15
74177-SD4-000 Cushion aHOOD |
74177-SD4-000 |
US $5.18 |
||
|
17
|
17
74200-SV4-000
Cowl top assy.
|
74200-SV4-000 |
— | ||
|
18
|
18
74211-SV4-300
Cover
|
74211-SV4-300 |
— | ||
|
19
|
19
74261-SV4-300
Cover
|
74261-SV4-300 |
— | ||
|
20
|
20
85268-SA5-003 StopperTAILGATE (BLACK) |
85268-SA5-003 |
US $9.61 |
||
|
21
|
21
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
22
|
22
90106-SE1-000 Bolt-washer6X15 |
90106-SE1-000 |
US $1.89 |
||
|
23
|
23
90677-SE0-003 HolderROD |
90677-SE0-003 |
from US $2.66 |
||
|
24
|
24
90700-SJ4-000 ClipENGINE HOOD INSULATOR |
90700-SJ4-000 |
from US $1.78 |
||
|
25
|
25
91501-SS0-003
Clip
|
91501-SS0-003 |
— | ||
|
26
|
26
91530-SP1-003 Clip ADOOR WEATHERSTRIP |
91530-SP1-003 |
US $1.72 |
||
|
27
|
27
91524-SE0-003 ClipCOWL TOP |
91524-SE0-003 |
US $3.70 |
||
|
29
|
29
91558-SE3-003 ClipHOOD WIRE |
91558-SE3-003 |
US $4 |
||
|
30
|
30
91604-SD2-013 GrommetHOOD STAY |
91604-SD2-013 |
from US $1 |
||
|
31
|
31
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
