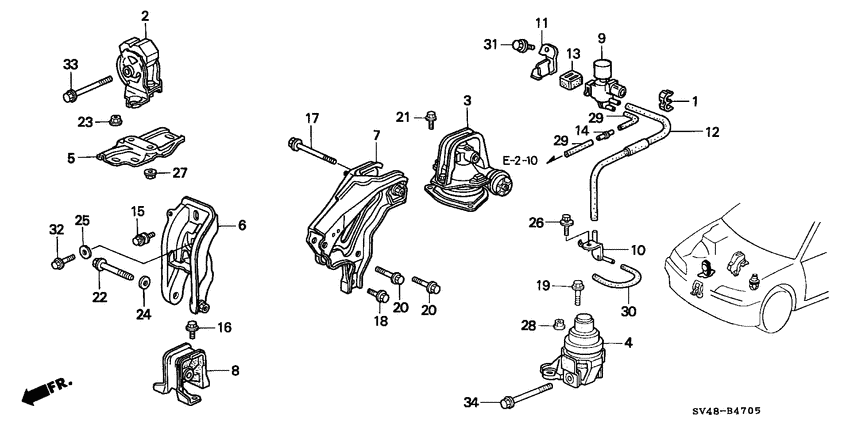

Engine mounts (6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
50806-SV4-981
Rubber
|
50806-SV4-981 |
— | ||
|
3
|
3
50810-SV4-J82
Rubber
|
50810-SV4-J82 |
— | ||
|
4
|
4
50820-SV4-J71
Rubber assy.
|
50820-SV4-J71 |
— | ||
|
5
|
5
50825-SM4-981
Bracket
|
50825-SM4-981 |
— | ||
|
6
|
6
50826-SV4-000 BracketFR. ENGINE MOUNTING |
50826-SV4-000 |
US $40.06 |
||
|
7
|
7
50827-SM4-J83
Bracket
|
50827-SM4-J83 |
— | ||
|
8
|
8
50840-SV4-980
Stopper
|
50840-SV4-980 |
— | ||
|
9
|
9
50913-SV7-A01
Valve assy.
|
50913-SV7-A01 |
— | ||
|
10
|
10
50914-SM4-J80
Joint
|
50914-SM4-J80 |
— | ||
|
11
|
11
50915-SV4-J70
Stay
|
50915-SV4-J70 |
— | ||
|
12
|
12
50916-SV4-J80
Tube
|
50916-SV4-J80 |
— | ||
|
13
|
13
50917-SV7-A00 RubberMOUNTING |
50917-SV7-A00 |
US $2.52 |
||
|
14
|
14
50919-SV7-A00 JointTWO WAY, #115 |
50919-SV7-A00 |
US $7.56 |
||
|
15
|
15
90162-SV4-000 Bolt-washer10X30 |
90162-SV4-000 |
US $4.23 |
||
|
16
|
16
90163-SC2-000 BoltFLANGE, 12X25 |
90163-SC2-000 |
US $4.40 |
||
|
17
|
17
90167-SM4-000 BoltFLANGE, 12X120 |
90167-SM4-000 |
US $7.14 |
||
|
18
|
18
90169-SM4-000 BoltFLANGE, 12X30 |
90169-SM4-000 |
US $3.22 |
||
|
19
|
19
90170-SM4-000 BoltFLANGE, 12X40 |
90170-SM4-000 |
US $3.08 |
||
|
20
|
20
90173-SM4-000 BoltFLANGE, 12X60 |
90173-SM4-000 |
from US $4.07 |
||
|
21
|
21
90174-SM4-000 BoltFLANGE, 10X22 |
90174-SM4-000 |
US $1.82 |
||
|
22
|
22
90176-SM4-000
Bolt
|
90176-SM4-000 |
— | ||
|
23
|
23
90371-SM4-000 NutFLANGE, 10MM |
90371-SM4-000 |
US $1.96 |
||
|
24
|
24
90504-SB0-000 WasherPLAIN, 12MM |
90504-SB0-000 |
from US $1.48 |
||
|
25
|
25
90552-SV4-000
Washer
|
90552-SV4-000 |
— | ||
|
26
|
26
93411-060-120-8 Bolt-washer6X12 |
93411-060-120-8 |
from US $0.52 |
||
|
27
|
27
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
28
|
28
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
29
|
29
95005-351-201-0 Tube3.5X120(95005-35001-10M) |
95005-351-201-0 |
US $1.55 |
||
|
30
|
30
95005-351-351-0
Tube
|
95005-351-351-0 |
— | ||
| replacement | |||||
|
30
|
30
95005-352-0010S
Tube 35x200
|
95005-352-0010S |
— | ||
|
31
|
31
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
32
|
32
95801-100-400-8 BoltFLANGE, 10X40 |
95801-100-400-8 |
from US $0.81 |
||
|
33
|
33
95801-121-050-8 BoltFLANGE, 12X105 |
95801-121-050-8 |
US $1.04 |
||
|
34
|
34
95801-121-150-8 BoltFLANGE, 12X115 |
95801-121-150-8 |
from US $1.85 |
||
