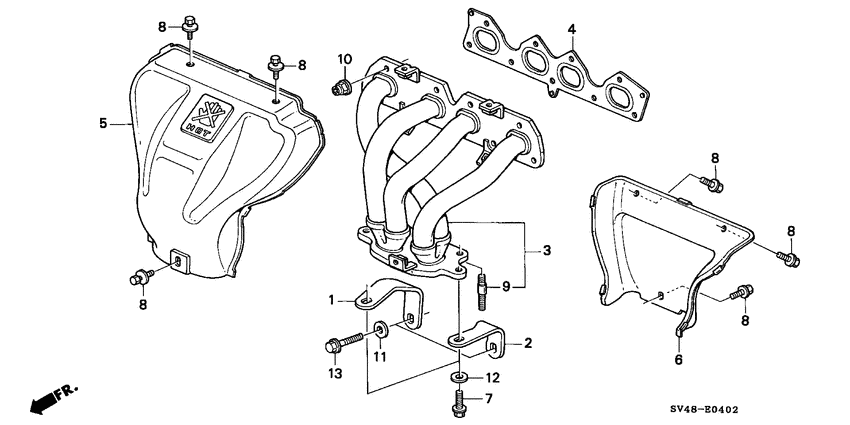

Exhaust manifold (3) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11941-P13-000
Stay
|
11941-P13-000 |
— | ||
|
2
|
2
11942-P13-000
Stay
|
11942-P13-000 |
— | ||
|
3
|
3
18000-P13-000
Manifold comp
|
18000-P13-000 |
— | ||
|
4
|
4
18115-P13-003 GasketEX. MANIFOLD (NIPPON LEAKLESS) |
18115-P13-003 |
US $25.34 |
||
|
5
|
5
18120-P13-J01
Cover comp. a
|
18120-P13-J01 |
— | ||
|
6
|
6
18121-P13-000
Cover comp. b
|
18121-P13-000 |
— | ||
|
7
|
7
90010-PE2-900 BoltSPECIAL, 10X22 |
90010-PE2-900 |
US $3.02 |
||
|
8
|
8
90015-PH7-000 Bolt-washer8X14 |
90015-PH7-000 |
US $2.17 |
||
| replacement | |||||
|
8
|
8
90015-PT0-J00 Bolt-washer8X14 |
90015-PT0-J00 |
US $1.70 |
||
|
9
|
9
90065-PC1-300 BoltSTUD, 10X34.5 |
90065-PC1-300 |
US $9.77 |
||
|
10
|
10
90212-PD2-003
Nut
|
90212-PD2-003 |
— | ||
| replacement | |||||
|
10
|
10
90212-RCA-A01 NutSELF-LOCK, 8MM |
90212-RCA-A01 |
from US $2.70 |
||
|
11
|
11
90451-PE2-000 WasherSPECIAL, 11X28 |
90451-PE2-000 |
US $12.39 |
||
|
12
|
12
90451-P13-000
Washer
|
90451-P13-000 |
— | ||
|
13
|
13
95701-100-250-8 BoltFLANGE, 10X25 |
95701-100-250-8 |
from US $0.81 |
||
