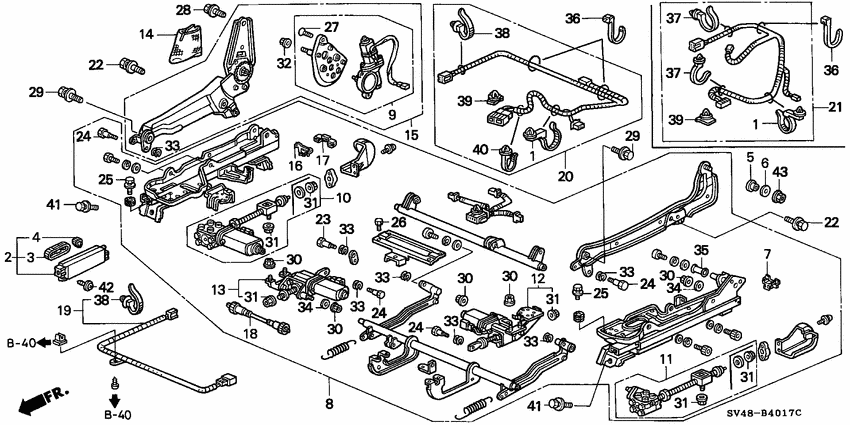

Front seat components (R.; 4) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
2
|
2
35950-SM4-J61ZX
Switch assy
|
35950-SM4-J61ZX |
— | ||
|
2
|
2
35950-SM4-J61ZM
Switch assy
|
35950-SM4-J61ZM |
— | ||
|
3
|
3
35951-SM4-J62ZM KnobSLIDE *NH178L* |
35951-SM4-J62ZM |
US $8.26 |
||
|
3
|
3
35951-SM4-J62ZW
Knob
|
35951-SM4-J62ZW |
— | ||
|
4
|
4
35952-SM4-J61ZX
Knob
|
35952-SM4-J61ZX |
— | ||
|
4
|
4
35952-SM4-J61ZN KnobRECLINING *NH178L* |
35952-SM4-J61ZN |
US $4.20 |
||
|
5
|
5
81117-S47-003 BushNYLON(TS TECH) |
81117-S47-003 |
US $1.61 |
||
|
6
|
6
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
7
|
7
77517-SA5-014 CapSLIDE ADJUSTER |
77517-SA5-014 |
US $4.48 |
||
|
8
|
8
81111-SV4-U62
Slide & height comp.
|
81111-SV4-U62 |
— | ||
|
9
|
9
81113-SM4-J62
Motor assy.
|
81113-SM4-J62 |
— | ||
|
10
|
10
81114-SM4-E52
Motor assy.
|
81114-SM4-E52 |
— | ||
|
11
|
11
81117-SM4-E52
Box assy
|
81117-SM4-E52 |
— | ||
|
12
|
12
81118-SM4-E52
Motor assy.
|
81118-SM4-E52 |
— | ||
|
13
|
13
81119-SM4-E52
Motor assy.
|
81119-SM4-E52 |
— | ||
|
14
|
14
81138-SV4-Q61ZE
Boot
|
81138-SV4-Q61ZE |
— | ||
|
14
|
14
81138-SV4-Q61ZB
Boot
|
81138-SV4-Q61ZB |
— | ||
|
15
|
15
81230-SV4-J62
Adjuster
|
81230-SV4-J62 |
— | ||
|
16
|
16
81261-SM4-J32 CapRAIL END LOWER |
81261-SM4-J32 |
US $3.92 |
||
|
17
|
17
81262-SM4-J32 CapRAIL END UPPER |
81262-SM4-J32 |
US $3.92 |
||
|
18
|
18
81266-SD4-J31
Cable
|
81266-SD4-J31 |
— | ||
|
19
|
19
81311-SM4-J60
Cord a
|
81311-SM4-J60 |
— | ||
|
21
|
21
81312-SV4-J62
Cord
|
81312-SV4-J62 |
— | ||
|
22
|
22
90124-SV4-003 Bolt-washer10X34 |
90124-SV4-003 |
US $3.01 |
||
|
23
|
23
90125-SP0-003
Bolt b
|
90125-SP0-003 |
— | ||
|
24
|
24
90127-SP0-003 Bolt e |
90127-SP0-003 |
US $1.96 |
||
|
25
|
25
90128-SP0-003
Bolt
|
90128-SP0-003 |
— | ||
|
26
|
26
90130-SP0-003
Bolt d
|
90130-SP0-003 |
— | ||
|
27
|
27
90133-SP0-003 Screw a |
90133-SP0-003 |
US $1.68 |
||
|
28
|
28
90143-SV4-003 Bolt-washer10X22 |
90143-SV4-003 |
US $2.31 |
||
|
29
|
29
90180-SV4-003
Bolt-washer
|
90180-SV4-003 |
— | ||
|
30
|
30
90322-SP0-003 Nut a |
90322-SP0-003 |
US $1.54 |
||
|
31
|
31
90324-SM4-003 Nut |
90324-SM4-003 |
US $1.82 |
||
|
32
|
32
90324-SP0-003 Nut c |
90324-SP0-003 |
US $1.68 |
||
|
33
|
33
90518-SP0-901
Bush a
|
90518-SP0-901 |
— | ||
|
34
|
34
90519-SP0-003
Washer a
|
90519-SP0-003 |
— | ||
|
35
|
35
90521-SP0-003
Bush b
|
90521-SP0-003 |
— | ||
|
36
|
36
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
37
|
37
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
38
|
38
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
39
|
39
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
41
|
41
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
42
|
42
93903-14220 ScrewTAPPING, 4X10 |
93903-14220 |
US $0.37 |
||
|
43
|
43
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
