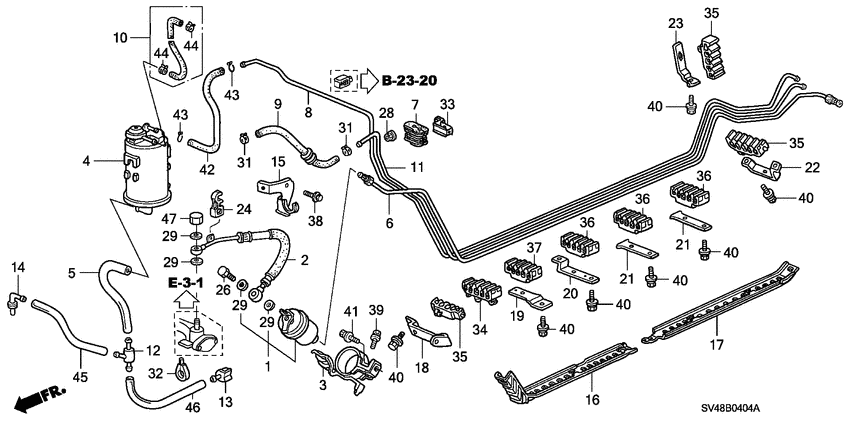

Fuel pipe (5) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-932
Strainer set
|
16010-ST5-932 |
— | ||
|
2
|
2
16720-P0F-013
Hose comp.
|
16720-P0F-013 |
— | ||
|
3
|
3
16918-SV4-930
Stay
|
16918-SV4-930 |
— | ||
|
4
|
4
17300-SV4-931
Canister assy
|
17300-SV4-931 |
— | ||
|
5
|
5
17372-SV4-000
Tube
|
17372-SV4-000 |
— | ||
|
6
|
6
17700-SV4-931
Pipe comp
|
17700-SV4-931 |
— | ||
|
7
|
7
17701-SV4-000
Rubber
|
17701-SV4-000 |
— | ||
|
8
|
8
17720-SV4-000
Pipe comp
|
17720-SV4-000 |
— | ||
|
9
|
9
17723-SV4-J30
Hose
|
17723-SV4-J30 |
— | ||
|
10
|
10
17725-SV4-000
Hose assy
|
17725-SV4-000 |
— | ||
|
11
|
11
17740-SV4-930
Pipe comp
|
17740-SV4-930 |
— | ||
|
12
|
12
17742-SV4-003 JointDRAIN TUBE (CANISTER) |
17742-SV4-003 |
US $4.62 |
||
|
13
|
13
17743-SM4-003 CapDRAIN TUBE |
17743-SM4-003 |
US $1.82 |
||
|
14
|
14
17743-SV4-003
Joint
|
17743-SV4-003 |
— | ||
|
15
|
15
17749-SM4-933
Clamp
|
17749-SM4-933 |
— | ||
|
16
|
16
17752-SV4-000 CoverFR. FUEL PIPE |
17752-SV4-000 |
US $13.82 |
||
|
17
|
17
17753-SV4-000
Cover
|
17753-SV4-000 |
— | ||
|
18
|
18
17761-SV4-000
Stay a
|
17761-SV4-000 |
— | ||
|
19
|
19
17763-SV4-000
Stay c
|
17763-SV4-000 |
— | ||
|
20
|
20
17764-SV4-000
Stay d
|
17764-SV4-000 |
— | ||
|
21
|
21
17765-SV4-000
Stay e
|
17765-SV4-000 |
— | ||
|
22
|
22
17766-SV4-000
Stay f
|
17766-SV4-000 |
— | ||
|
23
|
23
17767-SV4-000
Stay g
|
17767-SV4-000 |
— | ||
|
24
|
24
36368-P13-003
Clamp
|
36368-P13-003 |
— | ||
|
26
|
26
90021-P0A-003 BoltSEALING, 12MM |
90021-P0A-003 |
US $5.46 |
||
|
28
|
28
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
29
|
29
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
31
|
31
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
32
|
32
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
33
|
33
91591-SV4-000
Bracket
|
91591-SV4-000 |
— | ||
|
34
|
34
91592-SR3-J32 Clamp hFUEL PIPE (SANOU) |
91592-SR3-J32 |
US $3.50 |
||
|
35
|
35
91594-SR3-J32 Clamp fFUEL PIPE (SANOU) |
91594-SR3-J32 |
US $5.05 |
||
|
36
|
36
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) |
91598-SR3-J32 |
US $5.54 |
||
|
37
|
37
91599-SV4-003 Clamp aFUEL PIPE |
91599-SV4-003 |
US $5.60 |
||
|
38
|
38
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
39
|
39
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
40
|
40
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
41
|
41
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
42
|
42
95001-553-806-0
Tube
|
95001-553-806-0 |
— | ||
|
43
|
43
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
44
|
44
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
45
|
45
95003-230-266-0 TubeVINYL, 8X12X260 (95003-23001-60M) |
95003-230-266-0 |
US $1.63 |
||
|
46
|
46
95003-400-246-0 TubeVINYL, 12X16X240 (95003-40001-60M) |
95003-400-246-0 |
US $2.66 |
||
|
47
|
47
90201-PD1-000 Nut aSEALING, 12MM |
90201-PD1-000 |
from US $2.15 |
