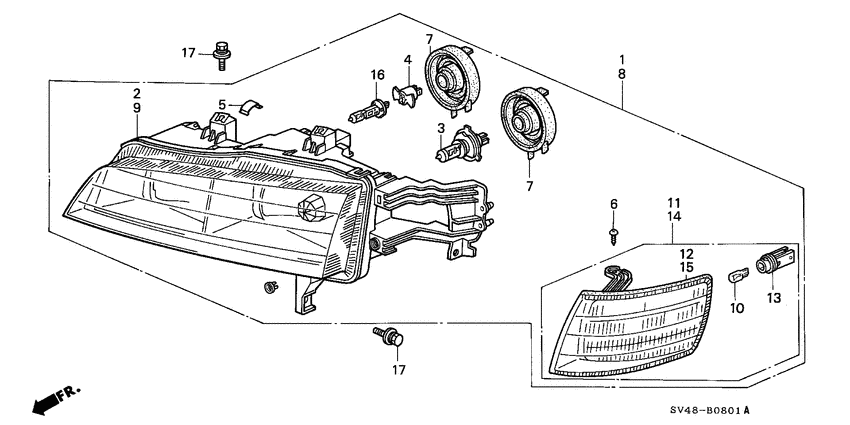

Headlight (2) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-SV4-J02
Headlight assy
|
33100-SV4-J02 |
— | ||
|
2
|
2
33103-SV4-J01
Headlight unit
|
33103-SV4-J01 |
— | ||
|
3
|
3
33115-SM4-003 Bulb |
33115-SM4-003 |
US $25.60 |
||
| replacement | |||||
|
3
|
3
33115-SV4-G01 BulbHEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
33115-SV4-G01 |
US $27.20 |
||
|
3
|
3
33115-SV4-003
Bulb
|
33115-SV4-003 |
— | ||
|
3
|
3
33115-SV4-G01 BulbHEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
33115-SV4-G01 |
US $27.20 |
||
|
3
|
3
33115-SM3-003
Bulb
|
33115-SM3-003 |
— | ||
| replacement | |||||
|
3
|
3
33115-SV4-G01 BulbHEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
33115-SV4-G01 |
US $27.20 |
||
|
4
|
4
33116-SD4-961 SocketBULB (OSRAM) (HALOGEN) |
33116-SD4-961 |
US $11.45 |
||
|
5
|
5
33117-SM4-003 ClipLENS HOLDER |
33117-SM4-003 |
US $2.10 |
||
|
6
|
6
33122-SM4-003
Screw
|
33122-SM4-003 |
— | ||
|
7
|
7
33126-SV4-003 CoverRUBBER |
33126-SV4-003 |
from US $16.83 |
||
|
8
|
8
33150-SV4-J02
Headlight assy
|
33150-SV4-J02 |
— | ||
|
9
|
9
33153-SV4-J01 Headlight unitL. |
33153-SV4-J01 |
US $453.12 |
||
|
10
|
10
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
11
|
11
34300-SV4-J02
Light assy
|
34300-SV4-J02 |
— | ||
|
12
|
12
34301-SV4-J02
Lamp unit
|
34301-SV4-J02 |
— | ||
|
13
|
13
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
14
|
14
34350-SV4-J02
Light assy
|
34350-SV4-J02 |
— | ||
|
15
|
15
35351-SV4-J02
Lamp unit
|
35351-SV4-J02 |
— | ||
|
16
|
16
34901-671-631 BulbHEADLIGHT (12V 55W H1) (OSRAM/PHILIPS) |
34901-671-631 |
US $24.75 |
||
|
17
|
17
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
