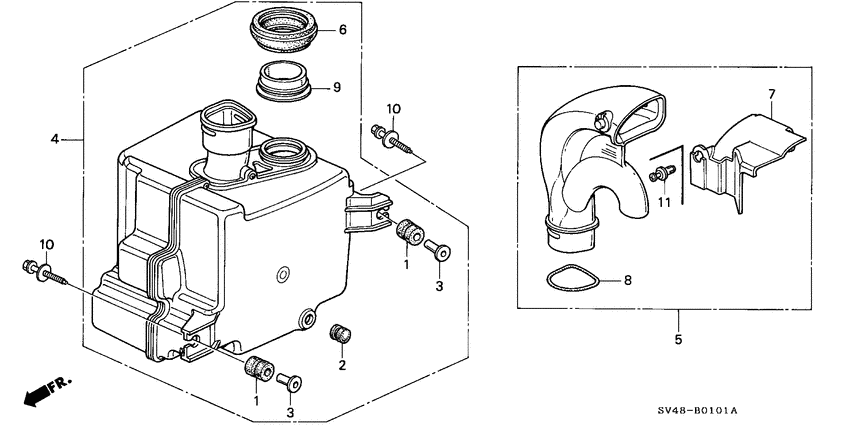

Resonator chamber Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
1
|
1
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
2
|
2
17213-PV0-000 RubberAIR CLEANER CASE MOUNTING |
17213-PV0-000 |
US $2.10 |
||
|
3
|
3
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
4
|
4
17230-P0A-000
Chamber assy
|
17230-P0A-000 |
— | ||
|
5
|
5
17243-P0F-000
Tube assy. b
|
17243-P0F-000 |
— | ||
|
6
|
6
17244-P0A-000
Rubber
|
17244-P0A-000 |
— | ||
|
7
|
7
17245-P0A-000
Cover
|
17245-P0A-000 |
— | ||
|
8
|
8
17246-P0A-A00 RingSEAL |
17246-P0A-A00 |
US $2.94 |
||
|
9
|
9
17247-P0A-000
Pipe
|
17247-P0A-000 |
— | ||
|
10
|
10
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $2.52 |
||
