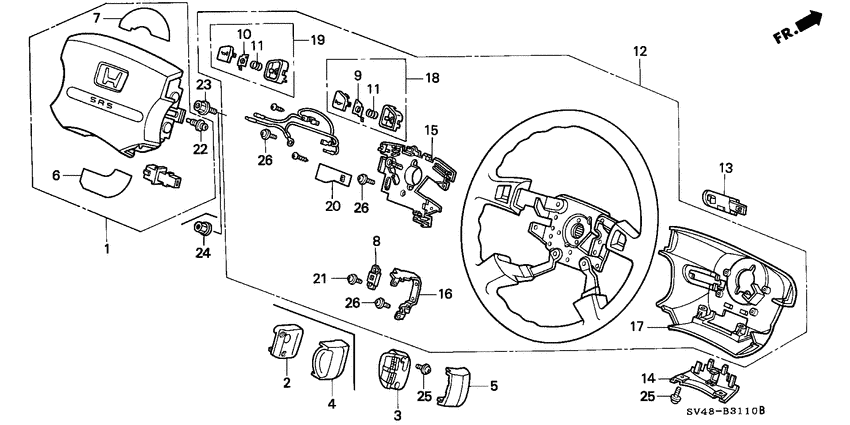

Steering wheel (SRS) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06770-SV4-A92ZA
Module kit
|
06770-SV4-A92ZA |
— | ||
|
2
|
2
36770-SM4-A31
Lid
|
36770-SM4-A31 |
— | ||
|
4
|
4
36771-SM4-A21
Cover
|
36771-SM4-A21 |
— | ||
|
6
|
6
77804-SP0-A80 LabelDRIVER MODULE WARNING |
77804-SP0-A80 |
US $3.50 |
||
|
7
|
7
77894-SP0-A80 LabelDRIVER MODULE DANGER |
77894-SP0-A80 |
US $3.36 |
||
|
8
|
8
77967-SL4-N81
Bracket
|
77967-SL4-N81 |
— | ||
|
9
|
9
78506-SM5-A81
Plate
|
78506-SM5-A81 |
— | ||
|
10
|
10
78507-SM5-A81
Plate
|
78507-SM5-A81 |
— | ||
|
11
|
11
78508-SM5-A81
Spring
|
78508-SM5-A81 |
— | ||
|
12
|
12
78510-SM5-G83ZA
Wheel comp.
0C100252 - |
78510-SM5-G83ZA |
— | ||
|
12
|
12
78510-SM5-G82ZA
Wheel comp.
00000000 - 0C100251 |
78510-SM5-G82ZA |
— | ||
|
13
|
13
78514-SM5-A81ZA
Cap b
|
78514-SM5-A81ZA |
— | ||
|
14
|
14
78515-SM5-A81ZA
Cap a
|
78515-SM5-A81ZA |
— | ||
|
15
|
15
78516-SM5-A81
Cover
|
78516-SM5-A81 |
— | ||
|
16
|
16
78517-SM5-A81
Plate
|
78517-SM5-A81 |
— | ||
|
17
|
17
78518-SM5-A81ZA CoverBODY *NH1L* |
78518-SM5-A81ZA |
US $16.51 |
||
|
18
|
18
78521-SM5-A81ZA
Button a
00000000 - 0C100251 |
78521-SM5-A81ZA |
— | ||
|
18
|
18
78521-SM5-A82ZA Button aR. HORN *NH1L* 0C100252 - |
78521-SM5-A82ZA |
US $11.48 |
||
|
19
|
19
78522-SM5-A82ZA Button aL. HORN *NH1L* 0C100252 - |
78522-SM5-A82ZA |
US $11.48 |
||
|
19
|
19
78522-SM5-A81ZA
Button a
00000000 - 0C100251 |
78522-SM5-A81ZA |
— | ||
|
20
|
20
78527-SD4-G80 Label aSTEERING WHEEL CAUTION |
78527-SD4-G80 |
US $1.96 |
||
|
21
|
21
90123-SR4-003
Screw-washer
|
90123-SR4-003 |
— | ||
|
22
|
22
90134-S04-A81 BoltHEX., 6X12 |
90134-S04-A81 |
US $1.95 |
||
|
24
|
24
90380-SB2-003 NutSELF-LOCK (OHASHI) |
90380-SB2-003 |
from US $2.28 |
||
|
25
|
25
93893-040-101-7 Screw-washer4X10 |
93893-040-101-7 |
from US $0.52 |
||
| replacement | |||||
|
25
|
25
93893-040-100-7 New Genuine Part |
93893-040-100-7 |
from US $0.52 |
||
|
26
|
26
93893-050-121-7 Screw-washer5X12 |
93893-050-121-7 |
from US $0.52 |
||
| replacement | |||||
|
26
|
26
93893-050-120-7 Screw-washer5X12 |
93893-050-120-7 |
from US $0.52 |
||
