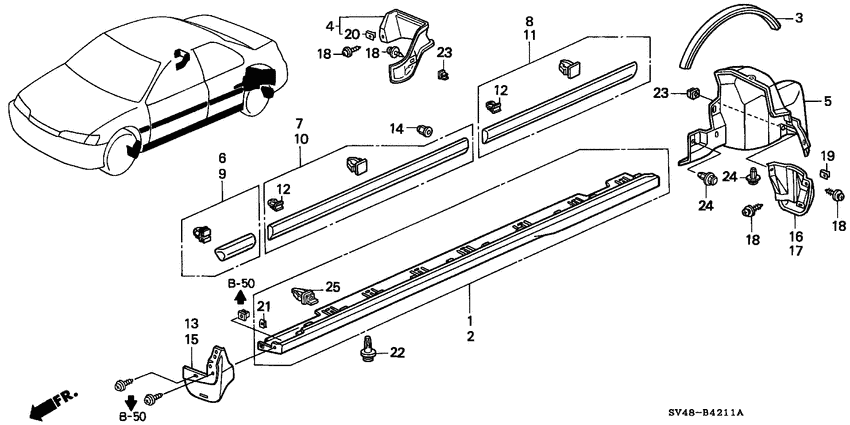

Protector Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71800-SV4-000
Garnish assy
|
71800-SV4-000 |
— | ||
| replacement | |||||
|
1
|
1
71800-SV4-305
GARN ASSY R SIDE
|
71800-SV4-305 |
— | ||
|
2
|
2
71850-SV4-000
Garnish assy
|
71850-SV4-000 |
— | ||
| replacement | |||||
|
2
|
2
71850-SV4-305
Garnish assy
|
71850-SV4-305 |
— | ||
|
5
|
5
74559-SV4-000
Cover
|
74559-SV4-000 |
— | ||
|
6
|
6
75301-SV4-A21ZB
Protector comp
|
75301-SV4-A21ZB |
— | ||
|
6
|
6
75301-SV4-A21ZL
Protector comp
|
75301-SV4-A21ZL |
— | ||
|
6
|
6
75301-SV4-A21ZN
Protector comp
|
75301-SV4-A21ZN |
— | ||
|
6
|
6
75301-SV4-A21ZQ
Protector comp
|
75301-SV4-A21ZQ |
— | ||
|
6
|
6
75301-SV4-A21ZD
Protector comp
|
75301-SV4-A21ZD |
— | ||
|
6
|
6
75301-SV4-A21ZE
Protector comp
|
75301-SV4-A21ZE |
— | ||
|
7
|
7
75302-SV4-A21ZN
Protector comp
|
75302-SV4-A21ZN |
— | ||
|
7
|
7
75302-SV4-A21ZQ
Protector comp
|
75302-SV4-A21ZQ |
— | ||
|
7
|
7
75302-SV4-A21ZD
Protector comp
|
75302-SV4-A21ZD |
— | ||
|
7
|
7
75302-SV4-A21ZE
Protector comp
|
75302-SV4-A21ZE |
— | ||
|
7
|
7
75302-SV4-A21ZB
Protector comp
|
75302-SV4-A21ZB |
— | ||
|
7
|
7
75302-SV4-A21ZL
Protector comp
|
75302-SV4-A21ZL |
— | ||
|
8
|
8
75303-SV4-A21ZN
Protector comp
|
75303-SV4-A21ZN |
— | ||
|
8
|
8
75303-SV4-A21ZQ
Protector comp
|
75303-SV4-A21ZQ |
— | ||
|
8
|
8
75303-SV4-A21ZD
Protector comp
|
75303-SV4-A21ZD |
— | ||
|
8
|
8
75303-SV4-A21ZE
Protector comp
|
75303-SV4-A21ZE |
— | ||
|
8
|
8
75303-SV4-A21ZB
Protector comp
|
75303-SV4-A21ZB |
— | ||
|
8
|
8
75303-SV4-A21ZL
Protector comp
|
75303-SV4-A21ZL |
— | ||
|
9
|
9
75321-SV4-A21ZQ
Protector comp
|
75321-SV4-A21ZQ |
— | ||
|
9
|
9
75321-SV4-A21ZD
Protector comp
|
75321-SV4-A21ZD |
— | ||
|
9
|
9
75321-SV4-A21ZE
Protector comp
|
75321-SV4-A21ZE |
— | ||
|
9
|
9
75321-SV4-A21ZB
Protector comp
|
75321-SV4-A21ZB |
— | ||
|
9
|
9
75321-SV4-A21ZL
Protector comp
|
75321-SV4-A21ZL |
— | ||
|
9
|
9
75321-SV4-A21ZN
Protector comp
|
75321-SV4-A21ZN |
— | ||
|
10
|
10
75322-SV4-A21ZN
Protector comp
|
75322-SV4-A21ZN |
— | ||
|
10
|
10
75322-SV4-A21ZQ
Protector comp
|
75322-SV4-A21ZQ |
— | ||
|
10
|
10
75322-SV4-A21ZD
Protector comp
|
75322-SV4-A21ZD |
— | ||
|
10
|
10
75322-SV4-A21ZE
Protector comp
|
75322-SV4-A21ZE |
— | ||
|
10
|
10
75322-SV4-A21ZB
Protector comp
|
75322-SV4-A21ZB |
— | ||
|
10
|
10
75322-SV4-A21ZL
Protector comp
|
75322-SV4-A21ZL |
— | ||
|
11
|
11
75323-SV4-A21ZD
Protector comp
|
75323-SV4-A21ZD |
— | ||
|
11
|
11
75323-SV4-A21ZE
Protector comp
|
75323-SV4-A21ZE |
— | ||
|
11
|
11
75323-SV4-A21ZB
Protector comp
|
75323-SV4-A21ZB |
— | ||
|
11
|
11
75323-SV4-A21ZL
Protector comp
|
75323-SV4-A21ZL |
— | ||
|
11
|
11
75323-SV4-A21ZN
Protector comp
|
75323-SV4-A21ZN |
— | ||
|
11
|
11
75323-SV4-A21ZQ
Protector comp
|
75323-SV4-A21ZQ |
— | ||
|
12
|
12
75329-SH4-013 Clip bMOLDING |
75329-SH4-013 |
US $1.96 |
||
|
13
|
13
75800-SV4-003
Mudguard
|
75800-SV4-003 |
— | ||
|
14
|
14
75807-671-010 NutSIDE PROTECTOR (BLACK) |
75807-671-010 |
US $3.08 |
||
|
15
|
15
75810-SV4-003
Mudguard
|
75810-SV4-003 |
— | ||
|
16
|
16
75820-SV4-Y01
Mudguard
|
75820-SV4-Y01 |
— | ||
|
17
|
17
75830-SV4-Y01
Mudguard
|
75830-SV4-Y01 |
— | ||
|
18
|
18
90114-SE0-000 ScrewTAPPING, 5X20 |
90114-SE0-000 |
from US $1.78 |
||
|
19
|
19
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
from US $2.22 |
||
|
21
|
21
90331-SD5-003 NutSPRING, 5MM |
90331-SD5-003 |
from US $2 |
||
|
22
|
22
90505-SM4-003 ClipGARNISH |
90505-SM4-003 |
US $2.89 |
||
| replacement | |||||
|
22
|
22
90505-SX0-003 ClipGARNISH |
90505-SX0-003 |
US $2.89 |
||
|
23
|
23
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
24
|
24
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $2.44 |
||
|
25
|
25
91513-SM4-000 ClipSIDE SILL UPPER GARNISH |
91513-SM4-000 |
from US $2.38 |
||
