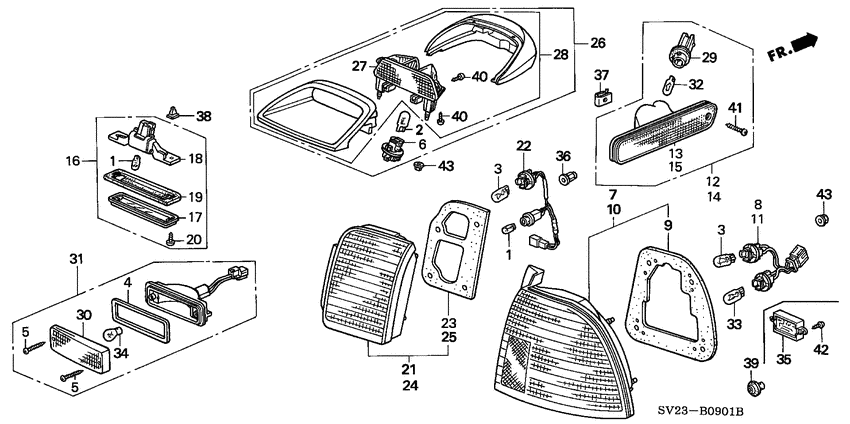

Taillight (2) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 2
- grade
- LX
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34901-SB0-671 Bulb12V 5W 3CP) (STANLEY |
34901-SB0-671 |
from US $1.82 |
||
|
2
|
2
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.52 |
||
|
3
|
3
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.52 |
||
|
6
|
6
33304-SV4-A01
Socket comp.
|
33304-SV4-A01 |
— | ||
|
7
|
7
33501-SV4-A03
Lamp unit
|
33501-SV4-A03 |
— | ||
|
8
|
8
33502-SV4-A03
Socket comp.
|
33502-SV4-A03 |
— | ||
|
9
|
9
33503-SV4-A02
Gasket
|
33503-SV4-A02 |
— | ||
|
10
|
10
33551-SV4-A03
Lamp unit
|
33551-SV4-A03 |
— | ||
|
11
|
11
33552-SV4-A04
Socket comp.
|
33552-SV4-A04 |
— | ||
|
12
|
12
33650-SV4-A01
Light assy
|
33650-SV4-A01 |
— | ||
|
13
|
13
33651-SV4-A01 Lamp compR. |
33651-SV4-A01 |
US $23.30 |
||
|
14
|
14
33655-SV4-A01
Light assy
|
33655-SV4-A01 |
— | ||
|
15
|
15
33656-SV4-A01
Lamp comp
|
33656-SV4-A01 |
— | ||
|
16
|
16
34100-SV4-A01
Light assy
|
34100-SV4-A01 |
— | ||
|
17
|
17
34101-SS0-003
Lens
|
34101-SS0-003 |
— | ||
|
18
|
18
34102-SS0-003
Housing comp
|
34102-SS0-003 |
— | ||
|
19
|
19
34103-SS0-003
Seal
|
34103-SS0-003 |
— | ||
|
20
|
20
34104-SE3-A01
Screw
|
34104-SE3-A01 |
— | ||
|
21
|
21
34151-SV4-A01
Lamp comp
|
34151-SV4-A01 |
— | ||
|
22
|
22
34152-SV4-A01
Socket comp.
|
34152-SV4-A01 |
— | ||
|
23
|
23
34153-SV4-A01
Gasket
|
34153-SV4-A01 |
— | ||
|
24
|
24
34156-SV4-A01
Lamp comp
|
34156-SV4-A01 |
— | ||
|
25
|
25
34158-SV4-A01
Gasket
|
34158-SV4-A01 |
— | ||
|
26
|
26
34270-SV2-A01ZE
Light assy
|
34270-SV2-A01ZE |
— | ||
|
26
|
26
34270-SV2-A01ZB
Light assy
|
34270-SV2-A01ZB |
— | ||
|
26
|
26
34270-SV2-A01ZA
Light assy
|
34270-SV2-A01ZA |
— | ||
|
27
|
27
34271-SV4-A01
Reflector comp.
|
34271-SV4-A01 |
— | ||
|
28
|
28
34274-SV2-A01ZB
Lamp unit *nh178l*
|
34274-SV2-A01ZB |
— | ||
|
28
|
28
34274-SV2-A01ZA
Lamp unit *g38l*
|
34274-SV2-A01ZA |
— | ||
|
28
|
28
34274-SV2-A01ZE
Lamp unit *yr169l*
|
34274-SV2-A01ZE |
— | ||
|
29
|
29
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
32
|
32
34901-SB0-671 Bulb12V 5W 3CP) (STANLEY |
34901-SB0-671 |
from US $1.82 |
||
|
33
|
33
34906-ST5-003 Bulb12V 21W/5W) (STANLEY |
34906-ST5-003 |
from US $2.24 |
||
|
35
|
35
37540-SM4-003 SensorSTOP LAMP FAILURE |
37540-SM4-003 |
US $51.71 |
||
|
36
|
36
90301-SE0-902
Nut
|
90301-SE0-902 |
— | ||
|
37
|
37
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
from US $2.22 |
||
|
38
|
38
90521-SS0-003 GrommetSPECIAL SCREW (M4) (YELLOW) |
90521-SS0-003 |
US $1.82 |
||
|
39
|
39
90665-SS0-003 GrommetRR. COMBINATION |
90665-SS0-003 |
US $1.54 |
||
|
40
|
40
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
41
|
41
93901-446G0 ScrewTAPPING, 4X25 |
93901-446G0 |
US $0.67 |
||
|
42
|
42
93911-14210 ScrewTAPPING, 4X12 |
93911-14210 |
US $0.37 |
||
|
43
|
43
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
