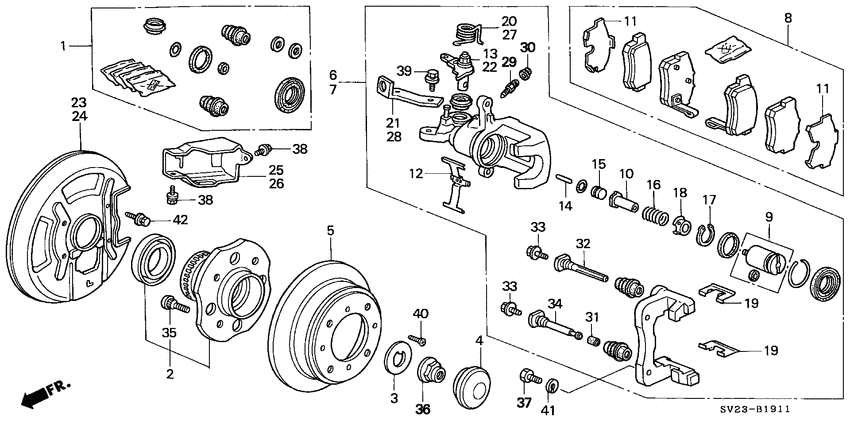

Rear brake (DISK; 2; AKEBONO) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F22B
- transmission
- 5MT
- Number of doors
- 2
- grade
- EX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01473-SY8-010 Caliper setRR. |
01473-SY8-010 |
US $24.45 |
||
|
2
|
2
42200-SV1-J51 Bearing assyRR. HUB UNIT |
42200-SV1-J51 |
US $241.92 |
||
|
3
|
3
42324-SB2-020
Washer
|
42324-SB2-020 |
— | ||
|
4
|
4
42326-SG0-000
Cap
|
42326-SG0-000 |
— | ||
|
5
|
5
42510-SV1-A00 DiskRR. BRAKE |
42510-SV1-A00 |
US $158.72 |
||
|
6
|
6
43018-SY8-A01 Caliper sub assy.R. RR. |
43018-SY8-A01 |
US $285.44 |
||
|
7
|
7
43019-SY8-A01 Caliper sub assy.L. RR. |
43019-SY8-A01 |
US $285.44 |
||
|
8
|
8
43022-SY8-A00 Pad setRR. |
43022-SY8-A00 |
US $96 |
||
|
9
|
9
43215-SY8-A01 Piston assy. |
43215-SY8-A01 |
US $36.86 |
||
|
10
|
10
43217-SY8-A01
Sleeve
|
43217-SY8-A01 |
— | ||
|
11
|
11
43224-SY8-A01
Shim
|
43224-SY8-A01 |
— | ||
|
12
|
12
43227-SY8-A01
Spring
|
43227-SY8-A01 |
— | ||
|
13
|
13
43228-SY8-A02
Lever
|
43228-SY8-A02 |
— | ||
|
14
|
14
43229-SY8-A02 Rod |
43229-SY8-A02 |
US $3.64 |
||
|
15
|
15
43233-SY8-A01 Connector |
43233-SY8-A01 |
US $13.72 |
||
|
16
|
16
43237-SY8-A01
Spring a
|
43237-SY8-A01 |
— | ||
|
17
|
17
43238-SY8-A01 RingRETAINING |
43238-SY8-A01 |
US $5.04 |
||
|
18
|
18
43241-SY8-A01 GuideSPRING |
43241-SY8-A01 |
US $5.04 |
||
|
19
|
19
43244-SY8-A01 Retainer |
43244-SY8-A01 |
US $5.74 |
||
|
20
|
20
43246-SY8-A02
Spring
|
43246-SY8-A02 |
— | ||
|
21
|
21
43247-SY8-A01
Arm
|
43247-SY8-A01 |
— | ||
|
22
|
22
43248-SY8-A02
Lever
|
43248-SY8-A02 |
— | ||
|
23
|
23
43253-SV1-950
Guard
|
43253-SV1-950 |
— | ||
|
24
|
24
43254-SV1-950
Guard
|
43254-SV1-950 |
— | ||
|
25
|
25
43255-SY8-A00
Protector
|
43255-SY8-A00 |
— | ||
|
26
|
26
43256-SY8-A00
Protector
|
43256-SY8-A00 |
— | ||
|
27
|
27
43266-SY8-A02
Spring
|
43266-SY8-A02 |
— | ||
|
28
|
28
43267-SY8-A01
Arm
|
43267-SY8-A01 |
— | ||
|
29
|
29
45215-671-672 ScrewBLEEDER |
45215-671-672 |
US $9.24 |
||
|
30
|
30
45219-671-672 CapBLEEDER SCREW |
45219-671-672 |
from US $2.73 |
||
|
31
|
31
45233-S04-A01 Bush |
45233-S04-A01 |
from US $2.10 |
||
|
32
|
32
45235-S04-A01 Pin a |
45235-S04-A01 |
US $10.08 |
||
|
33
|
33
45240-S01-A01 Bolt |
45240-S01-A01 |
from US $2.29 |
||
|
34
|
34
45262-S04-A01 Pin b |
45262-S04-A01 |
US $10.08 |
||
|
35
|
35
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
36
|
36
90305-692-010 Nut |
90305-692-010 |
US $8.14 |
||
|
37
|
37
92101-10025-0H
Bolt
|
92101-10025-0H |
— | ||
|
38
|
38
93403-060-100-8 Bolt-washer6X10 |
93403-060-100-8 |
from US $0.59 |
||
|
39
|
39
93412-100-250-8 Bolt-washer10X25 |
93412-100-250-8 |
US $0.81 |
||
|
40
|
40
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.49 |
||
|
41
|
41
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
42
|
42
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
