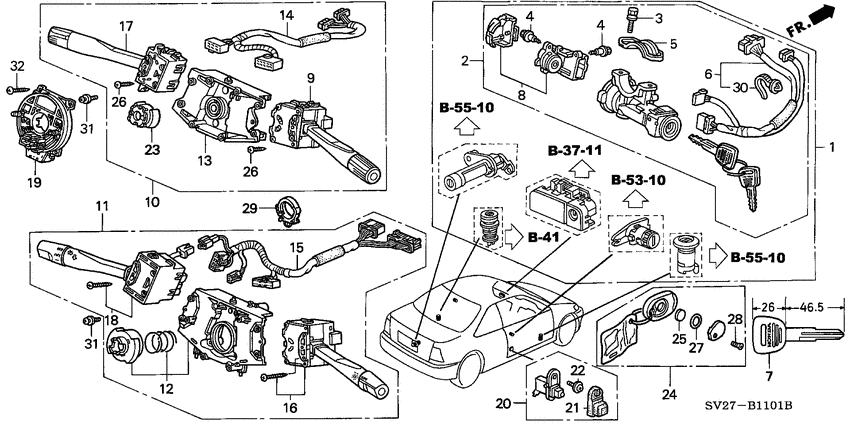

Combination switch (-'95; KE) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0ILS
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06350-SV2-E10ZA
Cylinder set
|
06350-SV2-E10ZA |
— | ||
|
2
|
2
35100-SV2-E11
Lock assy
|
35100-SV2-E11 |
— | ||
|
3
|
3
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
4
|
4
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
5
|
5
35108-SV4-003
Holder
|
35108-SV4-003 |
— | ||
|
6
|
6
35110-SV2-E01
Harness comp.
|
35110-SV2-E01 |
— | ||
|
7
|
7
35114-SV4-Q01
Key
|
35114-SV4-Q01 |
— | ||
|
7
|
7
35113-SV4-Q01
Key
|
35113-SV4-Q01 |
— | ||
|
8
|
8
35130-SV4-003
Switch comp
|
35130-SV4-003 |
— | ||
|
9
|
9
35255-SV4-E11
Switch assy
|
35255-SV4-E11 |
— | ||
|
10
|
10
35250-SV2-E11
Switch assy
|
35250-SV2-E11 |
— | ||
|
13
|
13
35251-SV4-901
Body
|
35251-SV4-901 |
— | ||
|
14
|
14
35254-SV2-E11
Cord assy
|
35254-SV2-E11 |
— | ||
|
17
|
17
35256-SM4-E02
Switch assy
|
35256-SM4-E02 |
— | ||
|
19
|
19
35257-SM4-013
Ring assy
|
35257-SM4-013 |
— | ||
|
20
|
20
35400-SL4-003
Switch assy
|
35400-SL4-003 |
— | ||
|
21
|
21
35401-SL4-003 CoverDOOR SWITCH |
35401-SL4-003 |
from US $4.62 |
||
|
22
|
22
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
23
|
23
53271-SM4-003
Cam
|
53271-SM4-003 |
— | ||
|
26
|
26
90109-SS0-901 ScrewTAPPING, 3X16 |
90109-SS0-901 |
US $1.54 |
||
|
30
|
30
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
31
|
31
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
32
|
32
93901-32320 ScrewTAPPING, 3X12 |
93901-32320 |
from US $0.37 |
