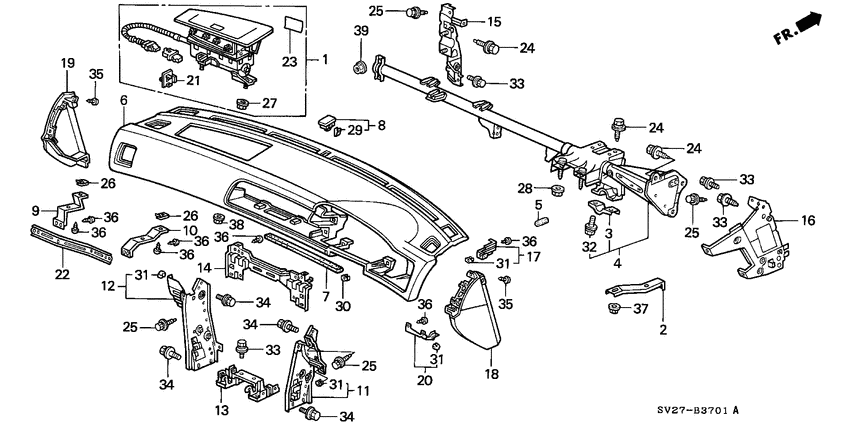

Instrument panel (RH) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0ILS
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
46597-SV4-000
Stay assy
|
46597-SV4-000 |
— | ||
|
3
|
3
53216-SM4-010
Holder b
|
53216-SM4-010 |
— | ||
|
4
|
4
61160-SV4-000ZZ
Beam comp
|
61160-SV4-000ZZ |
— | ||
|
5
|
5
66844-SA7-000 CapINSTRUMENT PANEL STAY |
66844-SA7-000 |
US $4.07 |
||
|
6
|
6
77102-SV1-J00ZB
Pad
|
77102-SV1-J00ZB |
— | ||
|
8
|
8
77104-SV4-Q00ZA
Lid
|
77104-SV4-Q00ZA |
— | ||
|
11
|
11
77111-SV4-003ZZ
Bracket comp.
|
77111-SV4-003ZZ |
— | ||
|
12
|
12
77112-SV4-003ZZ Bracket comp.INSTRUMENT CENTER PASSENGER SIDE |
77112-SV4-003ZZ |
US $45.82 |
||
|
13
|
13
77113-SV4-003ZZ
Bracket
|
77113-SV4-003ZZ |
— | ||
|
14
|
14
77116-SV1-E00
Bracket
|
77116-SV1-E00 |
— | ||
|
15
|
15
77140-SV4-003ZZ
Bracket
|
77140-SV4-003ZZ |
— | ||
|
16
|
16
77145-SV4-003ZZ
Bracket
|
77145-SV4-003ZZ |
— | ||
|
17
|
17
77204-SV4-000
Bracket
|
77204-SV4-000 |
— | ||
|
18
|
18
77210-SV4-000ZB
Cover
|
77210-SV4-000ZB |
— | ||
|
19
|
19
77215-SV4-000ZB CoverINSTRUMENT PASSENGER SIDE *NH178L* |
77215-SV4-000ZB |
US $18.94 |
||
|
20
|
20
77306-SV4-000
Bracket
|
77306-SV4-000 |
— | ||
|
24
|
24
90104-SV4-000 Bolt-washer8X25 |
90104-SV4-000 |
US $2.19 |
||
|
25
|
25
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
28
|
28
90361-SM4-003 NutFLANGE, 8MM |
90361-SM4-003 |
US $1.33 |
||
| replacement | |||||
|
28
|
28
90361-SR3-000 NutFLANGE, 8MM |
90361-SR3-000 |
from US $0.99 |
||
|
29
|
29
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
30
|
30
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
31
|
31
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
32
|
32
93403-100-200-8 Bolt-washer10X20 |
93403-100-200-8 |
from US $0.81 |
||
|
33
|
33
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
34
|
34
93405-080-200-8 Bolt-washer8X20 |
93405-080-200-8 |
from US $0.74 |
||
|
35
|
35
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
36
|
36
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
37
|
37
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
39
|
39
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
