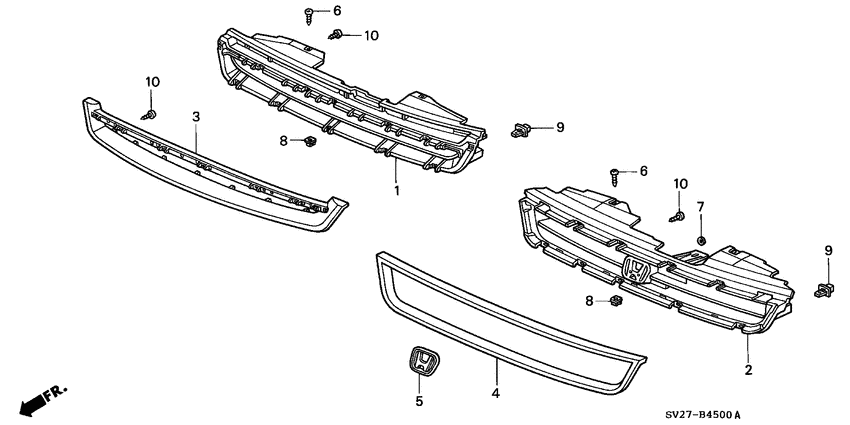

Front grille Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0IES
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75101-SV4-003
Grille
|
75101-SV4-003 |
— | ||
|
3
|
3
75120-SV4-V51ZD
Molding
|
75120-SV4-V51ZD |
— | ||
|
3
|
3
75120-SV4-V51ZG MoldingFR. GRILLE *R78P* |
75120-SV4-V51ZG |
US $126.72 |
||
|
3
|
3
75120-SV4-V51ZA
Molding
|
75120-SV4-V51ZA |
— | ||
|
3
|
3
75120-SV4-V51ZC MoldingFR. GRILLE *G78P* |
75120-SV4-V51ZC |
US $126.72 |
||
|
3
|
3
75120-SV4-V51ZE
Molding
|
75120-SV4-V51ZE |
— | ||
|
3
|
3
75120-SV4-V51ZB
Molding
|
75120-SV4-V51ZB |
— | ||
|
6
|
6
90125-SM4-003 ScrewTAPPING, 5X16 |
90125-SM4-003 |
US $1.54 |
||
|
8
|
8
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
9
|
9
91578-SV4-003 ClipFR. GRILLE (B) |
91578-SV4-003 |
US $2.03 |
||
|
10
|
10
93903-423J0 ScrewTAPPING, 3X12 |
93903-423J0 |
US $0.67 |
